Individual development

Develop your individual slide

Develop your individual slide with us - from a unique modular system for various table functions, we manufacture your customised system together with you, optimally designed for your requirements. In the field of table extensions, our diversity is unbeatable. Our extension fittings are tailored to your load requirements and your price expectations.

  • Price sensitive steel frames with ball bearing slides
  • Exclusive steel systems with roller slides
  • High-end aluminum systems with mounted on ball bearings oder roller bearings

Our unique approach to pricing allows you to move between price-sensitive and state-of-the-art requirements in terms of construction and design. High-end aluminum ball and roller bearing systems, exclusive steel systems with roller extensions, and steel frames with proven ball bearing slides allow us to work in different price segments and enable us to individualize design with respect to your running requirements.

Our running units

Based running unit

  • proven technology
  • quiet and smooth running
  • price sensitive
  • durable and wear free

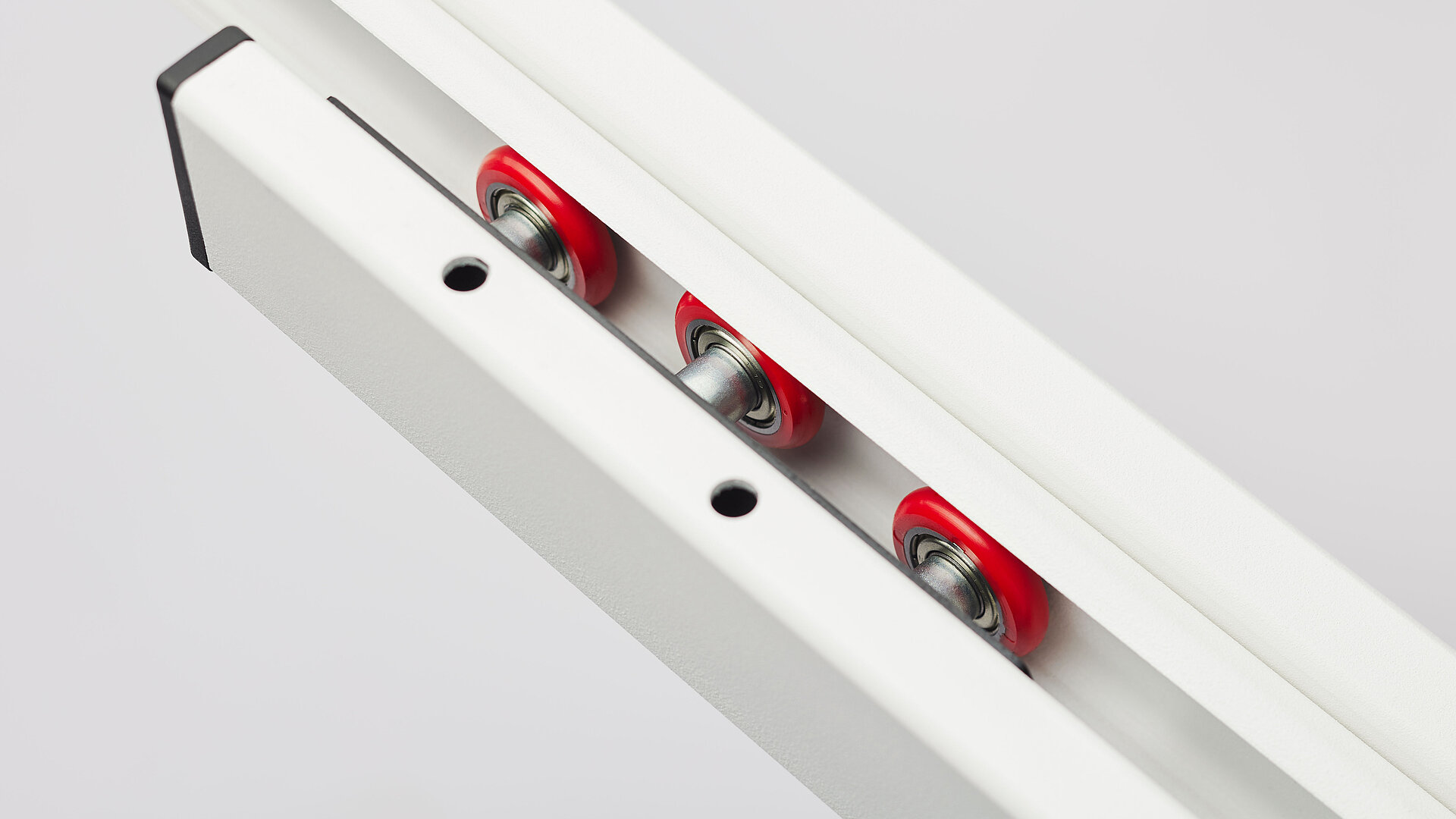

Based running unit (steel)

  • state of the art
  • Particularly smooth, consistent and easy running
  • durable and wear free
  • abrasion-resistant and impact-resistant
  • Low frictional resistance
  • ball bearing

Based running unit (aluminium)

  • Suitable for outdoor use
  • Particularly smooth, consistent and easy running
  • durable and wear free
  • abrasion-resistant and impact-resistant
  • Low frictional resistance
  • ball bearing

We design according to your table and load requirements

In the field of table extensions, our diversity is unbeatable. We offer the best solution for every table class and every load. Our extension fittings are tailored to your load requirements and your price expectations. Always before the aspect of a comfortable and safe opening and closing; everything with constant stability.

Starting with low overall heights, through overall heights as "light profile" with lower material input, up to standardized and height designs that can be planned to the centimeter, as with our" Kombi", we work together with you to develop your "made-to-measure extension system". Rounded cutting edges and precise profile geometries, for optimum handling and a high level of high security, are standard for us within the processing. For every extension requirement, we offer specific material thicknesses and materials with defined tensile strength.

With uniform surface loading, our standard steel pullouts range within the following load ranges:

  • 60 kg › material thickness used: 1.4 mm
  • 90 kg › material thickness used: 1.75 mm
  • 115 kg › material thickness used: 2.0 mm

In the aluminum sector, the material thickness is more flexible. Our goal here is to achieve maximum stability with the least possible amount of material. In combination with the appropriate overall height or special design techniques, such as "Alu 44 Universal", we also generate particularly high load capacities with quiet, uniform running performance. You will find detailed information in our tables on the product pages. Please contact us for more information.
