ALU LIGHT 55

For compact central foot tables

Benefits

Material

Aluminum – the slide system is available as a raw or anodized version. Precise profile geometries optimize the handling and ensure a high level of safety.

Slide

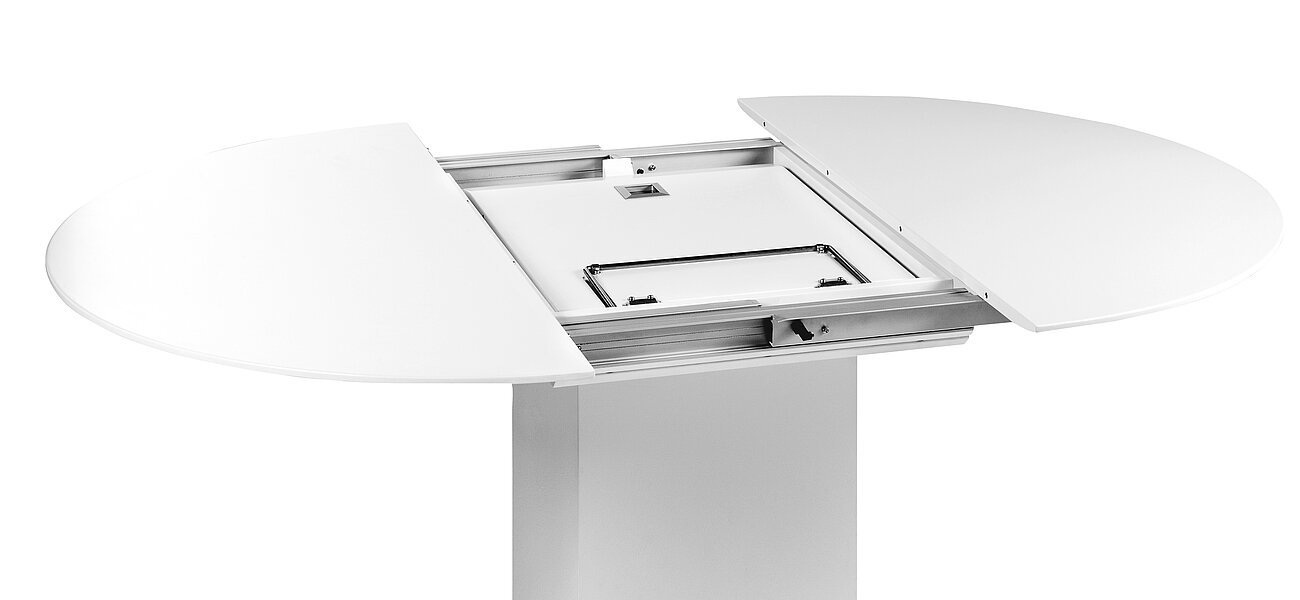

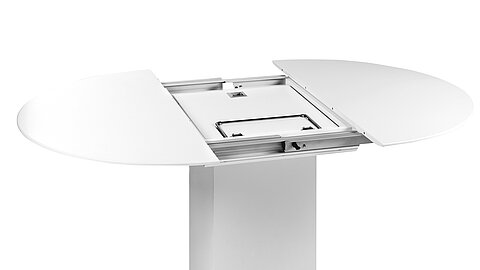

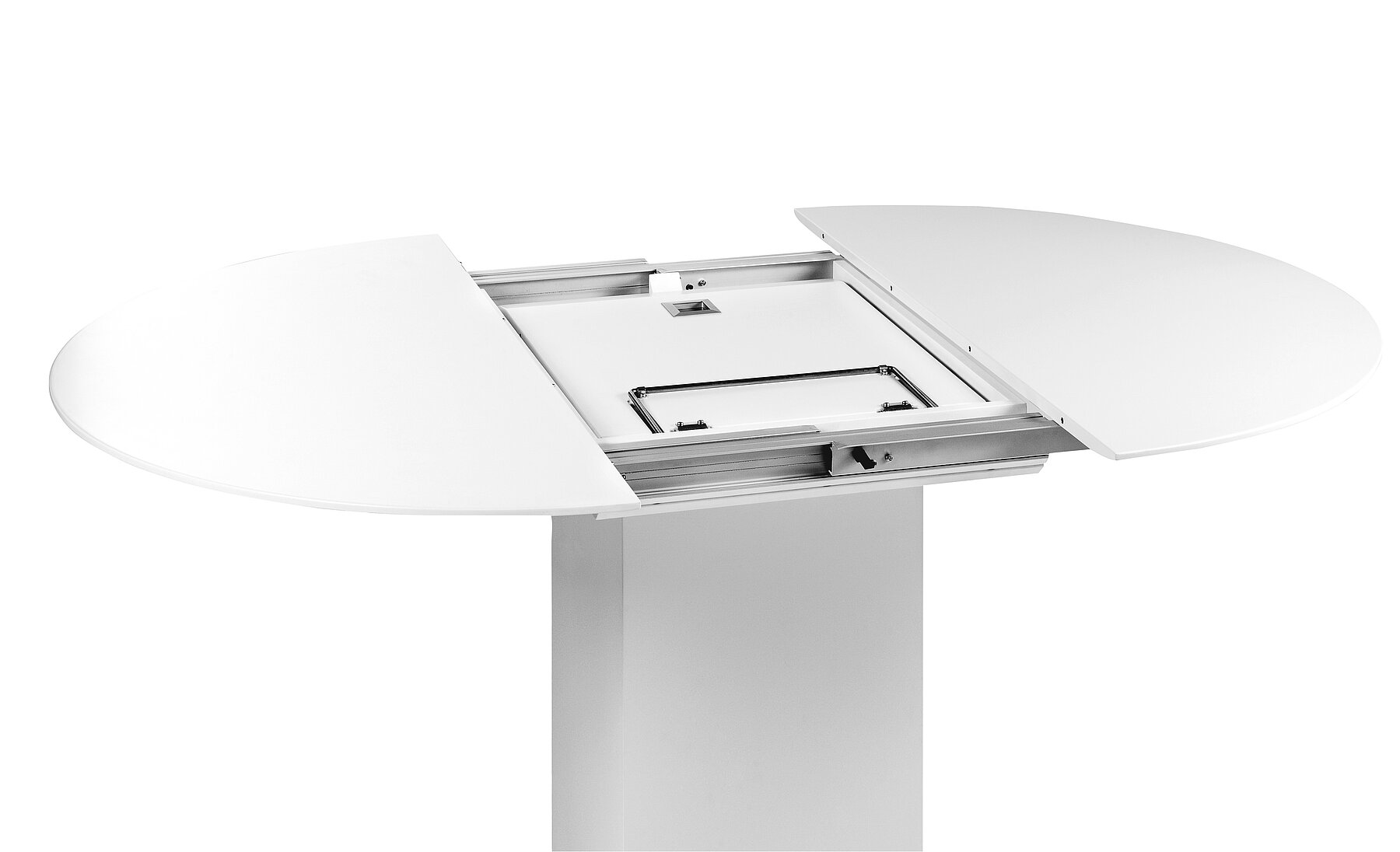

The ALU 55 LIGHT slide system combines clear design and a smooth running performance. It is perfectly suitable for round tables with diameters of 1,100 to 1,300 mm.

Load capacities

The ALU 55 LIGHT standard slides are dimensioned for up to 90 kg under a uniformly applied load. Loads are efficiently absorbed through the use of one direction of motion per movement direction. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Synchronous design

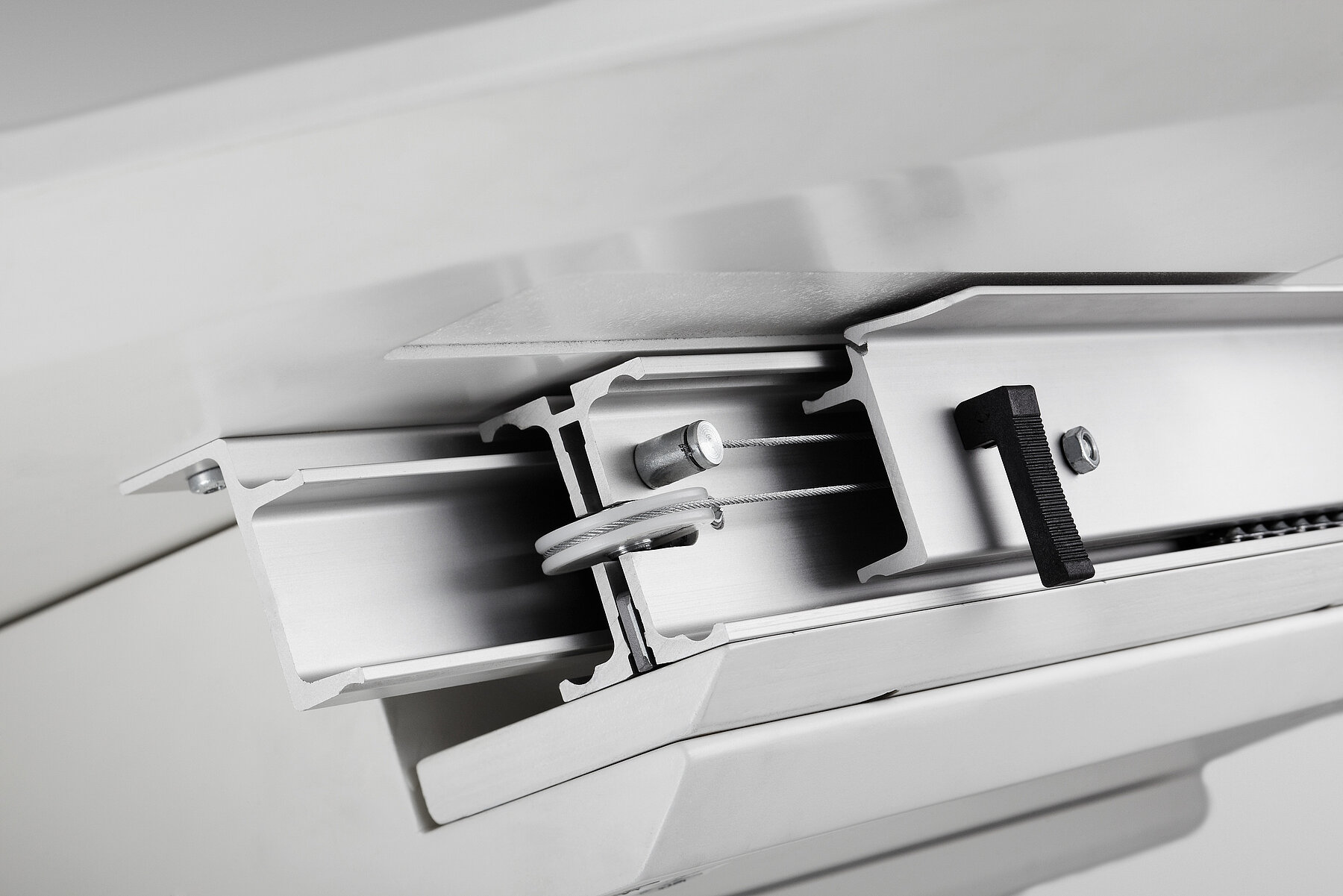

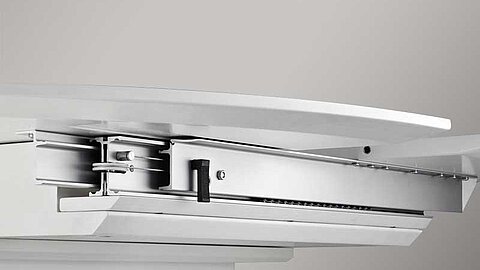

The ALU 55 LIGHT slide system is available in a synchronous design, a synchronous design with rope brake, or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: It can be combined with matching accessories such as the FM Folding mechanism or, for wooden frames, with the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2table insertsInstallation heightLoad capacity
55 Installation height
 xyz
A5L/580.H4580 mm1 x 500 mm50 mm90 kg
A5L/980.H4980 mm2 x 500 mm50 mm90 kg
A5L/1280.H41.280 mm3 x 500 mm50 mm90 kg

1) A5L = Alu 55 Light | A5L-S = synchronous | A5L-SB = synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

[Translate to English:] Bauhöhe 55

[Translate to English:] Auszugslängen

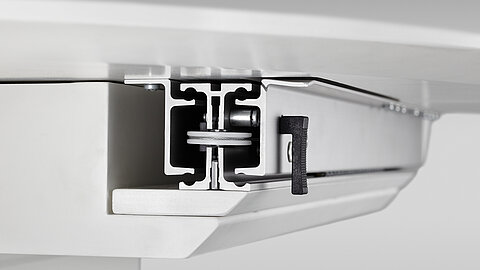

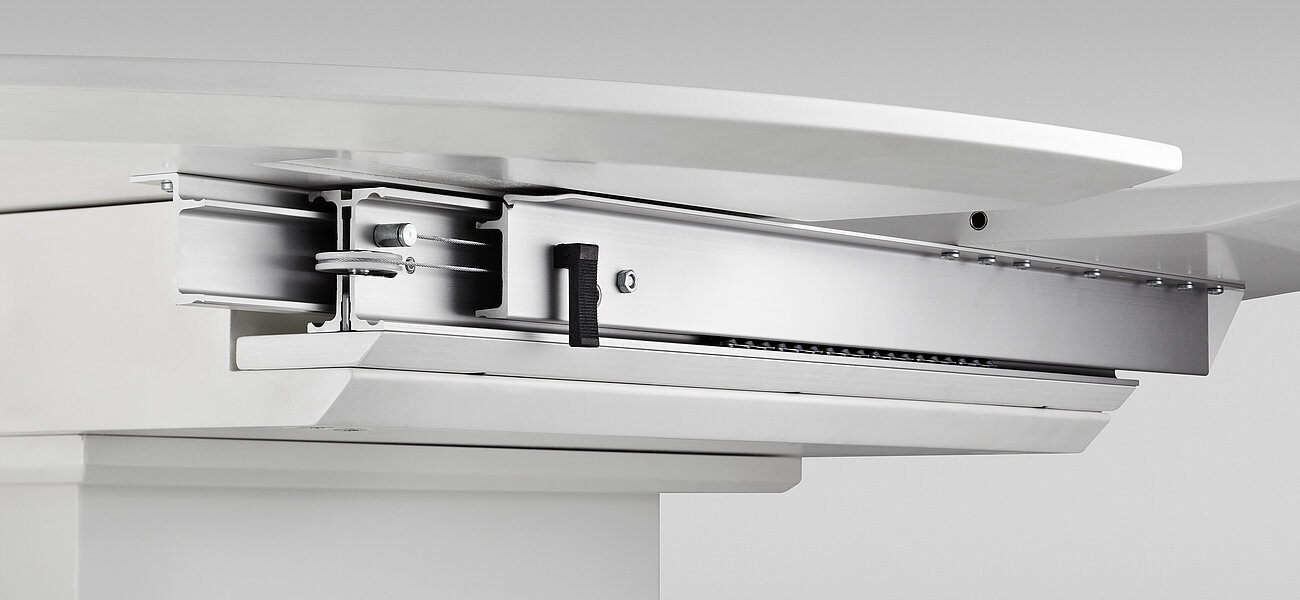

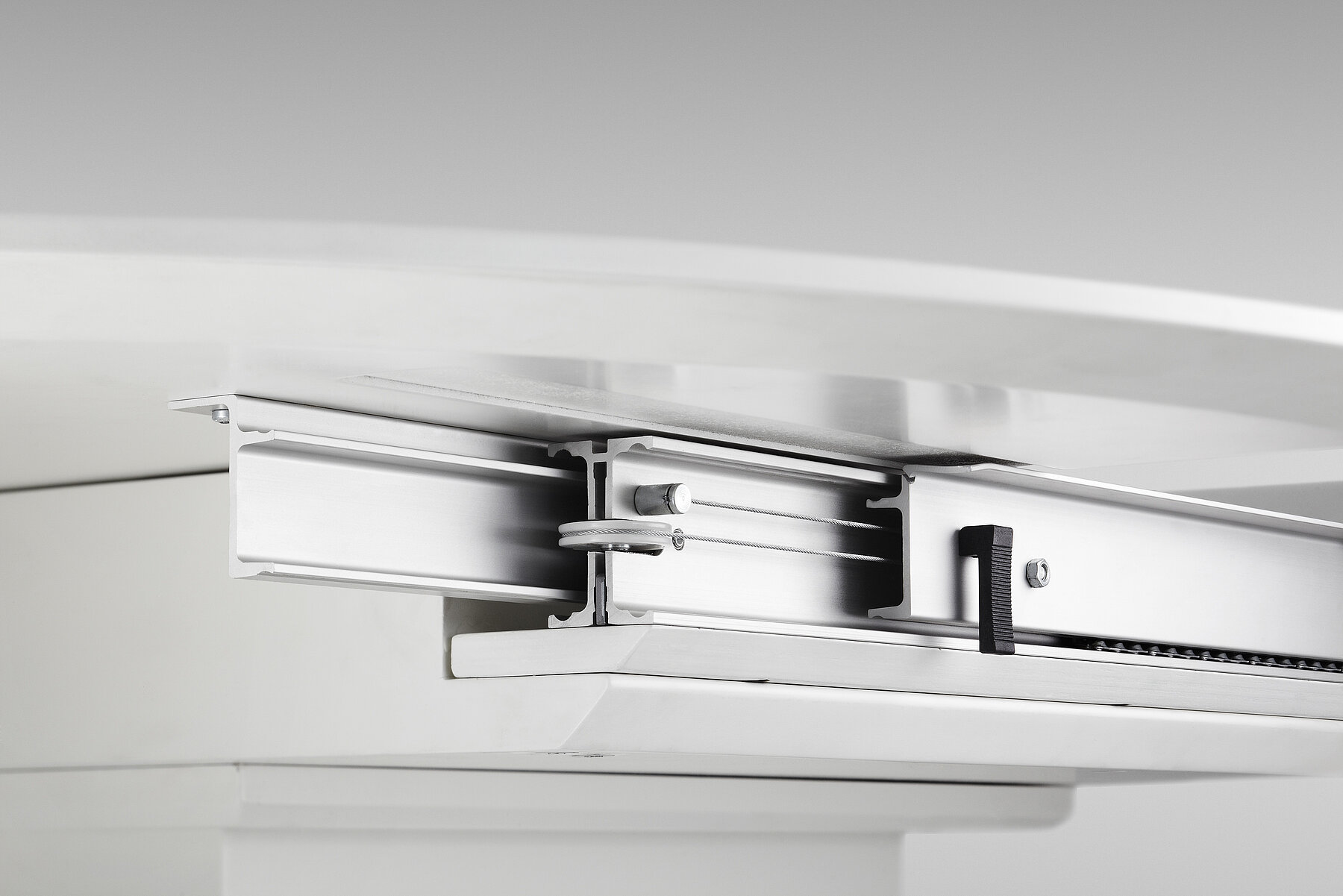

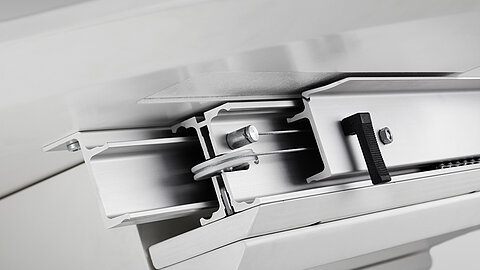

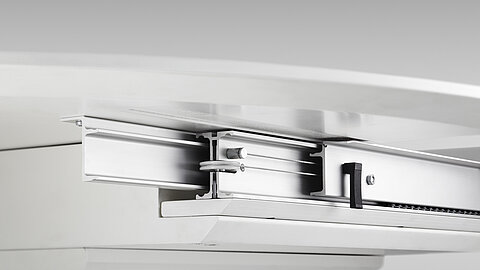

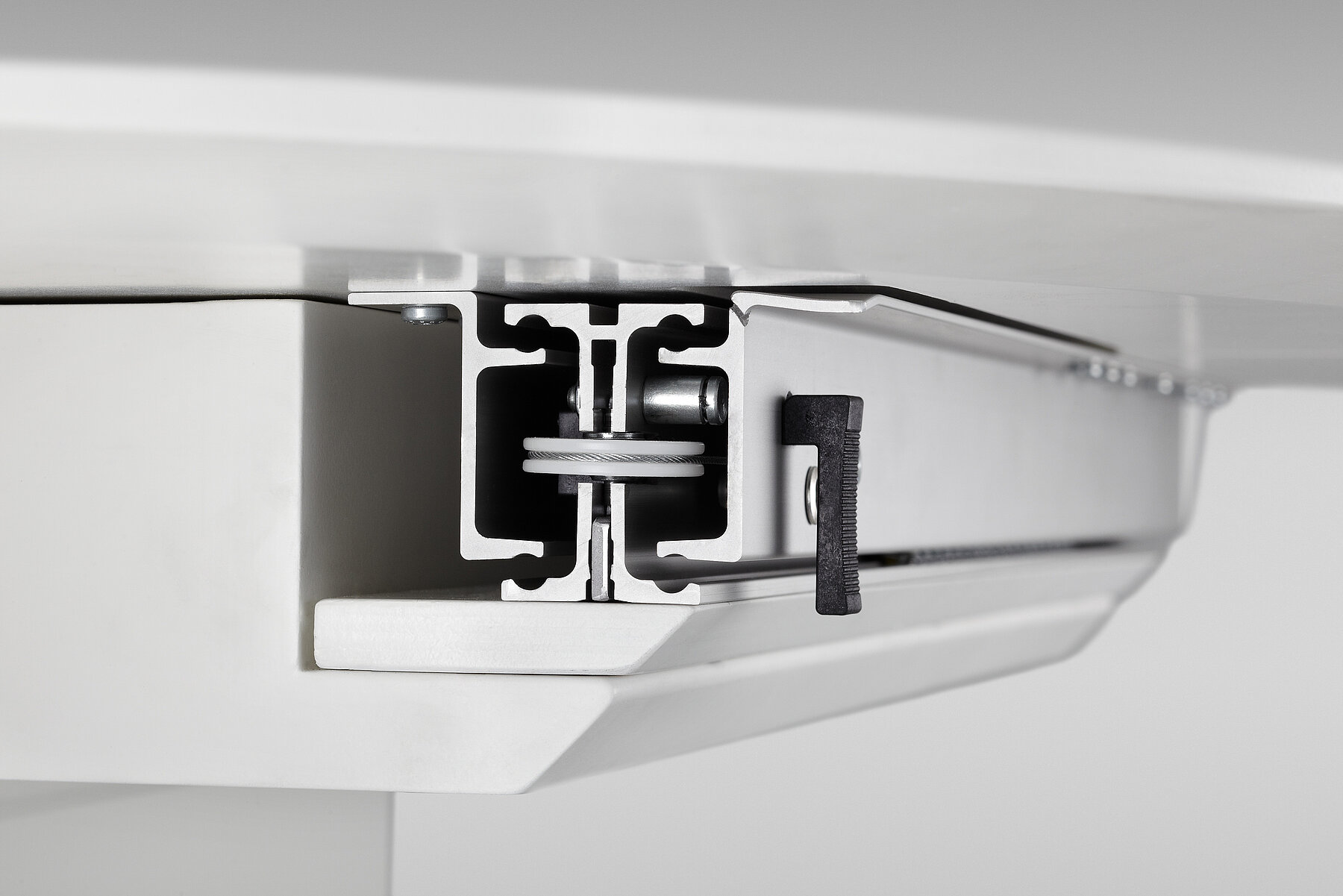

Product images
