ALU SLIDER 55

For tables with low installation height as top-against-frame

Benefits

Material

Aluminum – All profiles are available mill-finished or in various anodized colors. The precise profile geometry optimizes the handling and provides a high level of safety.

Load capacities

The ALU 55 SLIDER standard slides are designed for 90 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Central base unit

The ALU 55 SLIDER slide system is suitable for tables with a central base unit and bracket leg. The ALU 55 SLIDER thread positions for the connection to the substructure can be individually selected.

Outdoor

Outdoor compatible (without brake)

Technical details

Type1Length2Way of travelInstallation heightInstallation widthLoad capacity
55 Installation height
 xyz
A5F-S/1200.A51.200 mmca. 1.000 mmca. 58 mm78 mm90 kg
A5F-S/1400.A51.400 mmca. 1.200 mmca. 58 mm78 mm90 kg
A5F-S/1600.A51.600 mmca. 1.400 mmca. 58 mm78 mm90 kg
A5F-S/1800.A51.800 mmca. 1.400 mmca. 58 mm78 mm90 kg

1) A5F = Alu 55 Frontslide Synchronous | A5F-SB = Synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

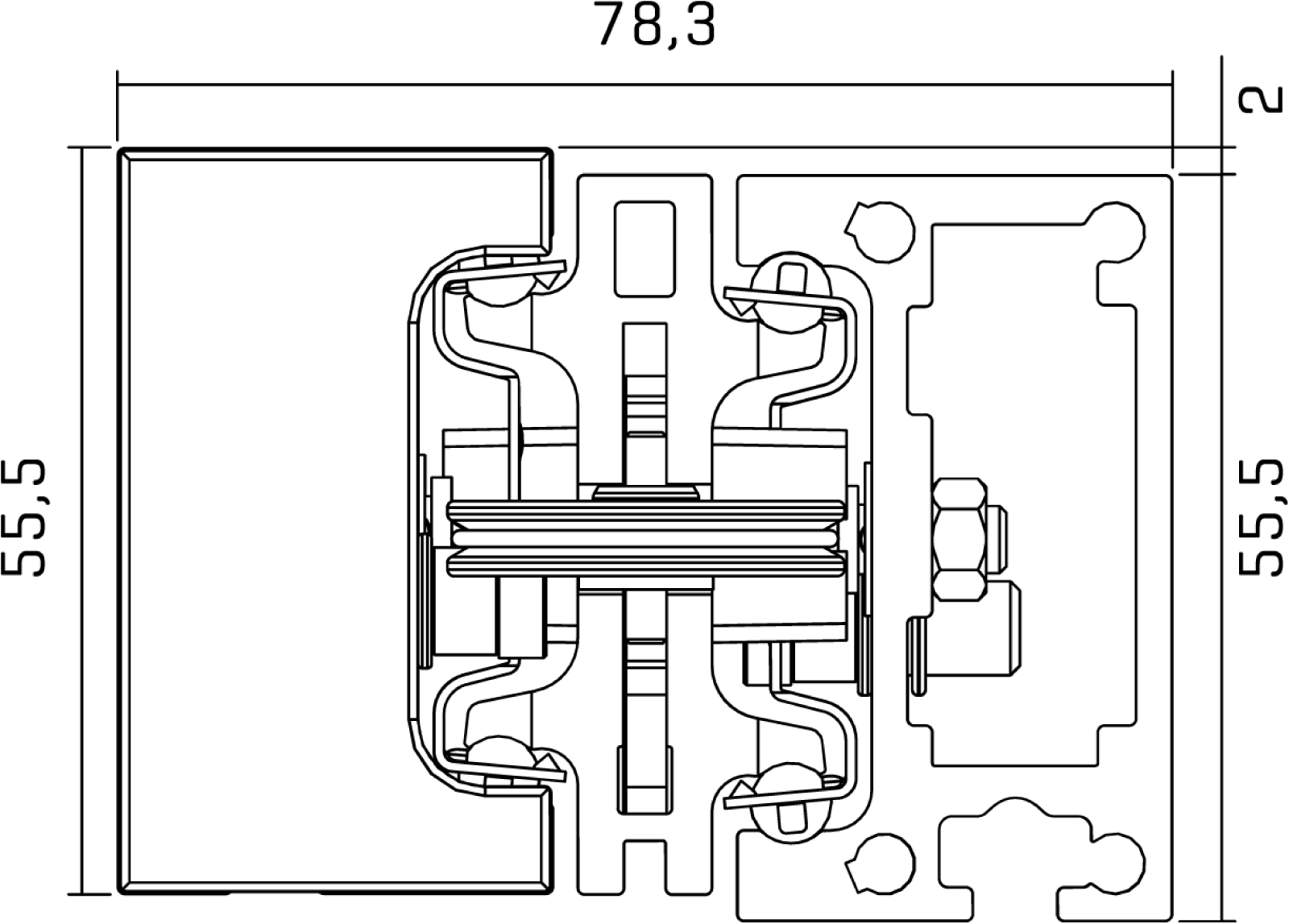

Installation height 55

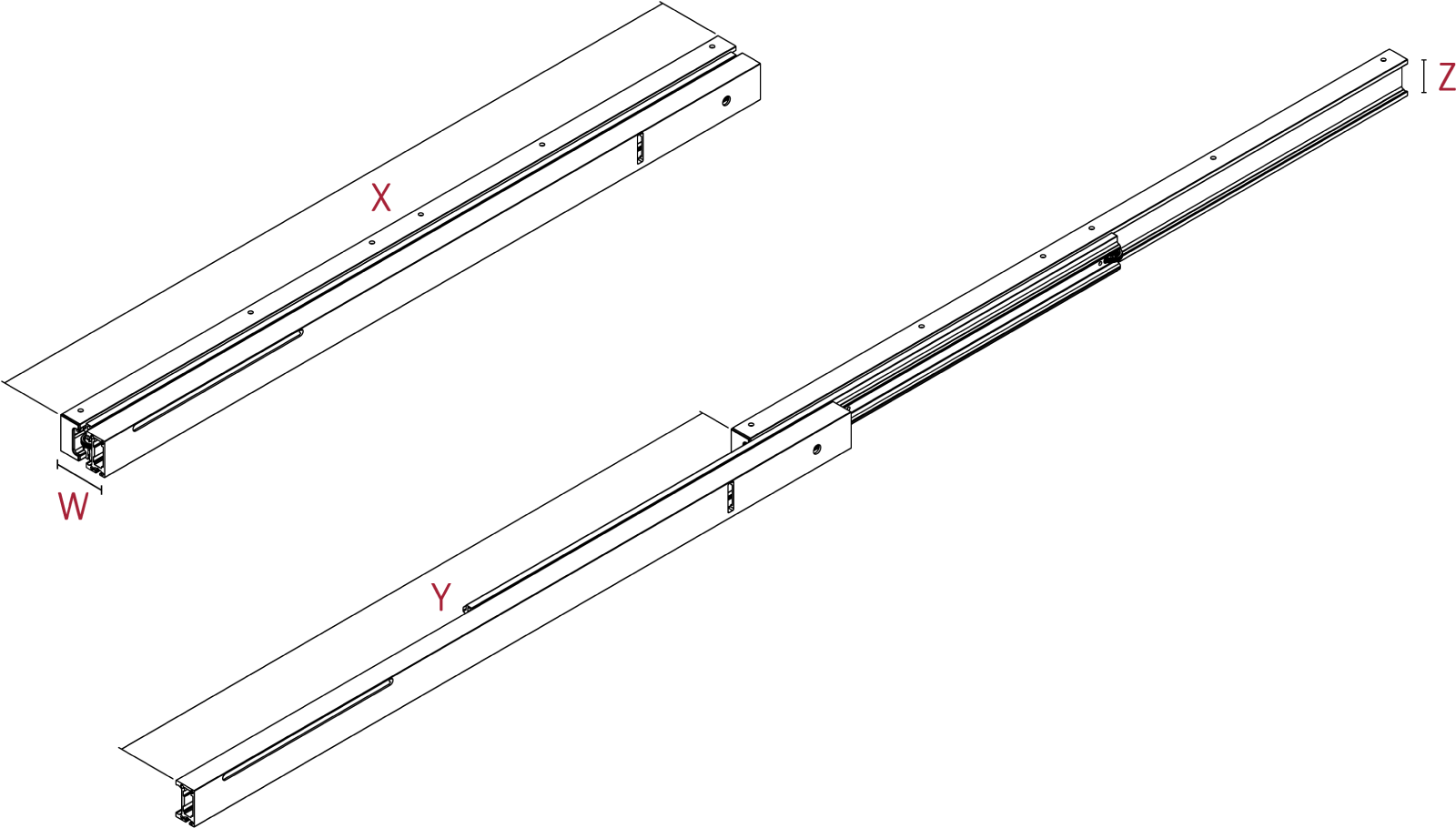

Extension lengths

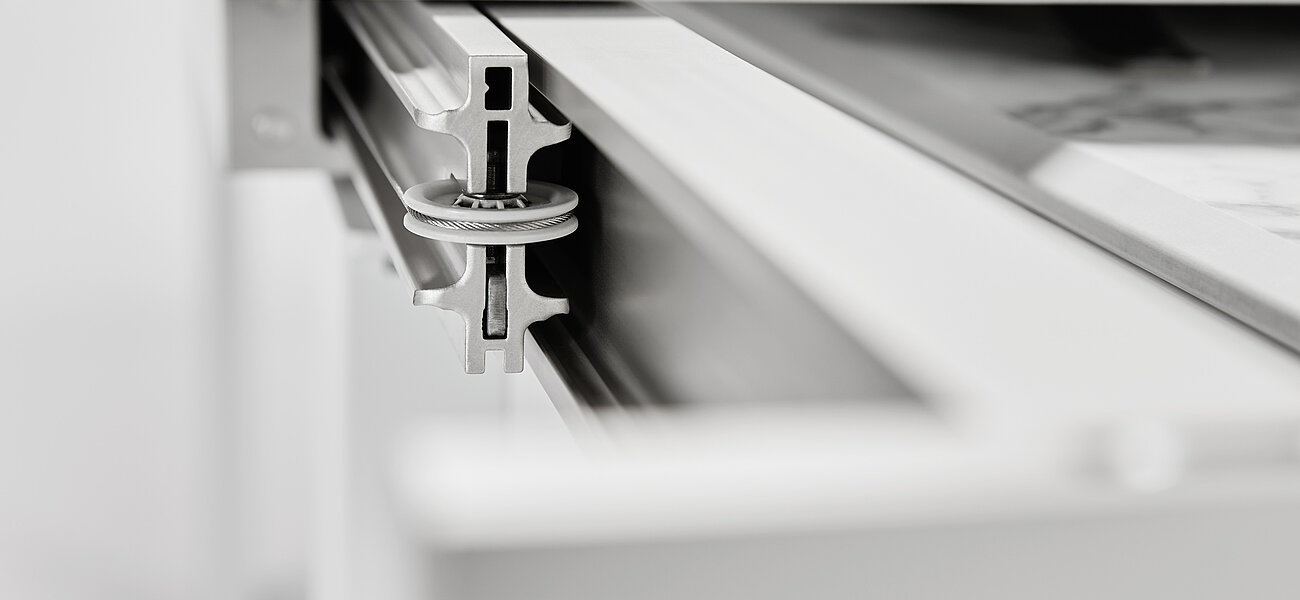

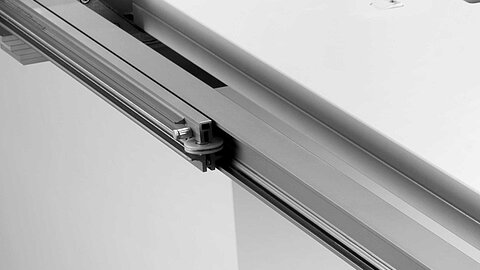

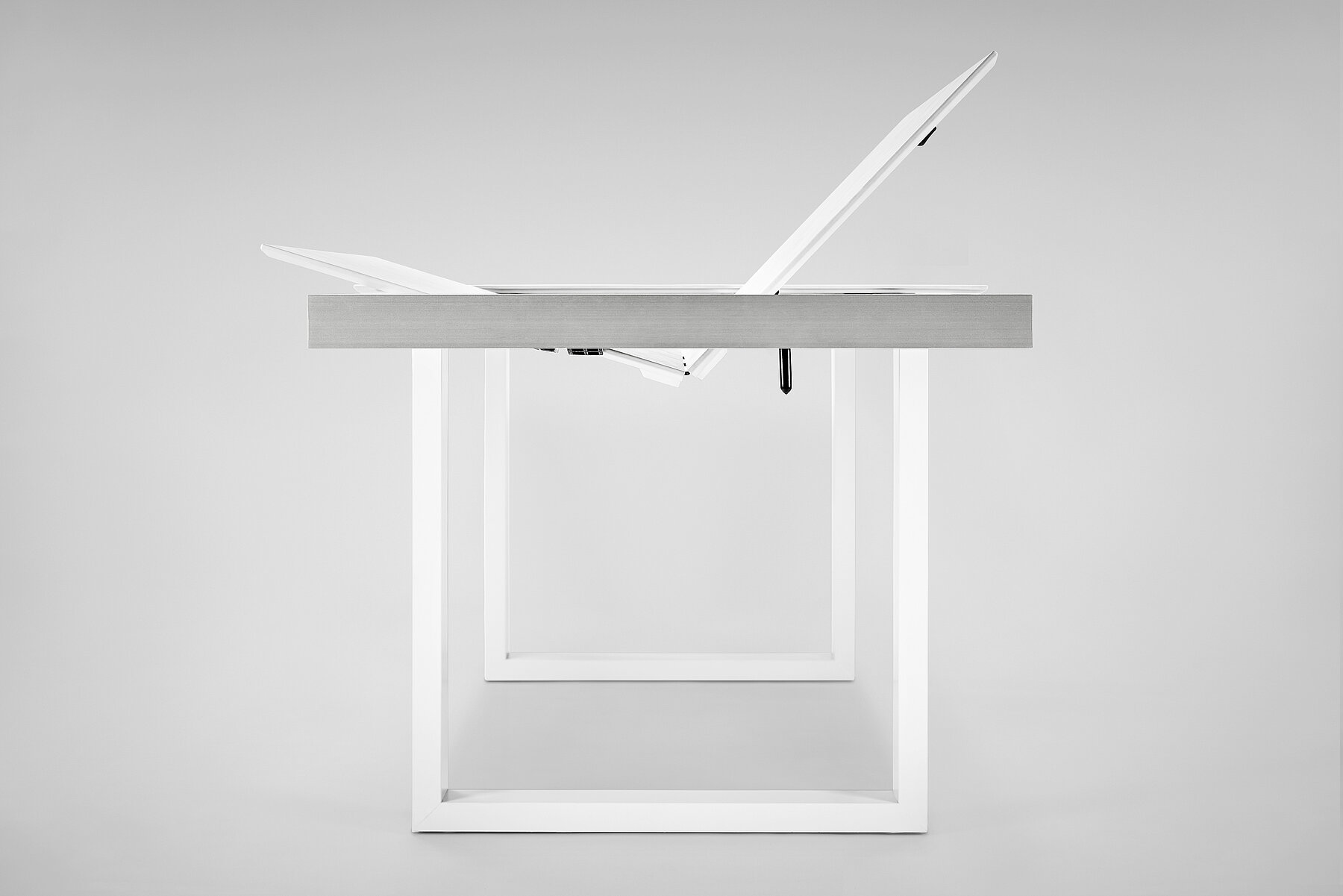

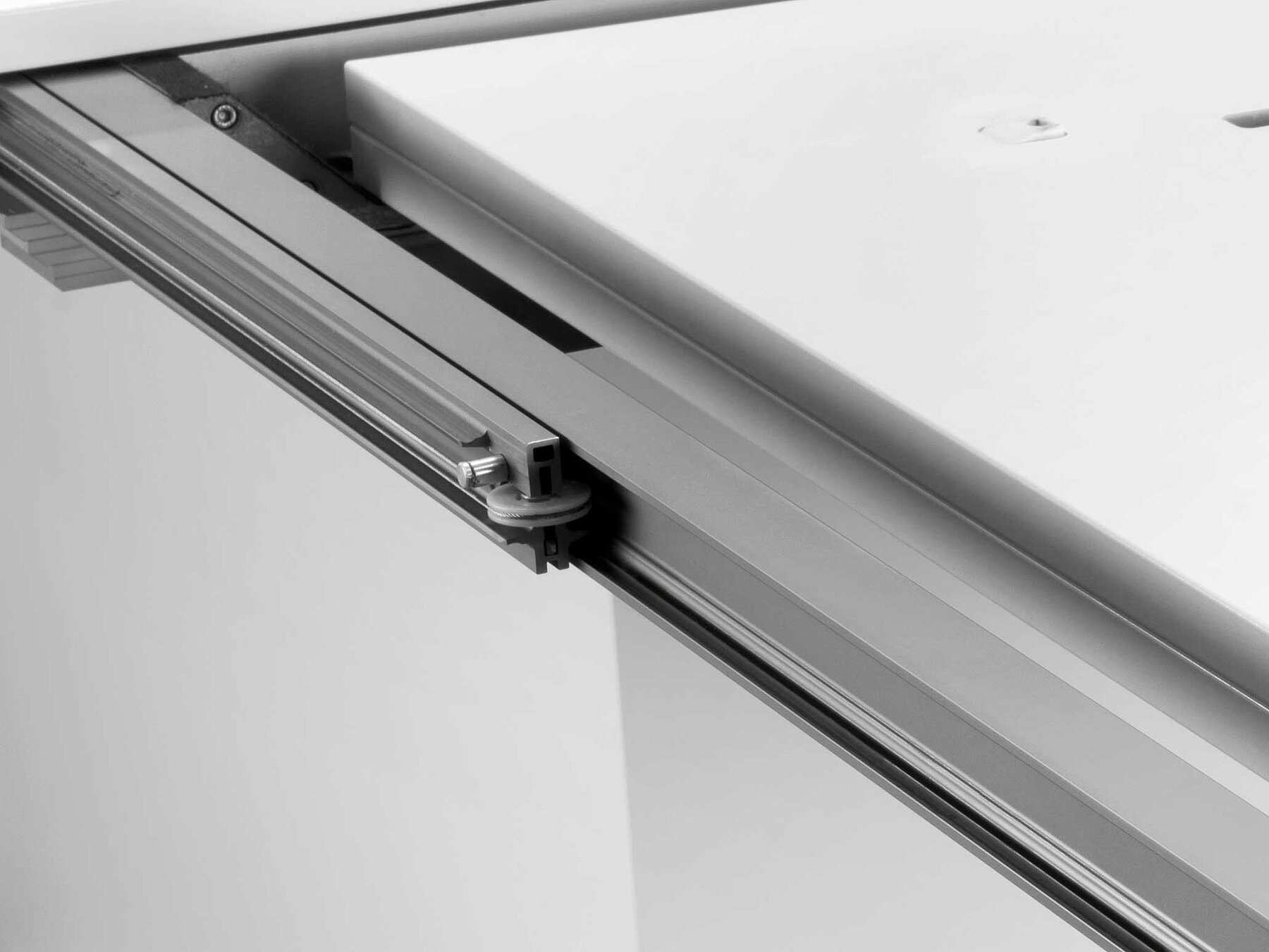

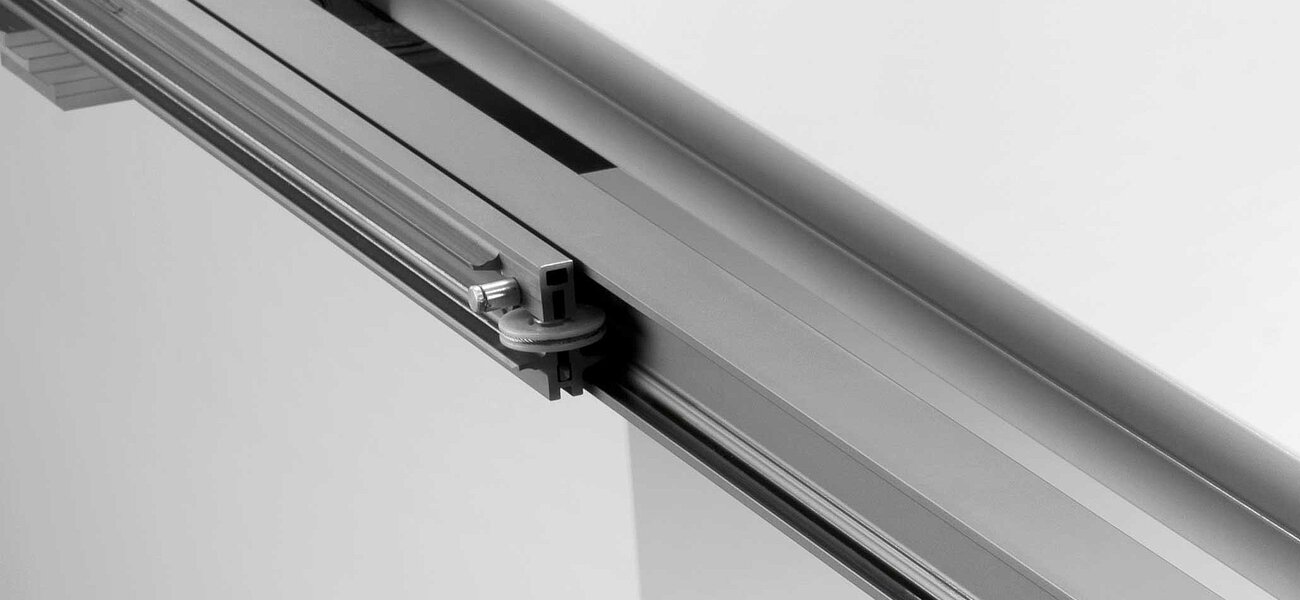

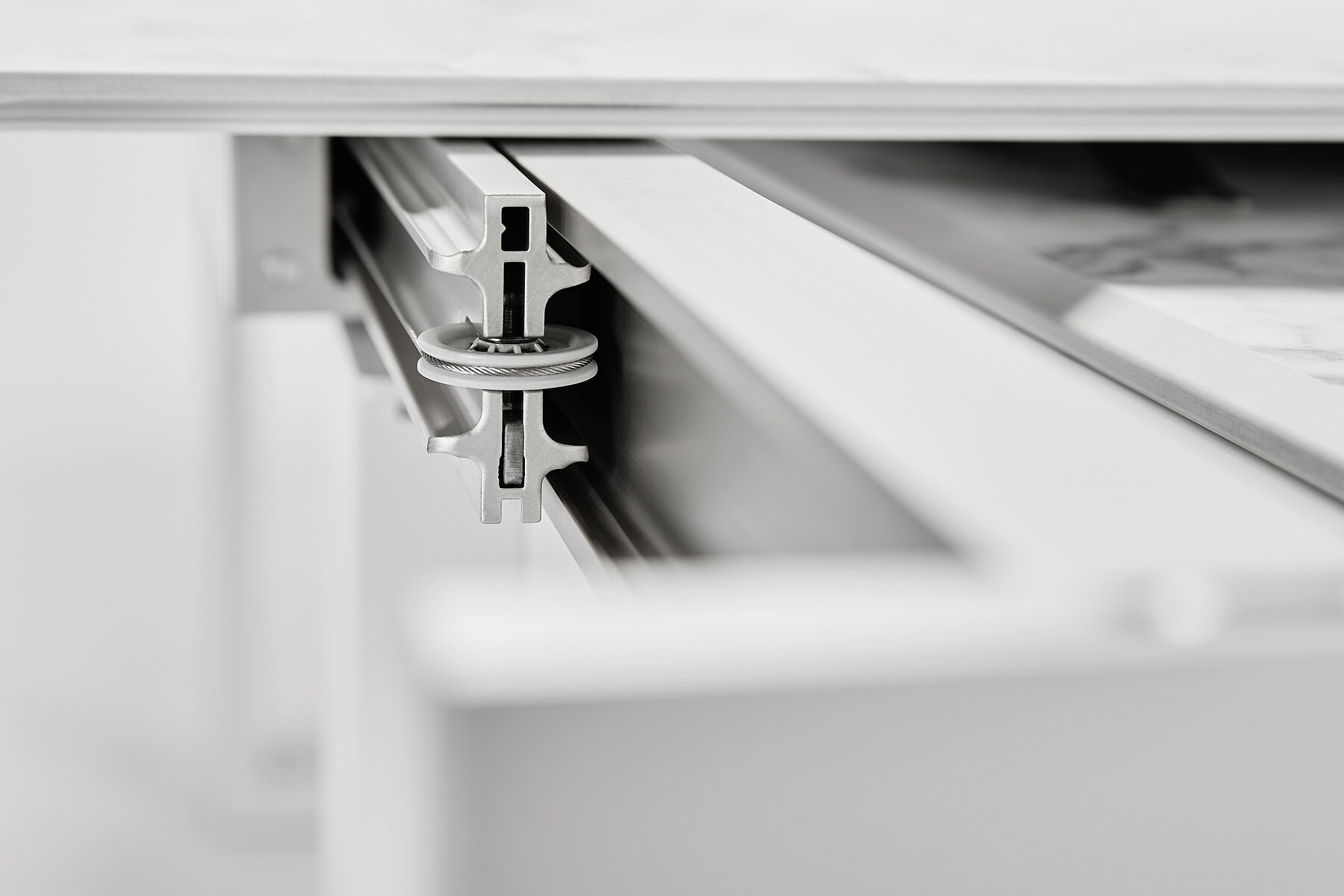

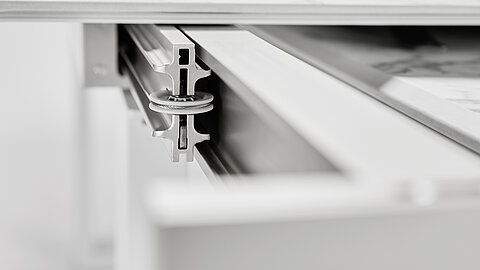

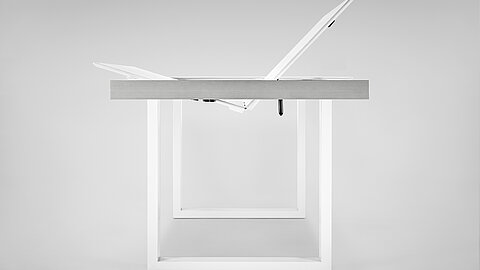

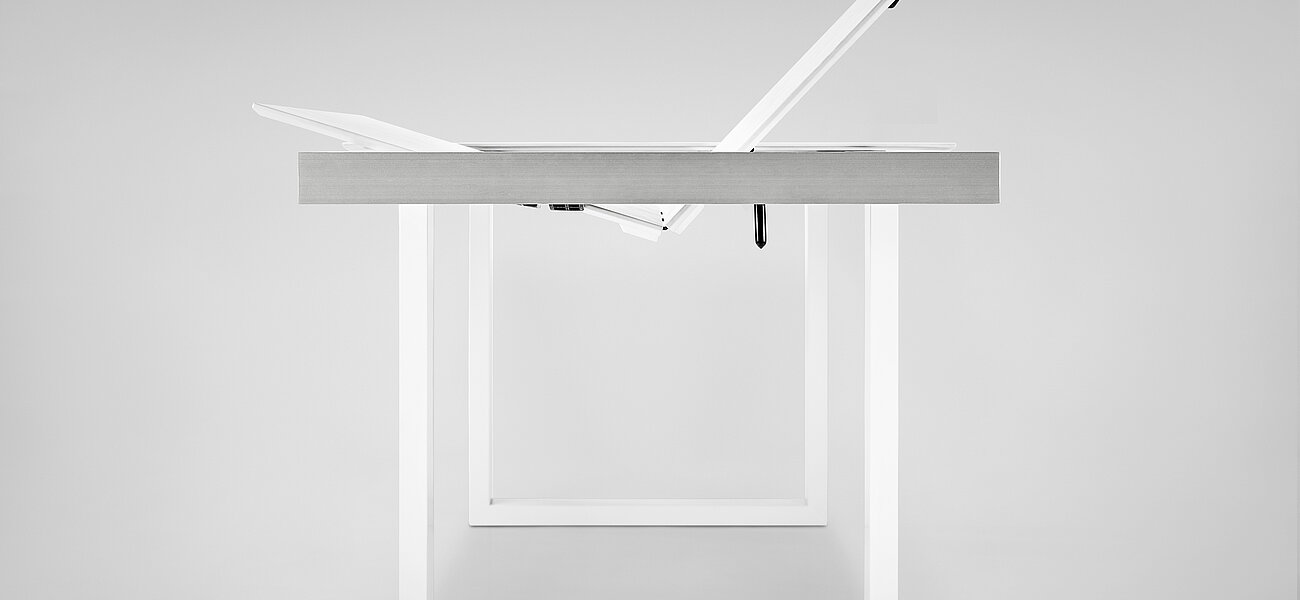

Product images
