STEEL CLASSIC 37 | 47 | 77
For closed frame construction with telescopic Technoligy
Benefits
Technical details
| Type1 | Length2 | Table inserts | Installation height | Load capacity |
|---|---|---|---|---|
| 37 Installation height | Material 1,75 mm | ||||
| x | y | z | ||
| C-T1/450.3 | 450 mm | 1 x 320 mm | 40 mm | 60 kg |
| C-T1/540.3 | 540 mm | 1 x 400 mm | 40 mm | 60 kg |
| C-T1/660.3 | 660 mm | 1 x 500 mm | 40 mm | 60 kg |
| C-T2/450.3 | 450 mm | 1 x 600 mm | 40 mm | 60 kg |
| C-T2/660.3 | 660 mm | 2 x 500 mm | 40 mm | 60 kg |
| 47 Installation height | Material 2 mm | ||||
|---|---|---|---|---|
| x | y | z | ||
| C-T2/660.4 | 660 mm | 2 x 500 mm | 50 mm | 90 kg |
| C-T2/740.4 | 740 mm | 2 x 500 mm | 50 mm | 90 kg |
| C-T2/1070.4 | 1.070 mm | 2 x 500 mm | 50 mm | 90 kg |
| C-T2/1400.4 | 1.400 mm | 2 x 500 mm | 50 mm | 90 kg |
| C-T3/560.4 | 560 mm | 2 x 500 mm | 50 mm | 90 kg |
| C-T3/740.4 | 740 mm | 3 x 500 mm | 50 mm | 90 kg |
| C-T3/1070.4 | 1.070 mm | 3 x 500 mm | 50 mm | 90 kg |
| C-T4/650.4 | 650 mm | 4 x 500 mm | 50 mm | 90 kg |
| 77 Installation height | Material 2 mm | ||||
|---|---|---|---|---|
| x | y | z | ||
| C-T2/1070.7 | 1.070 mm | 2 x 500 mm | 75 mm | 115 kg |
| C-T2/1400.7 | 1.400 mm | 3 x 500 mm | 75 mm | 115 kg |
1) C = Classic | C-T1 = 1-fold | C-T2 = 2-fold | C-T3 = 3-fold | C-T4 = 4-fold telescop
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.
Technical drawings
Installation height 37
Installation height 47
Installation height 77
Extension lengths
Videos

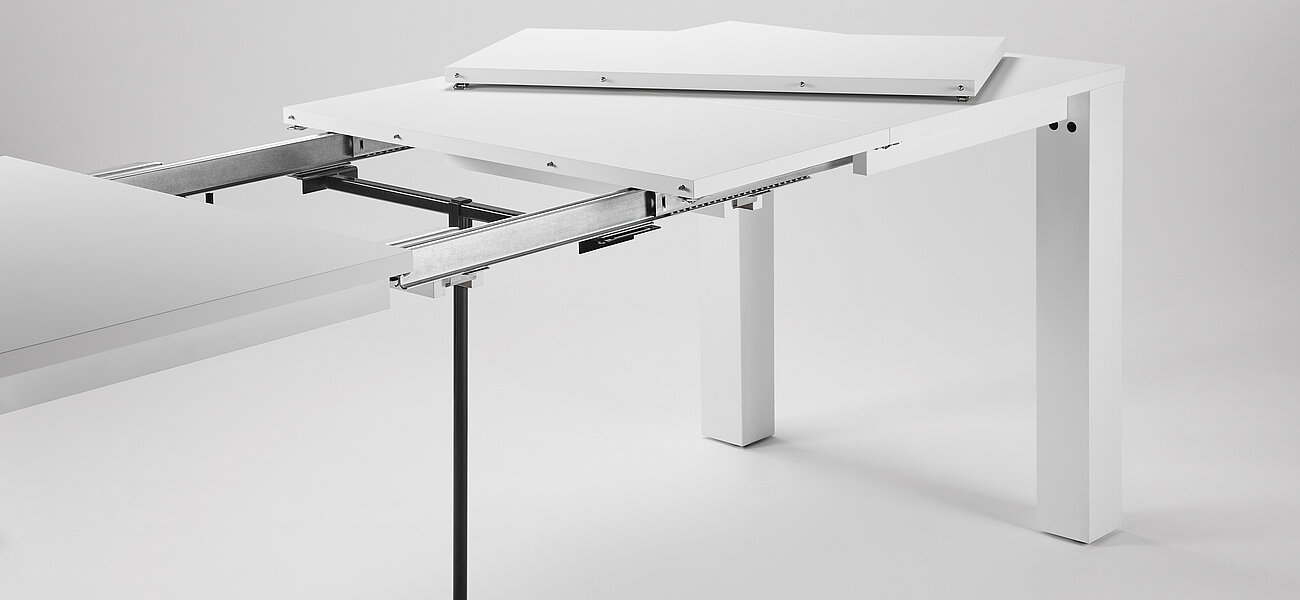

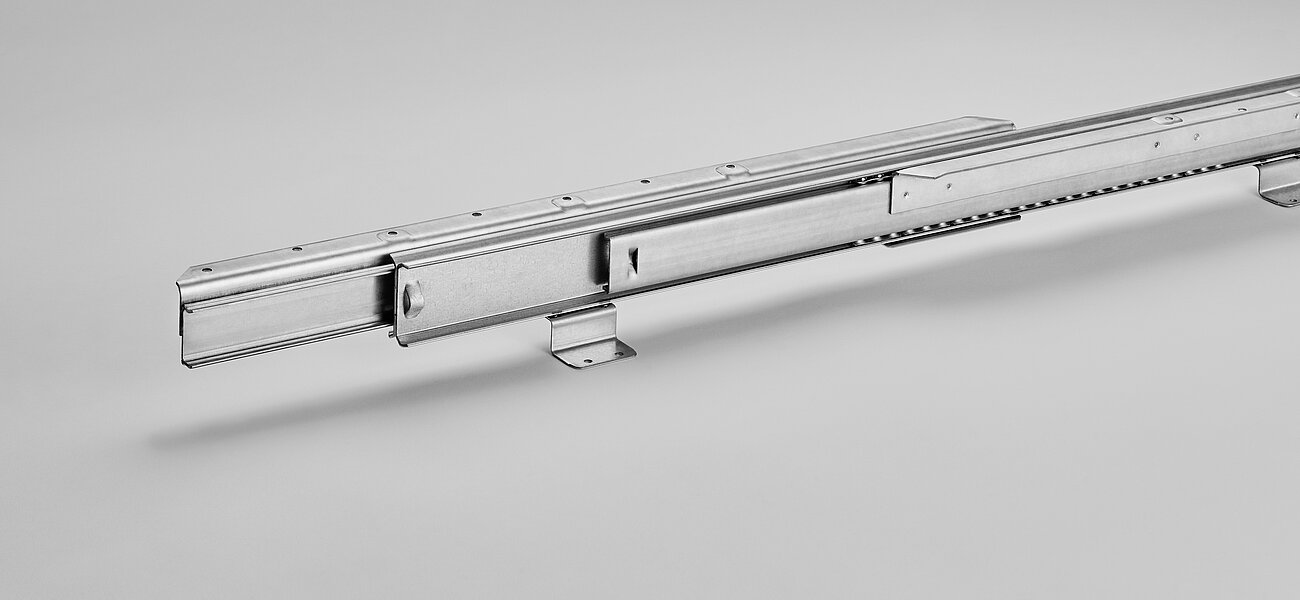

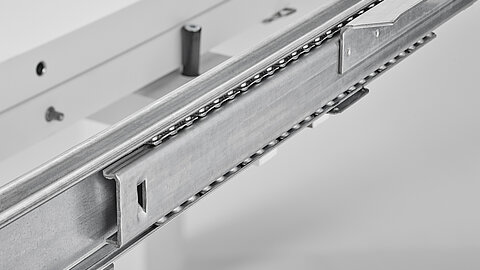

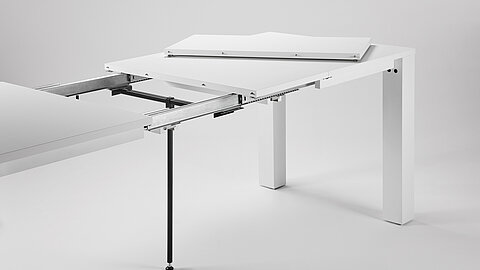

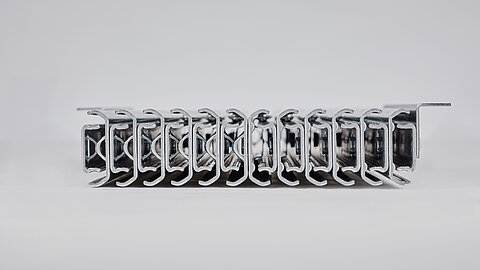

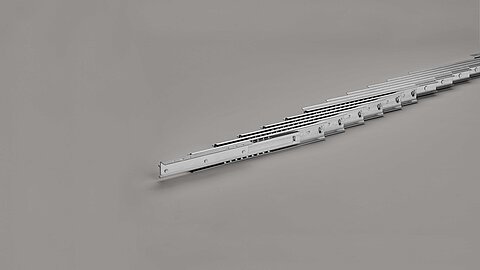

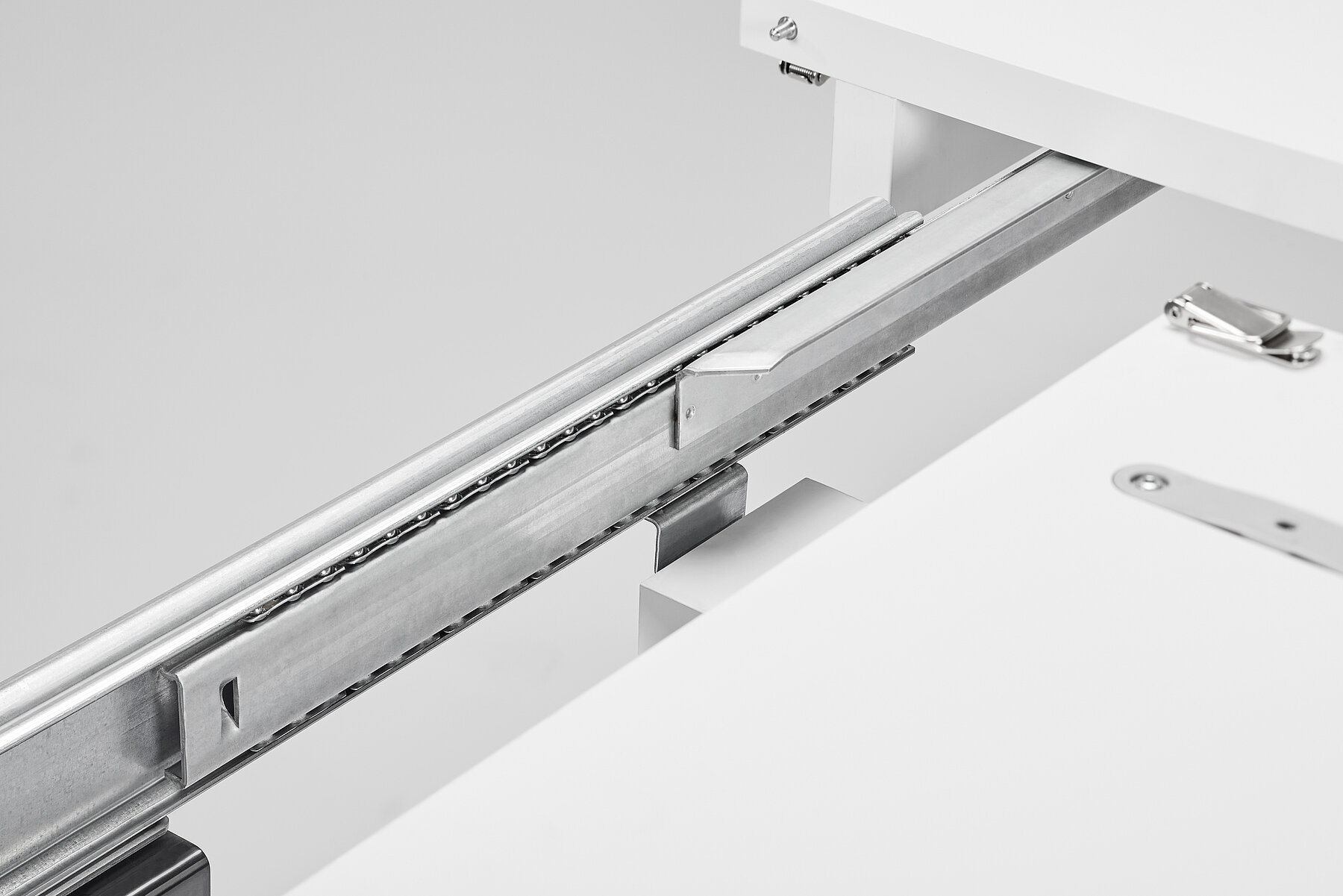

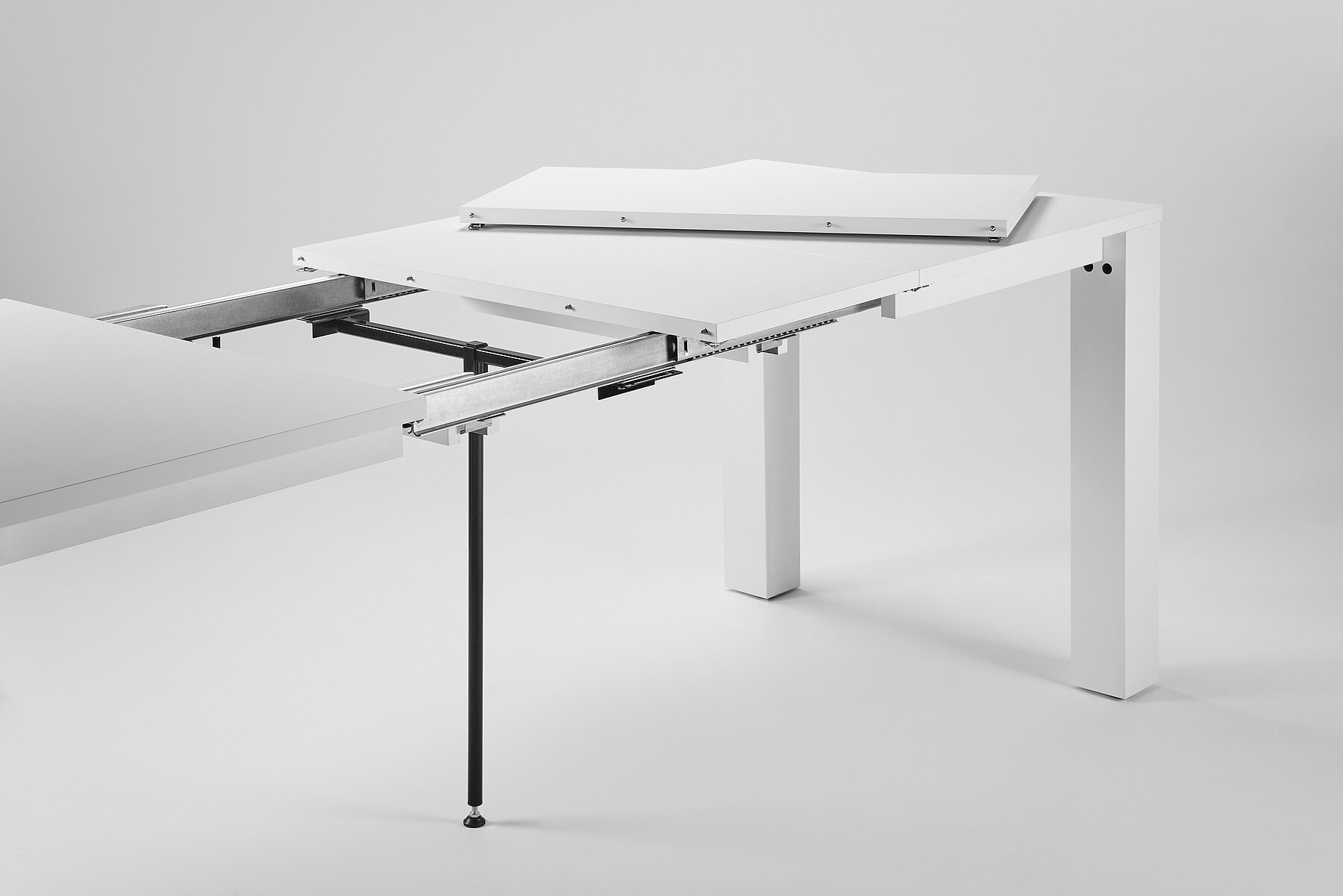

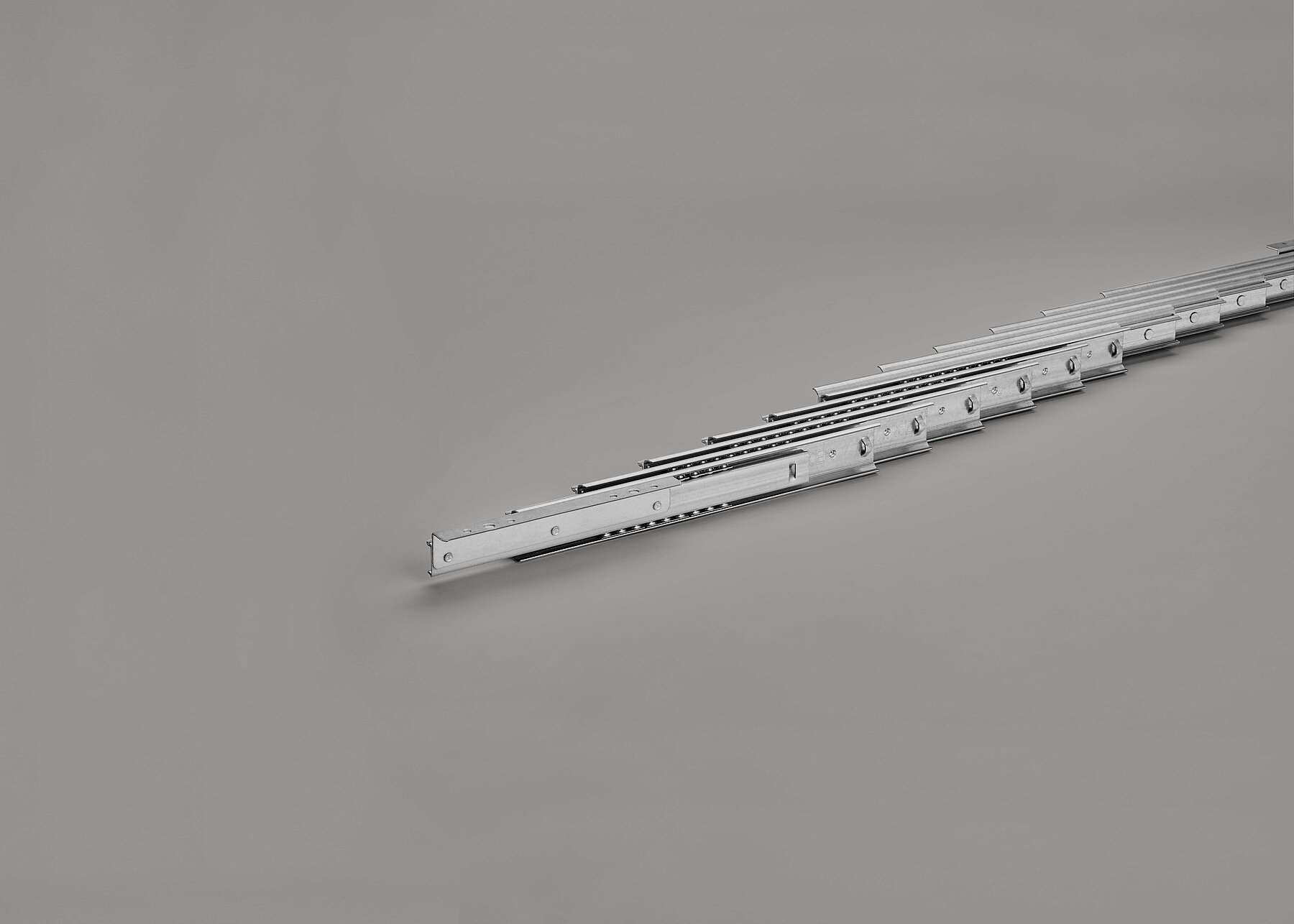

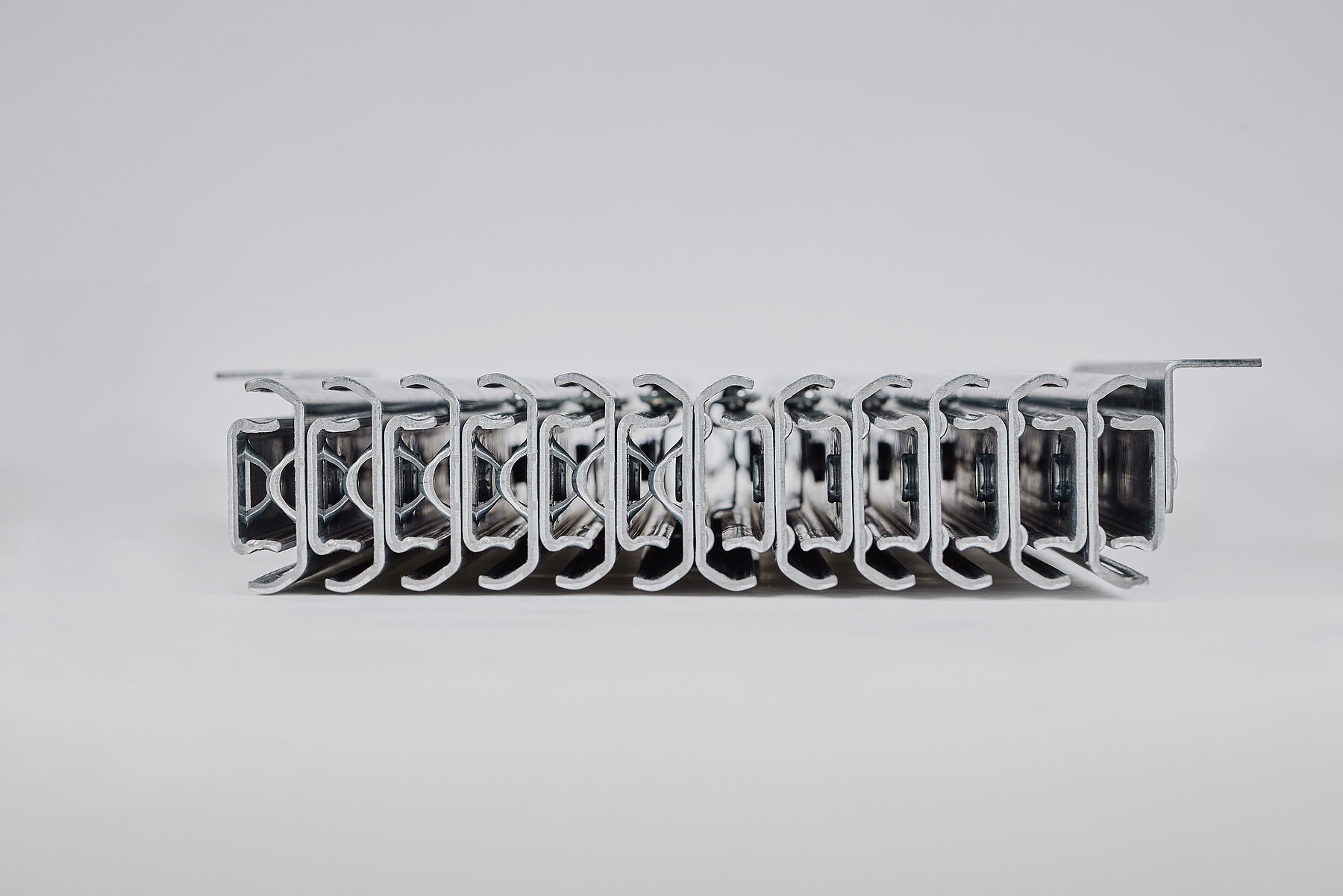

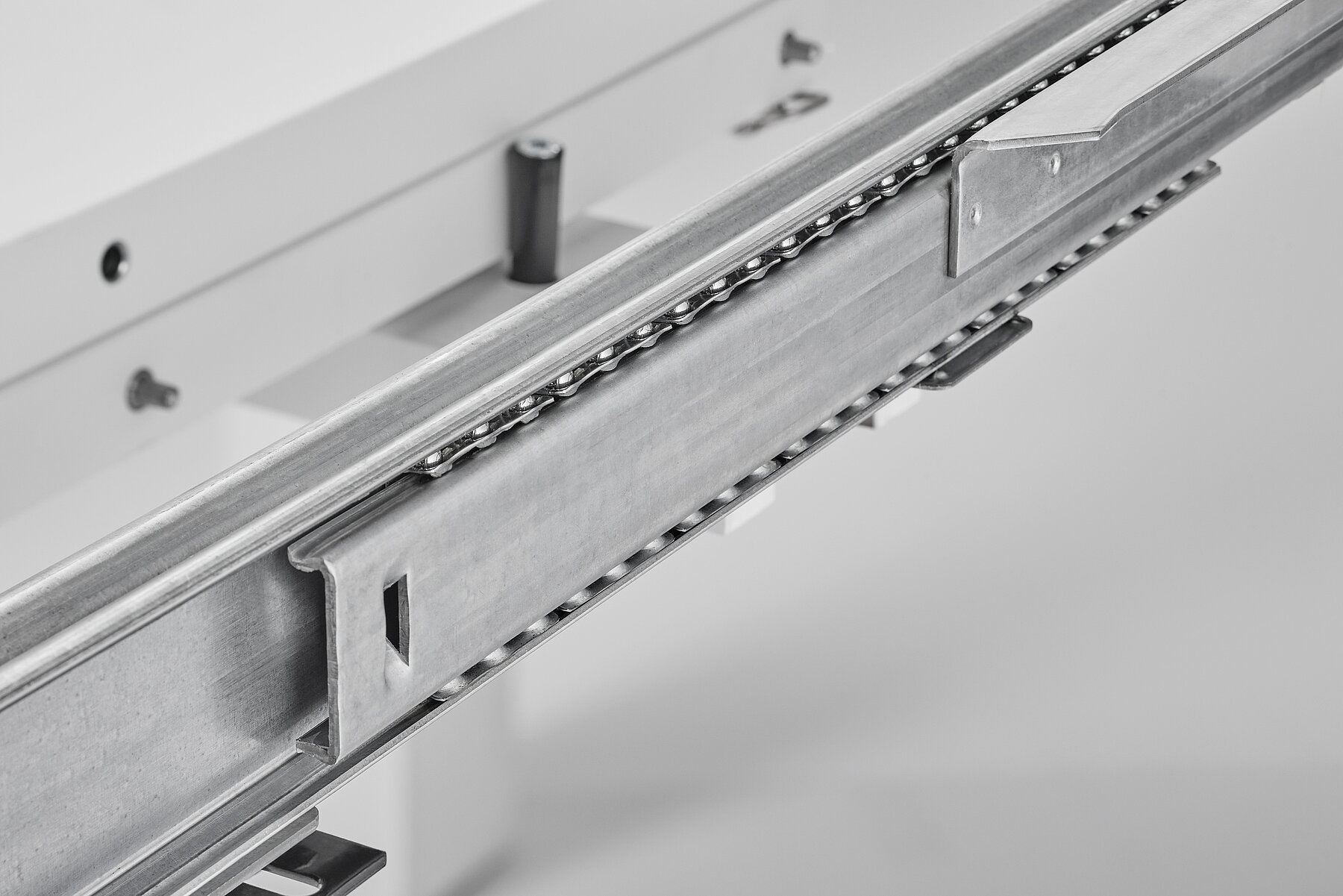

Product images
