Alu/Steel Topslide 47

For one-sided extension

Benefits

Material

Steel and aluminum - the rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load Capacities

The TOPSLIDE standard slides are dimensioned for 60 kg and 90 kg under uniformly applied loads. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Outdoor

Outdoor compatible: The BASIC type is also available in stainless steel for the 47 type installation height.

Slide

The TOPSLIDE slide system provides consistently equal extension lengths, both in a closed and opened condition.

Brake & Accessories

Optimize the TOPSLIDE slide system by adding a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories, such as the FM/FM Stop folding mechanism. Please contact us.

Technical details

47 Installation height | Material 2 mm
 xyz
T/1000.41.000 mmca. 615 mmca. 50 mm90 kg
T/1200.41.200 mmca. 715 mmca. 50 mm90 kg
T/1500.41.500 mmca. 1.015 mmca. 50 mm90 kg

1) T = Topslide | T-B = Topslide with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

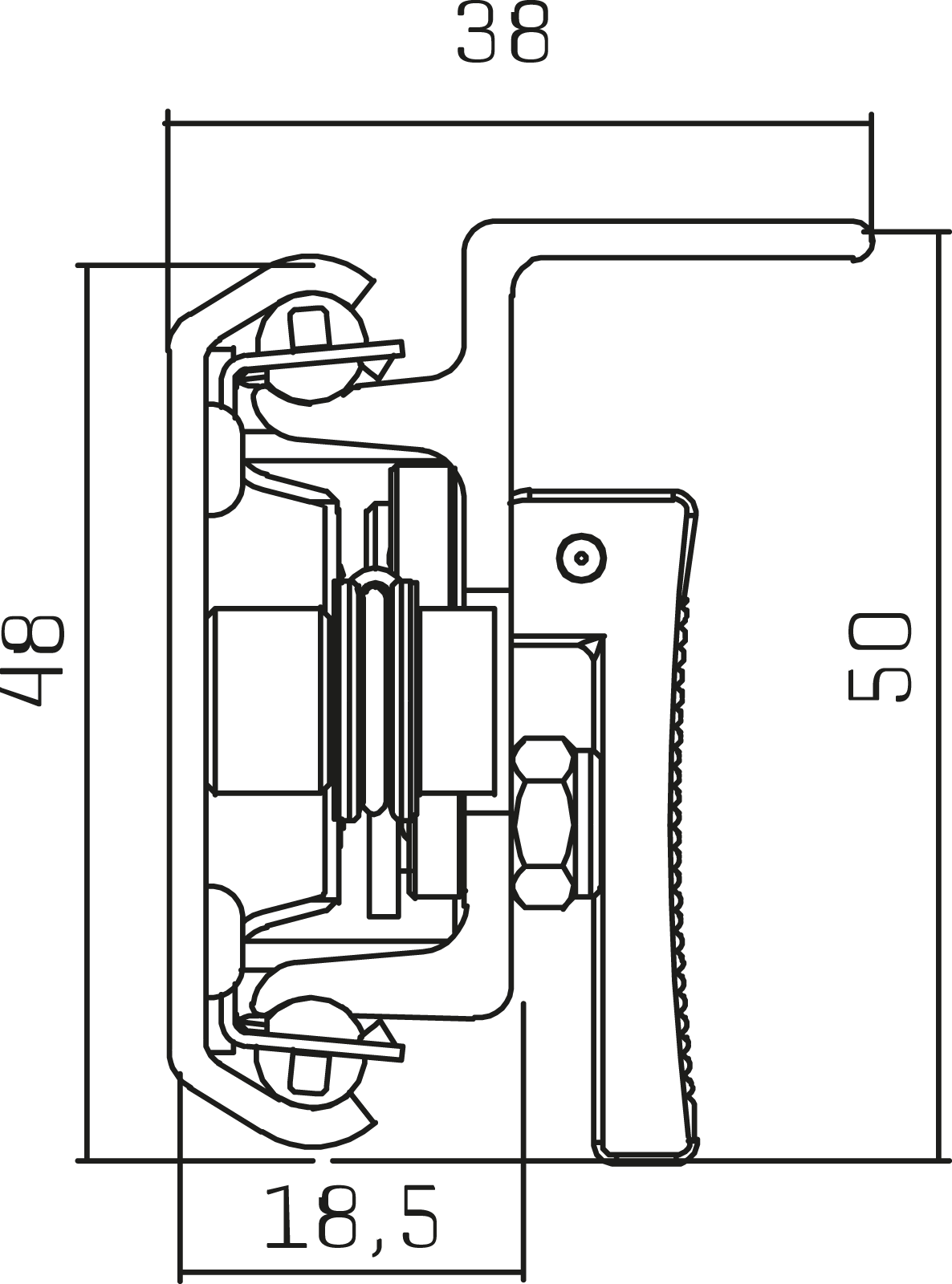

Installation height 47

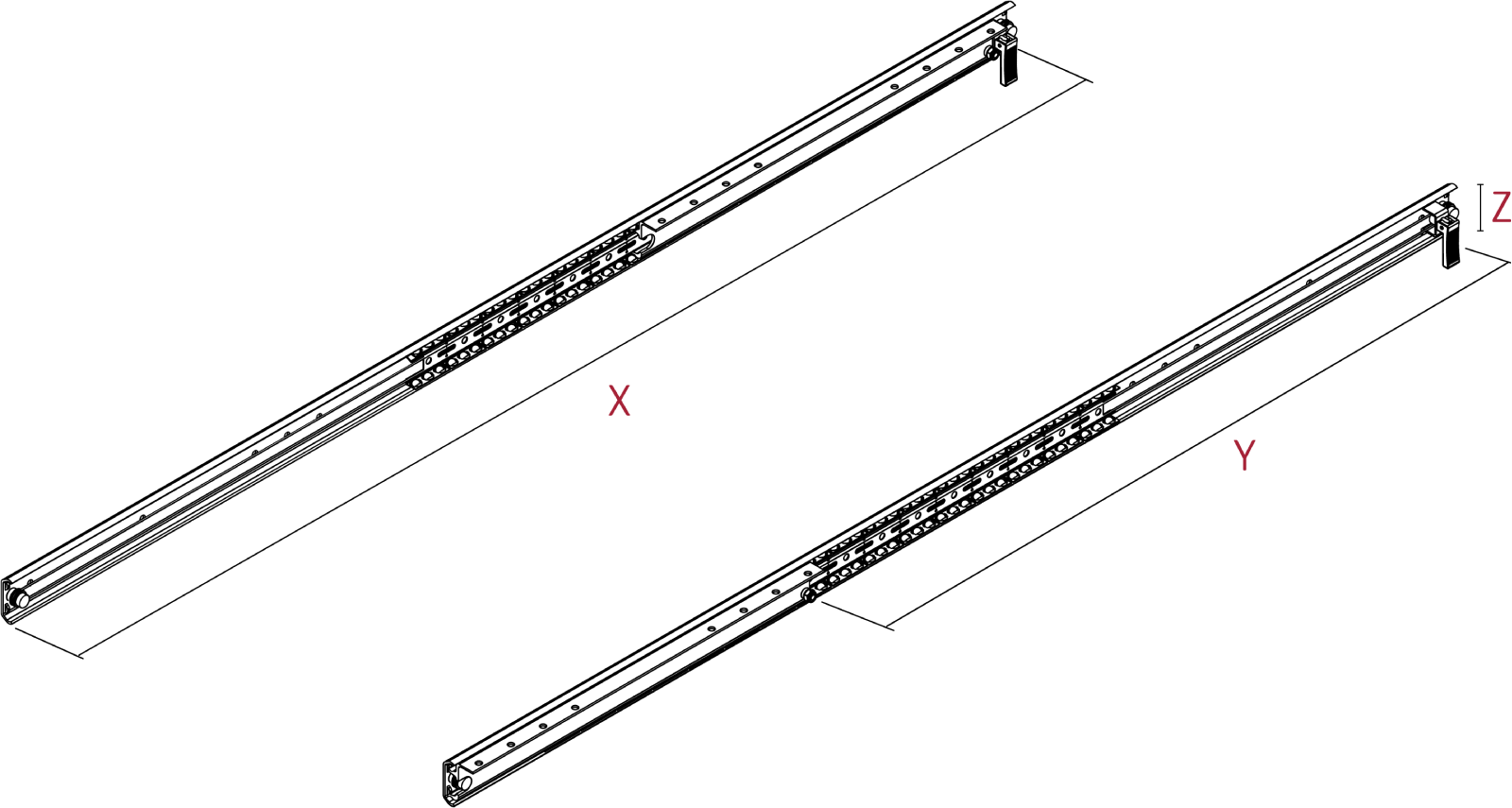

Extension lengths

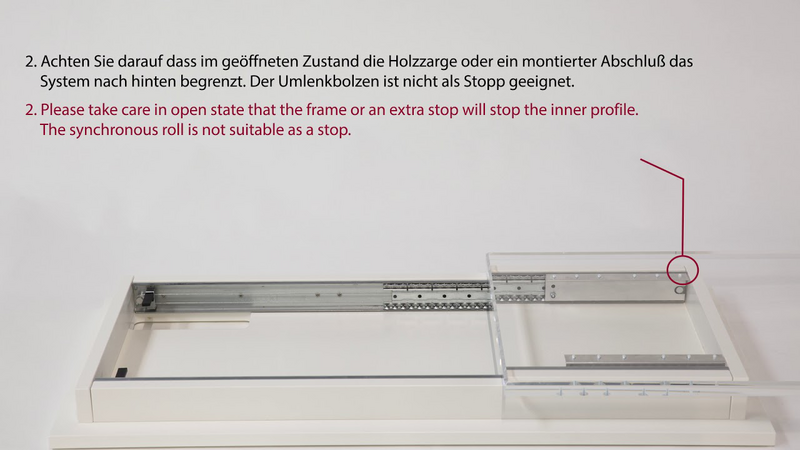

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

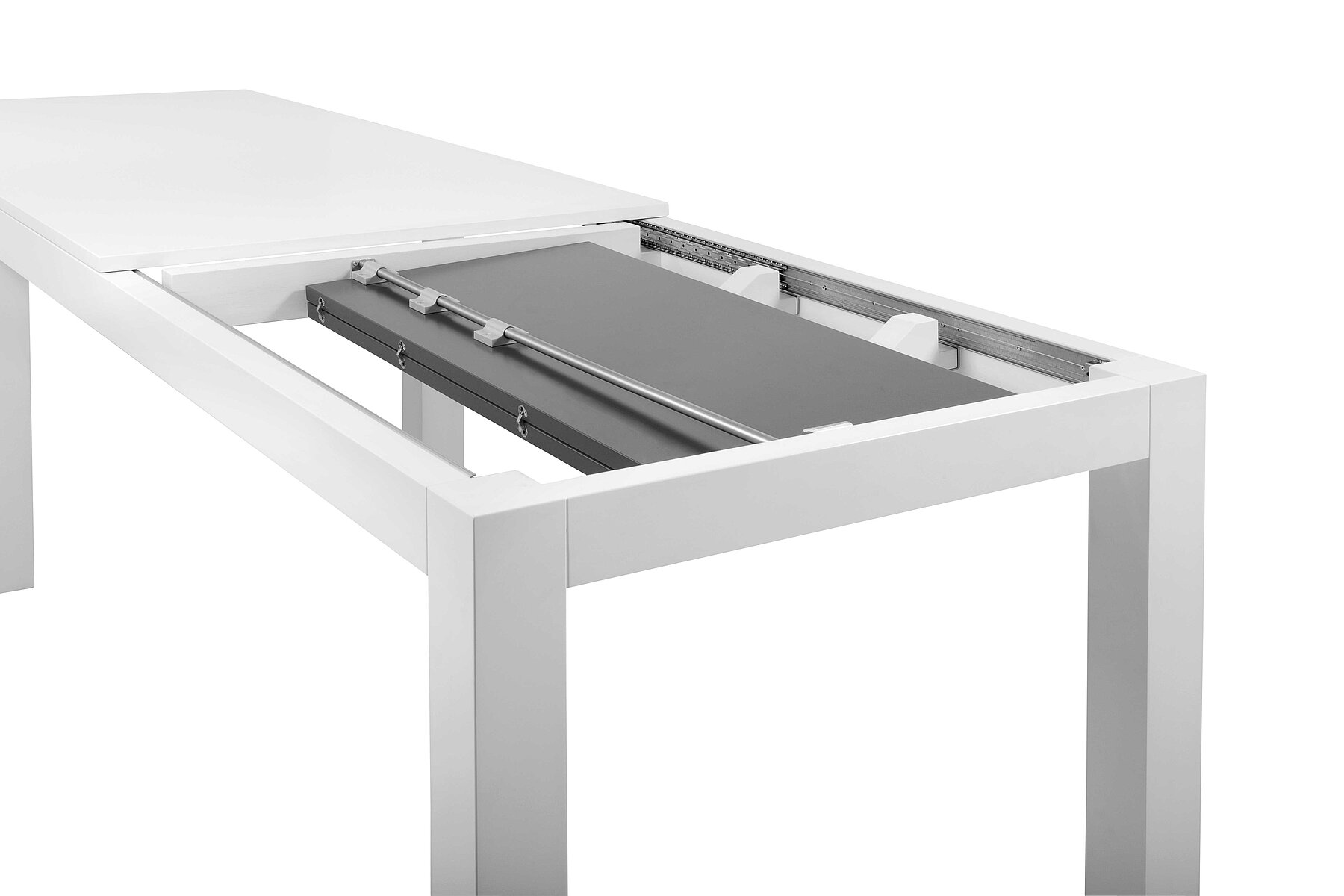

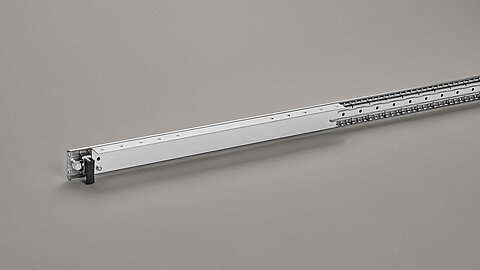

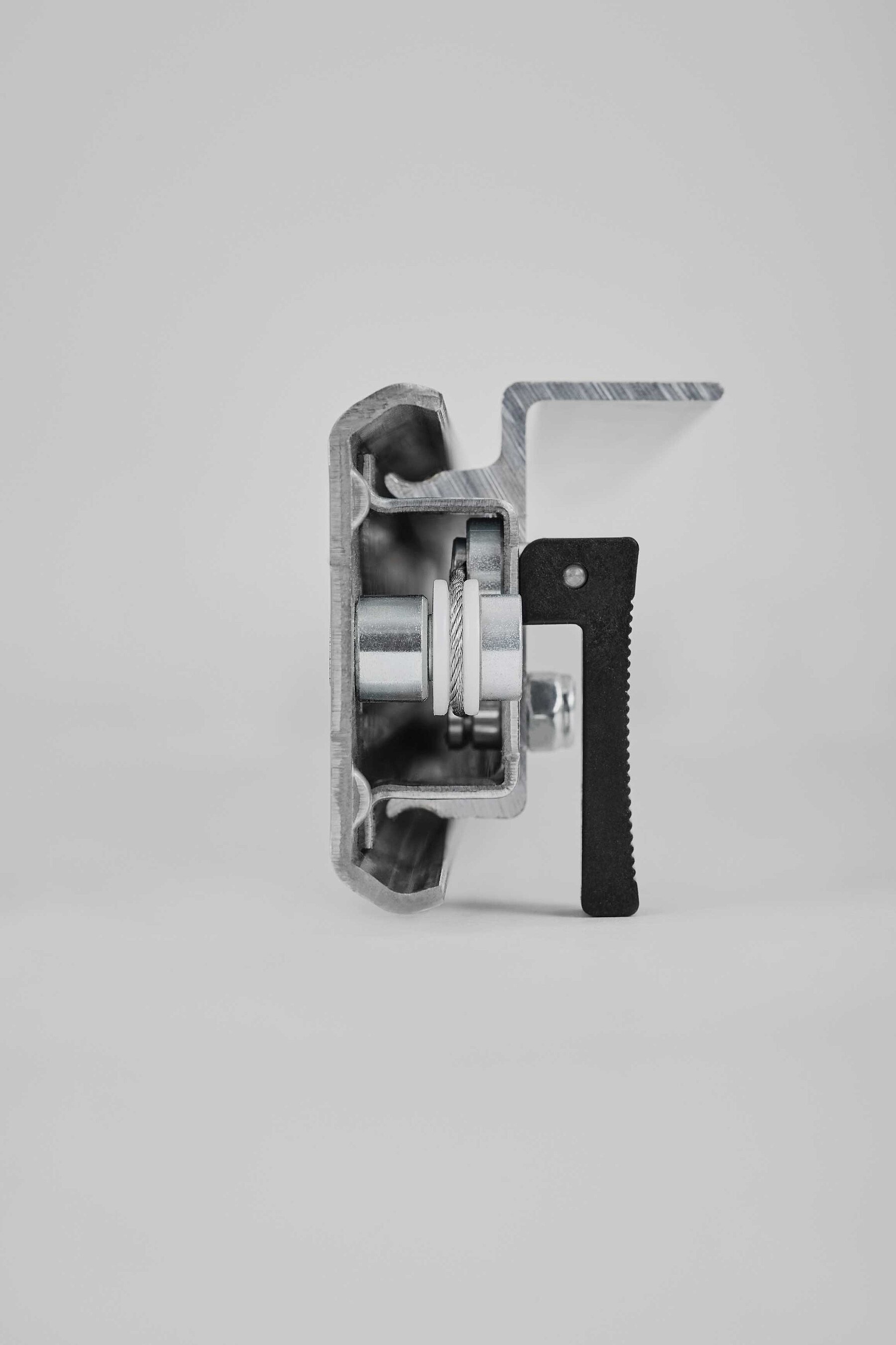

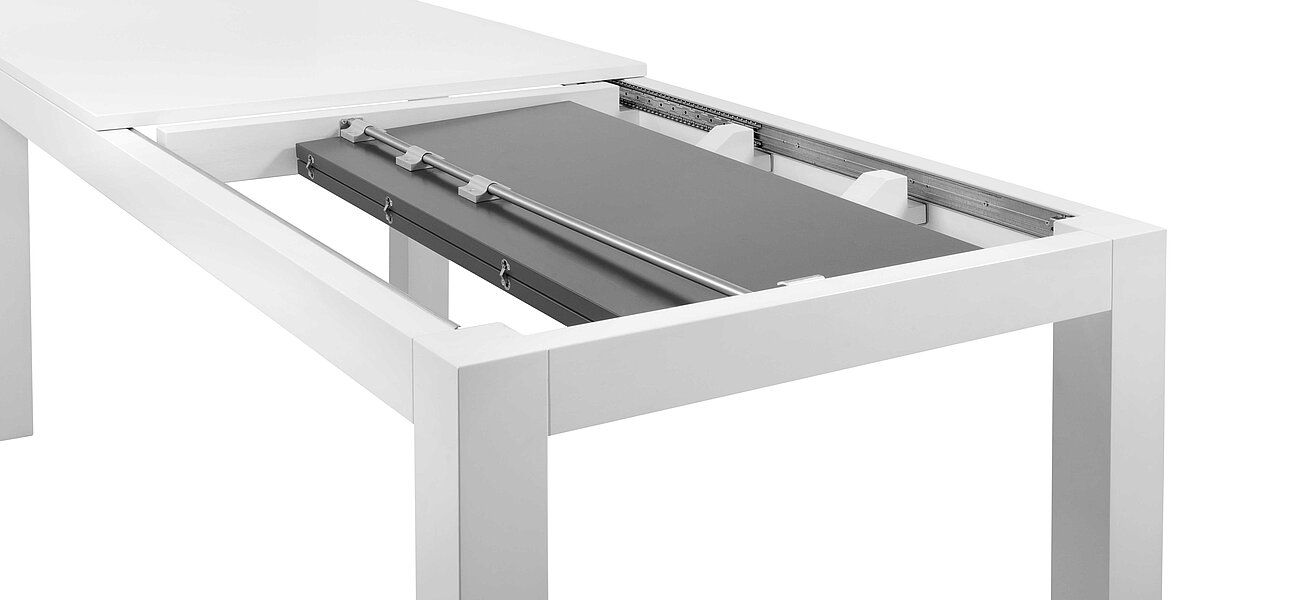

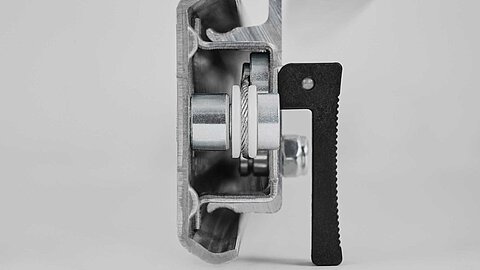

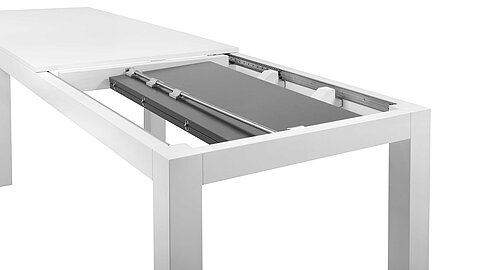

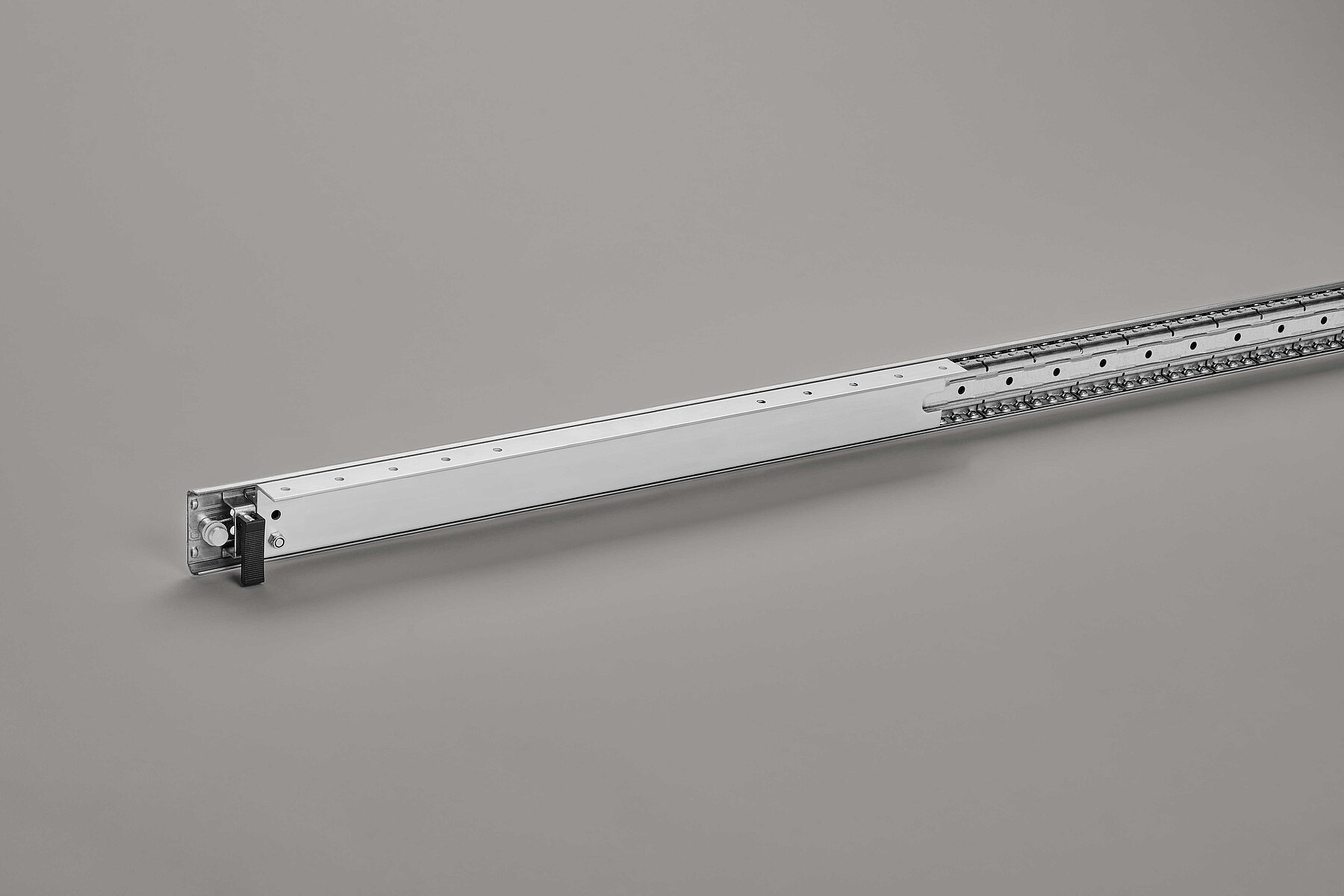

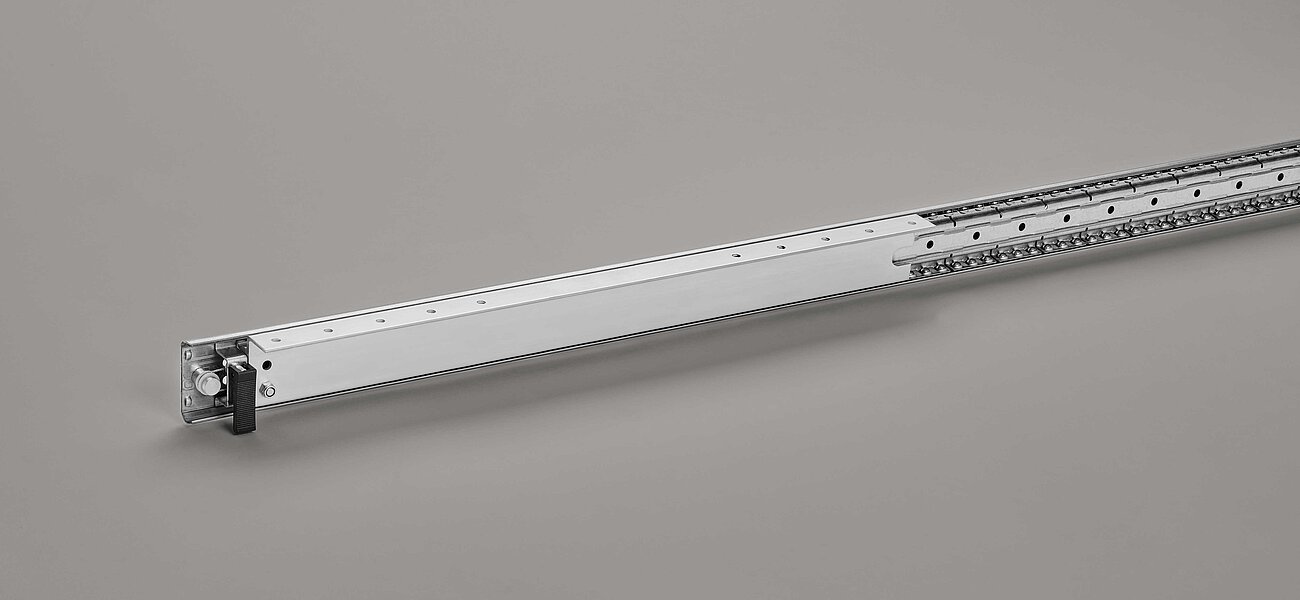

Product images
