ALU FRONTSLIDE UNIVERSAL 44

Can be used for variable sizes

Benefits

Material

Aluminum – anodized or powder coated. Available in various colors.

Large spans

The ALU 44 UNIVERSAL slide system has been designed for large spans, offers a flat and attractive installation and can be pre-loaded up to 4,000 mm, without sagging, for tables without function. An integrated stainless steel expansion shaft prevents sagging and permits particular stability. The low installation height permits a particularly attractive table design with high load requirements.

Load capacities

The ALU 44 UNIVERSAL standard slides are designed for 115 kg under a uniformly applied load and an installation height of only about 47 mm. All specifications depend on the material thickness as well as the tensile and flexural strength.

State of the art

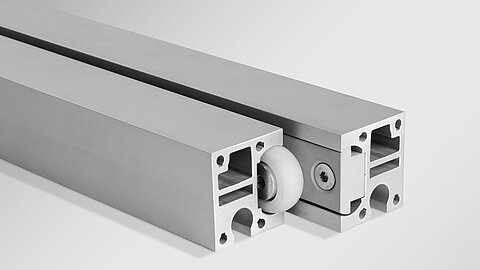

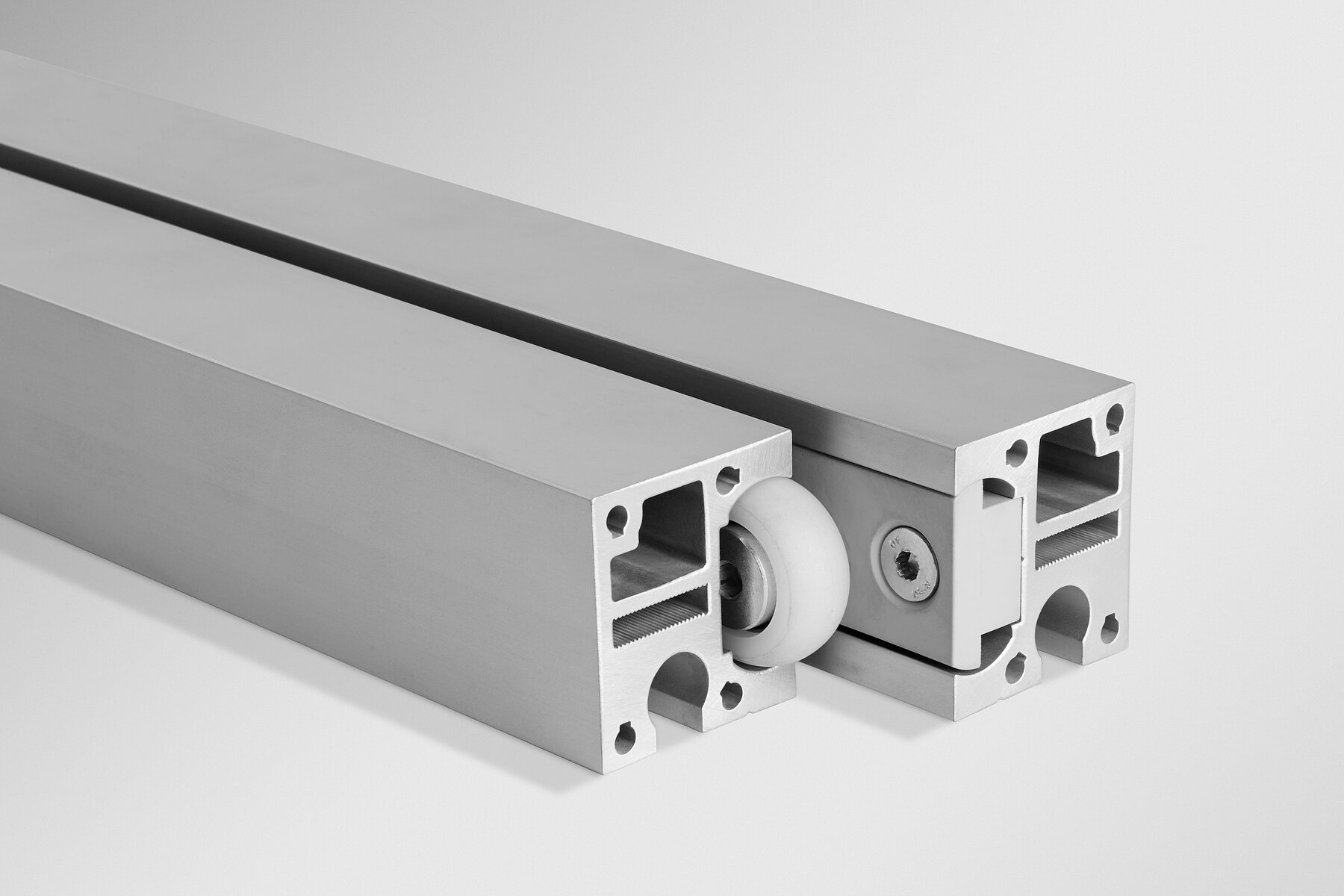

The ALU 55 UNIVERSAL LIGHT slide system is equipped with high-quality, ball-bearing rollers for particularly smooth, consistent and easy running. It offers you state-of-the-art technology and is particularly abrasion-resistant and impact-resistant.

Outdoor

Outdoor compatible

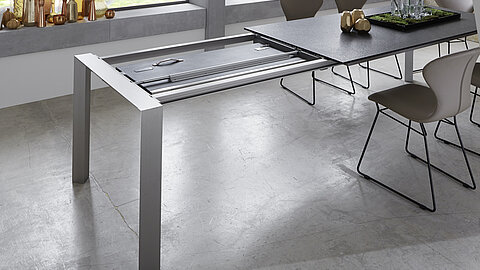

Slide

Upon request as a single or telescopic pull-out system

Brake & Accessories

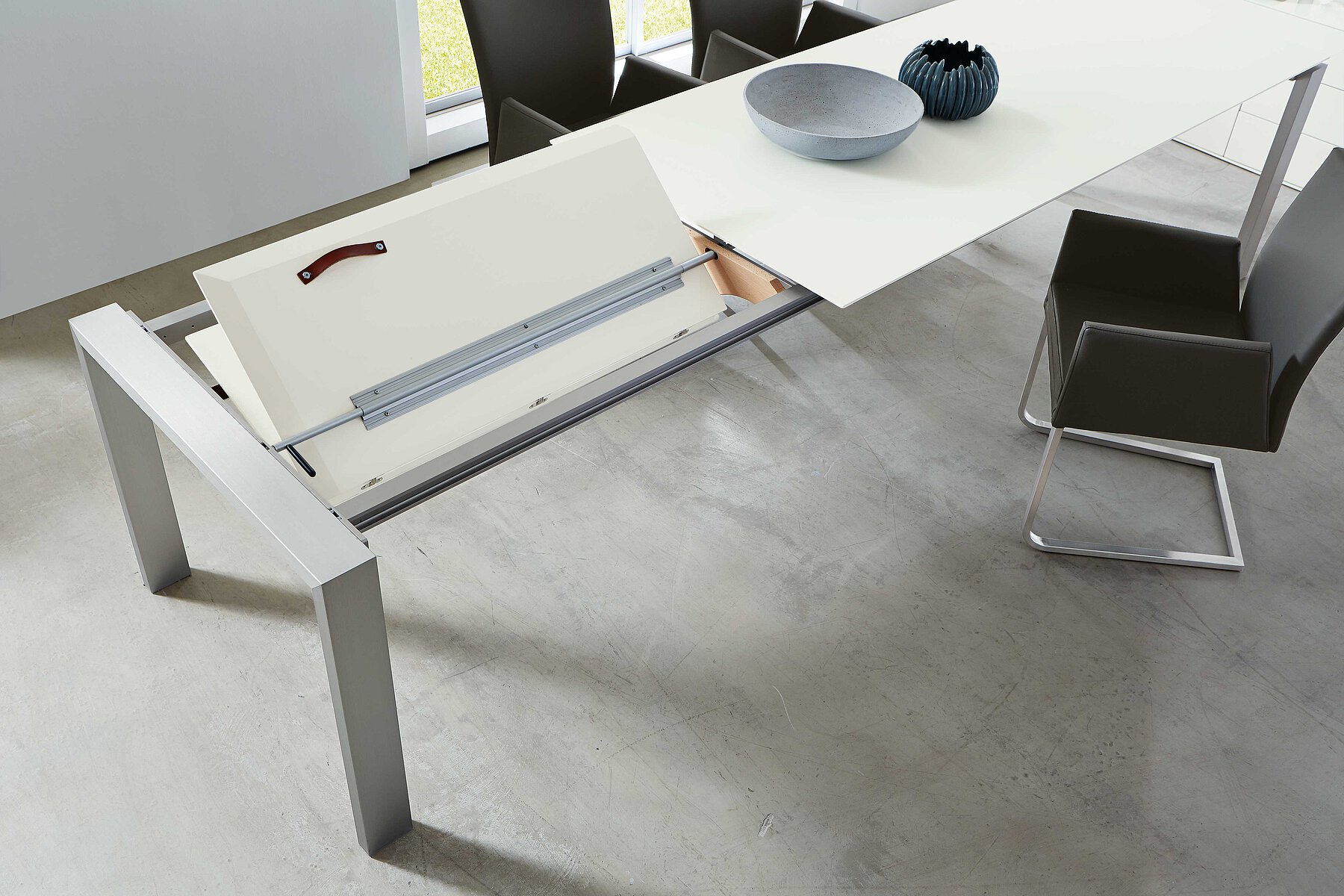

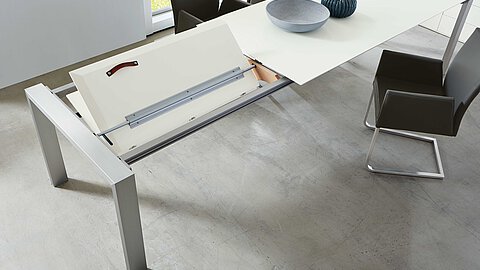

Optimize the ALU 44 UNIVERSAL slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/ FM Stop folding mechanism or, for wooden frames, with FFM flat folding mechanism. Please contact us.

Combinable

The ALU 44 UNIVERSAL slide system is suitable for all table leaf materials and can be combined with all attachment parts.

Installation height

about 47 mm

Recommended table length

1,200 – 2,500 mm, closed

Insert sizes

1 x 500 mm / 1 x 800 mm / 2 x 500 mm / 1 x 1,000 mm

Profile and stability design

Develop your own frame and rack solution. For more information see here.

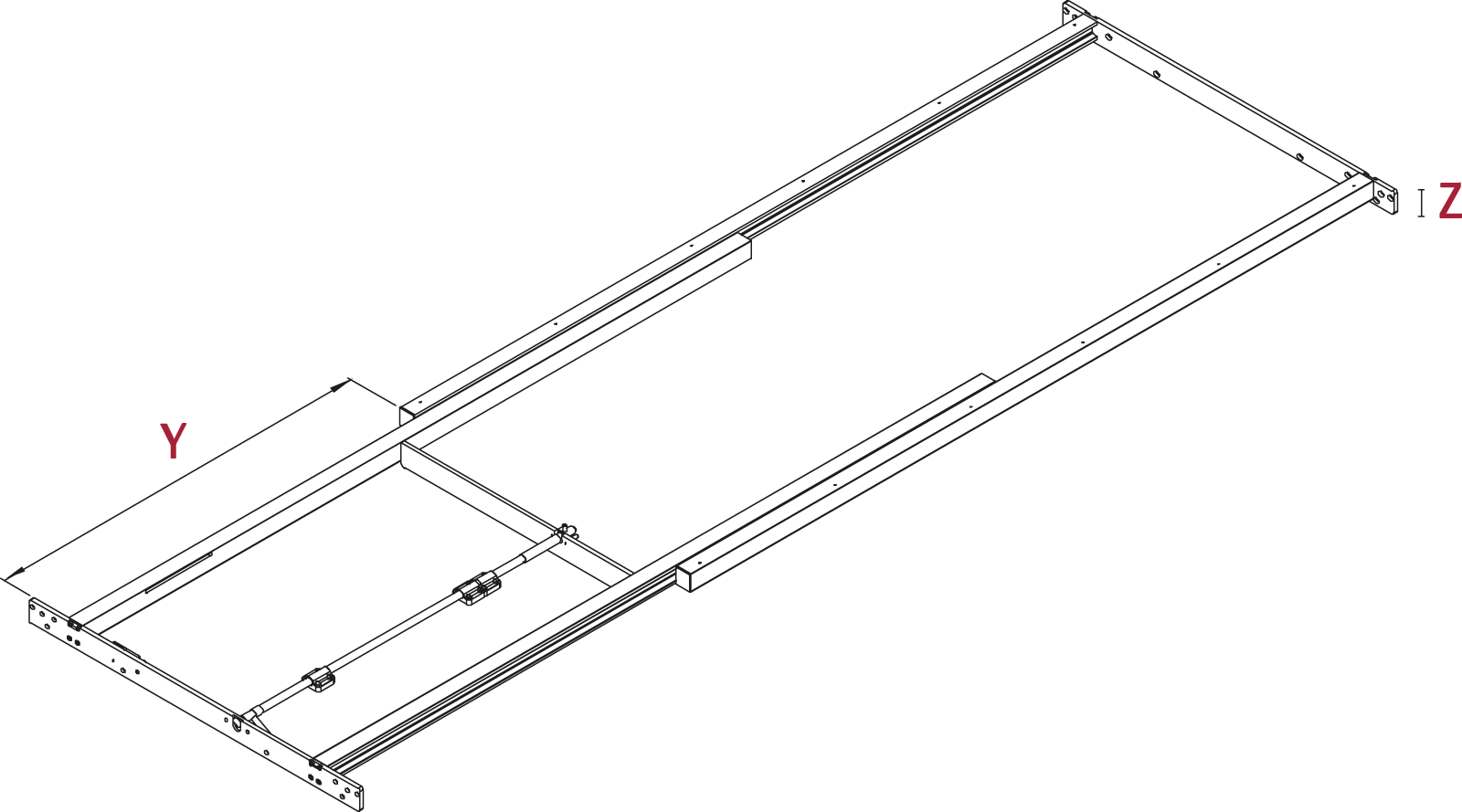

Technical drawings

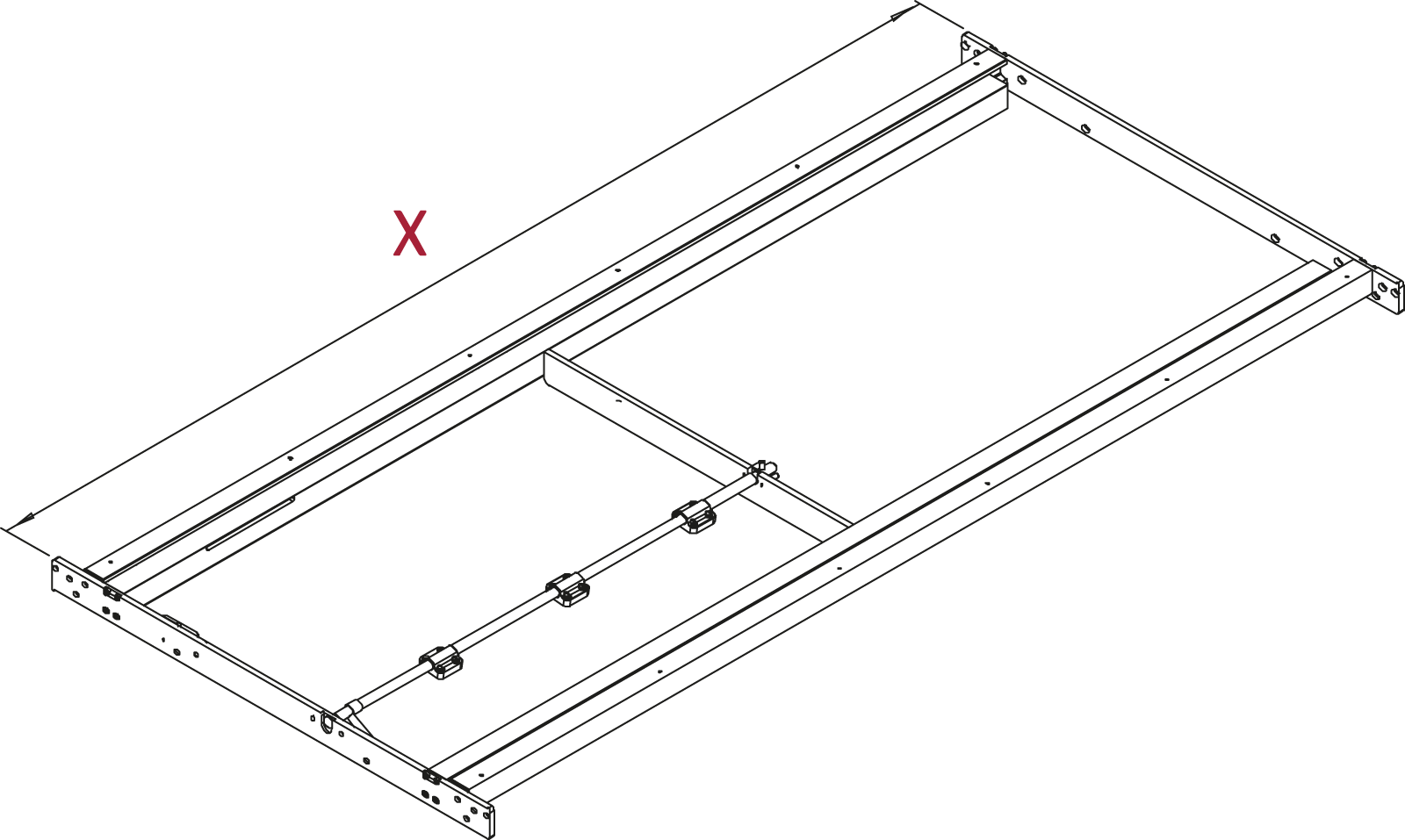

Frame construction | closed

Frame construction | open

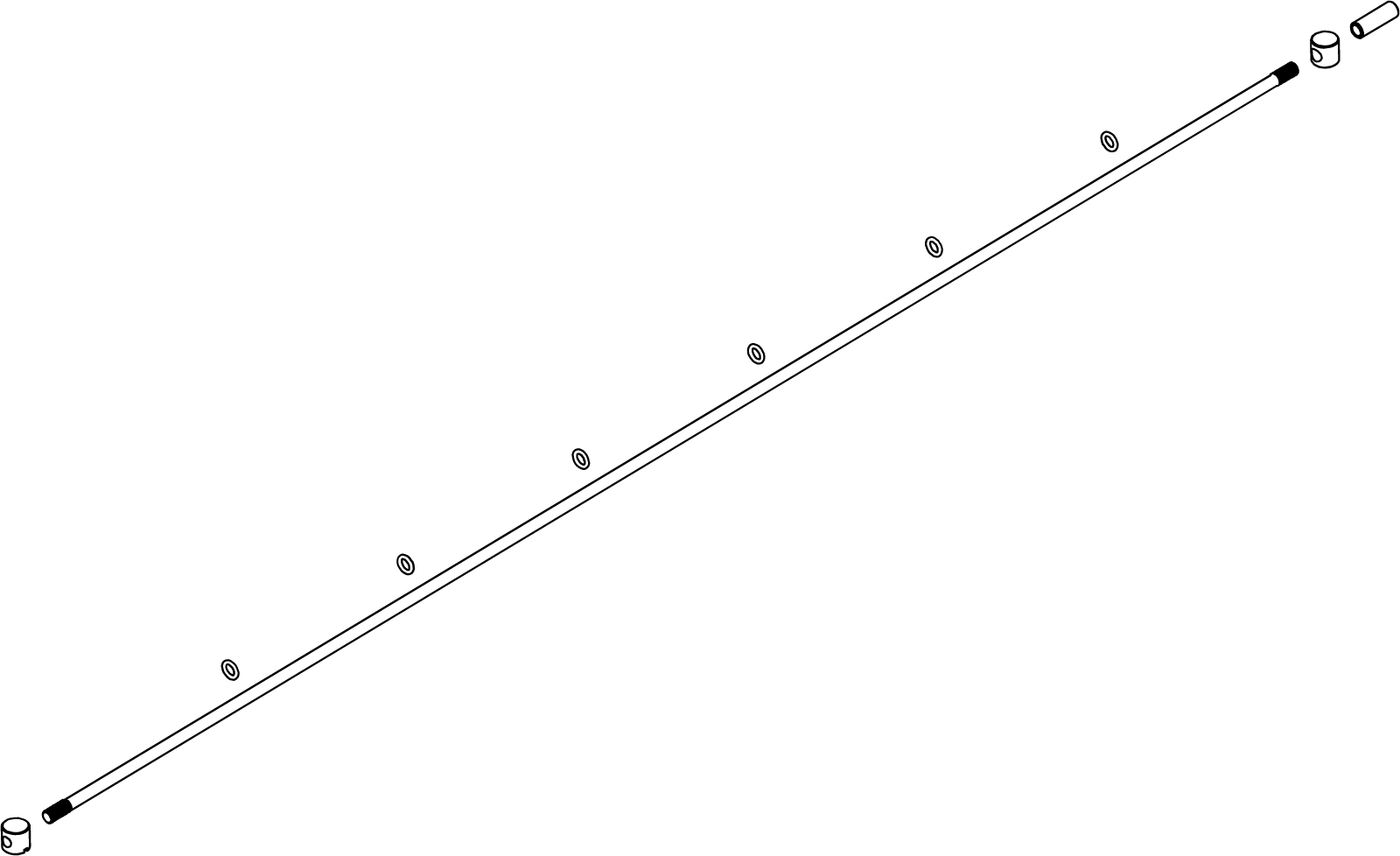

Steel shaft
