ALU FRONTSLIDE Telescope 55

For extra long tables

Benefits

Material

Aluminum – available in various anodized colors.

Load capacities

The ALU 55 FRONTSLIDE TELESCOPE Standard slides are dimensioned for 90 kg under a uniformly applied load. All specifications always depend on the material thickness and the tensile and flexural strength.

Telescopic slide

The ALU 55 FRONTSLIDE TELESCOPE slide system is available as a single and as a telescopic pull-out system.

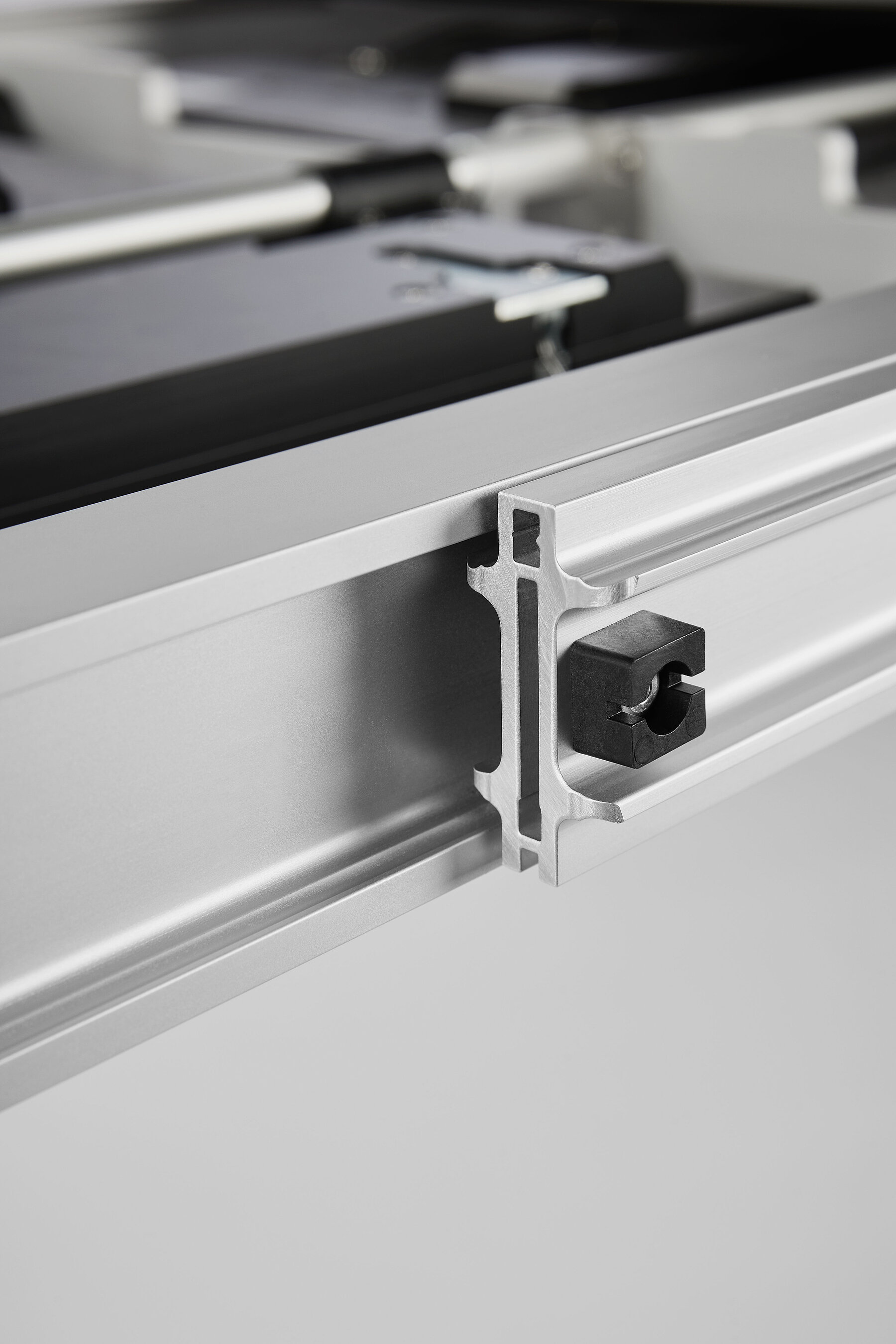

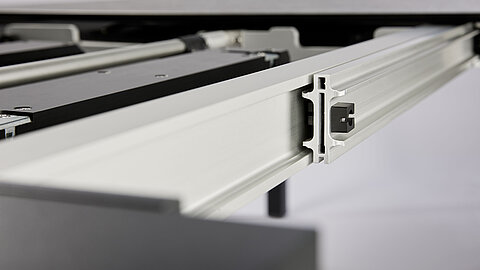

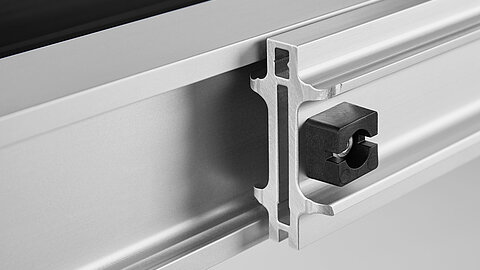

Reinforced middle profile

The ALU 55 FRONTSLIDE TELESKOP slide system is equipped with a reinforced middle profile and offers special stability. It is suitable for closed table sizes of 800 – 2,400 mm and table sizes of up to 3,600 mm in an opened condition.

Outdoor

Outdoor compatible

Accessories

Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with the FFM flat folding mechanism. Please contact us.

Installation height

about 58 mm

Recommended table length

1,000 – 2,400 mm, closed

Insert sizes

1 x 500 mm / 1 x 800 mm / 2 x 500 mm / 1 x 1,000 mm

Profile and stability design

Develop your own frame and rack solution. For more information see here.

Technical drawings

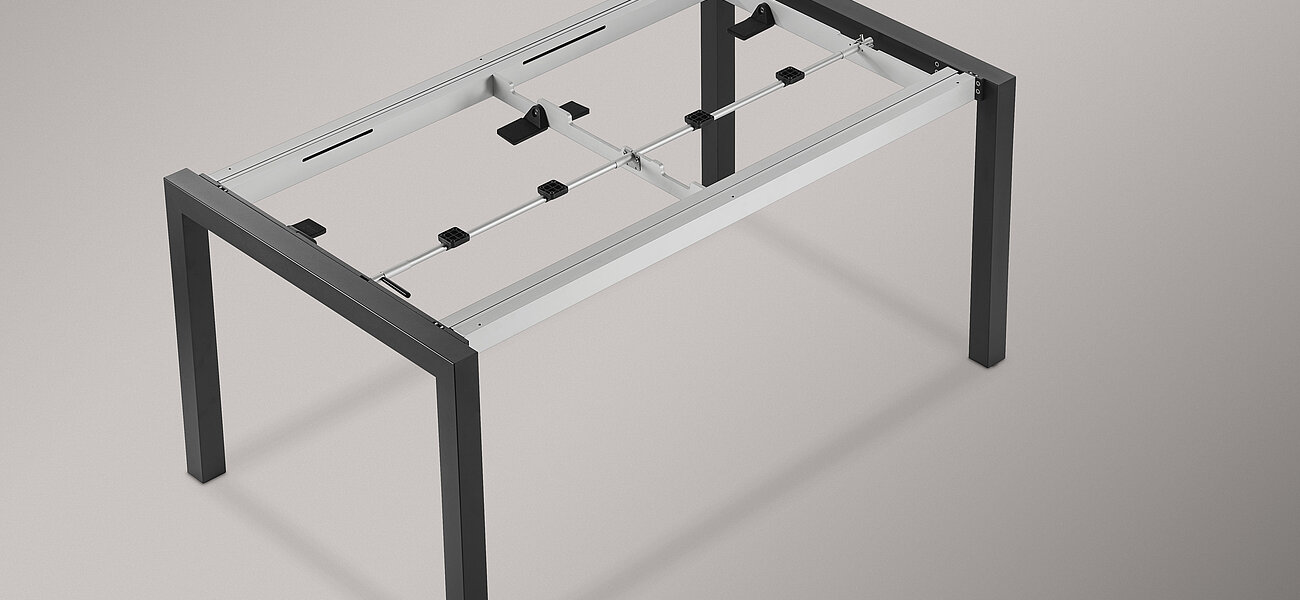

Frame construction | closed

Frame construction | open

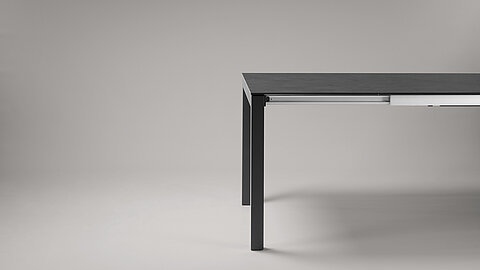

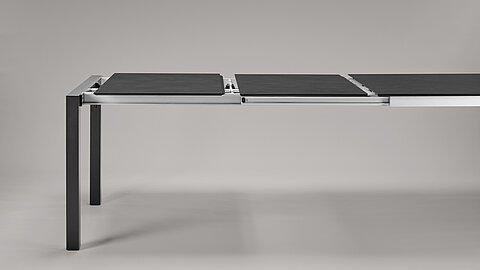

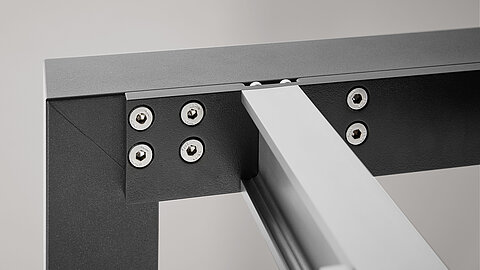

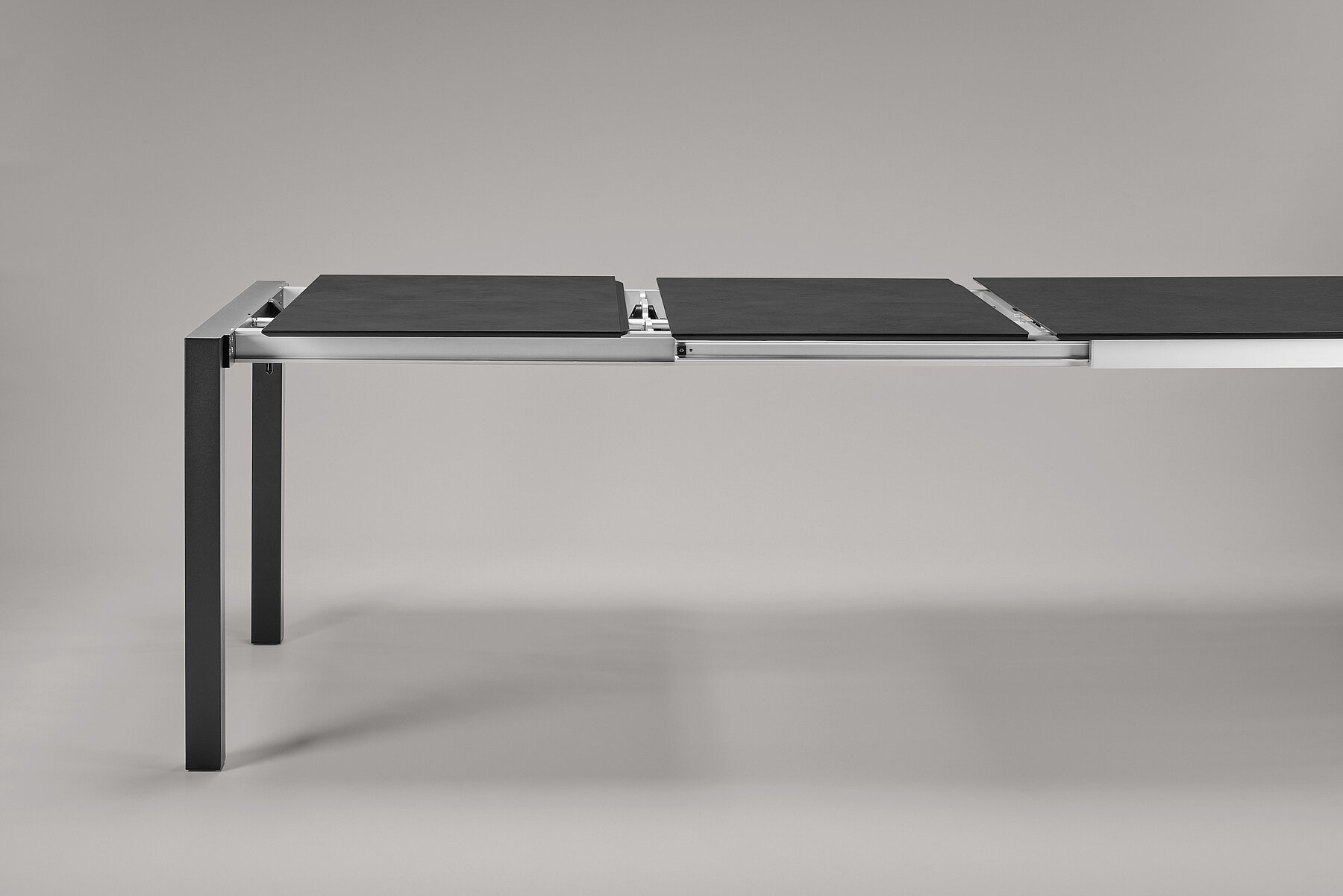

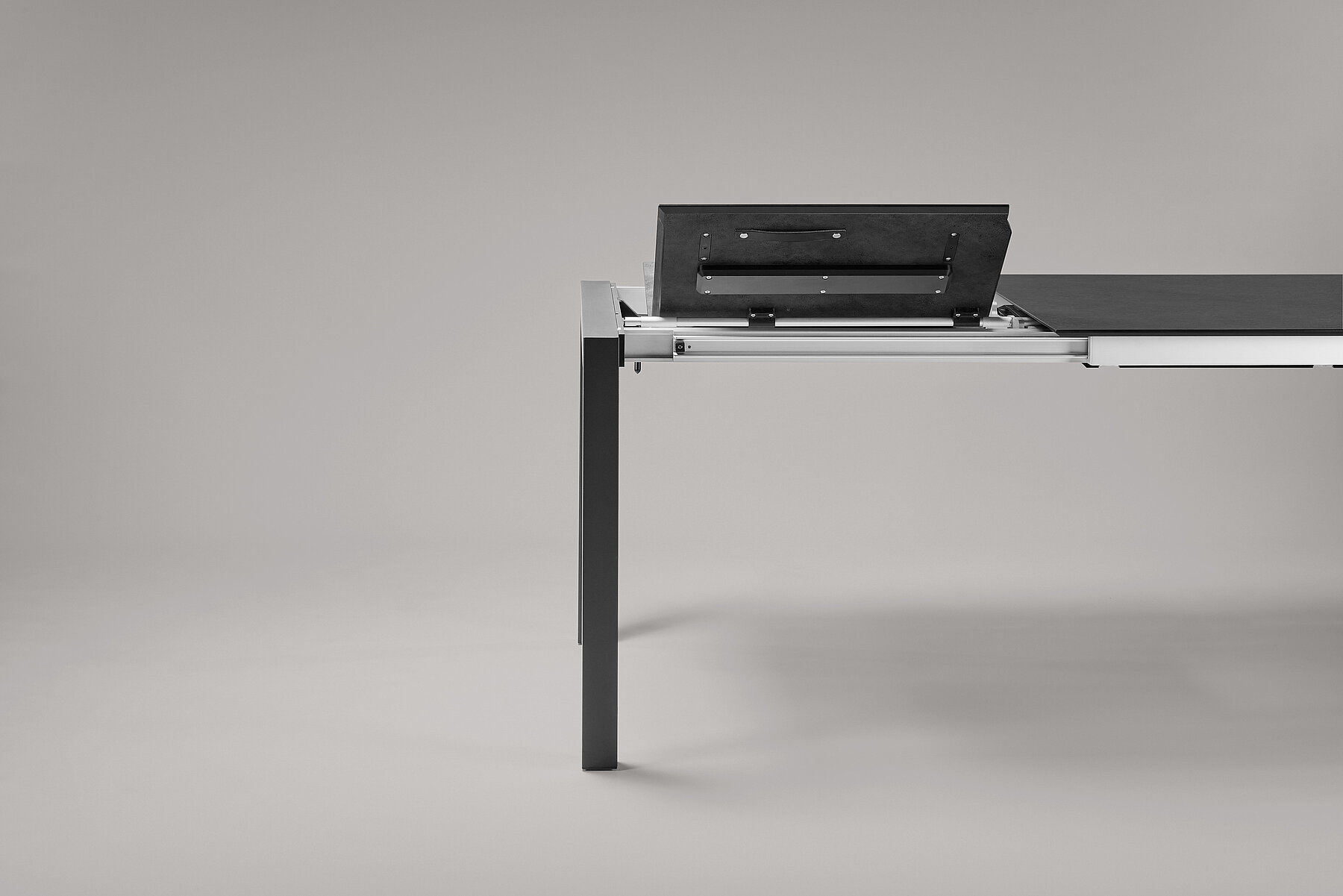

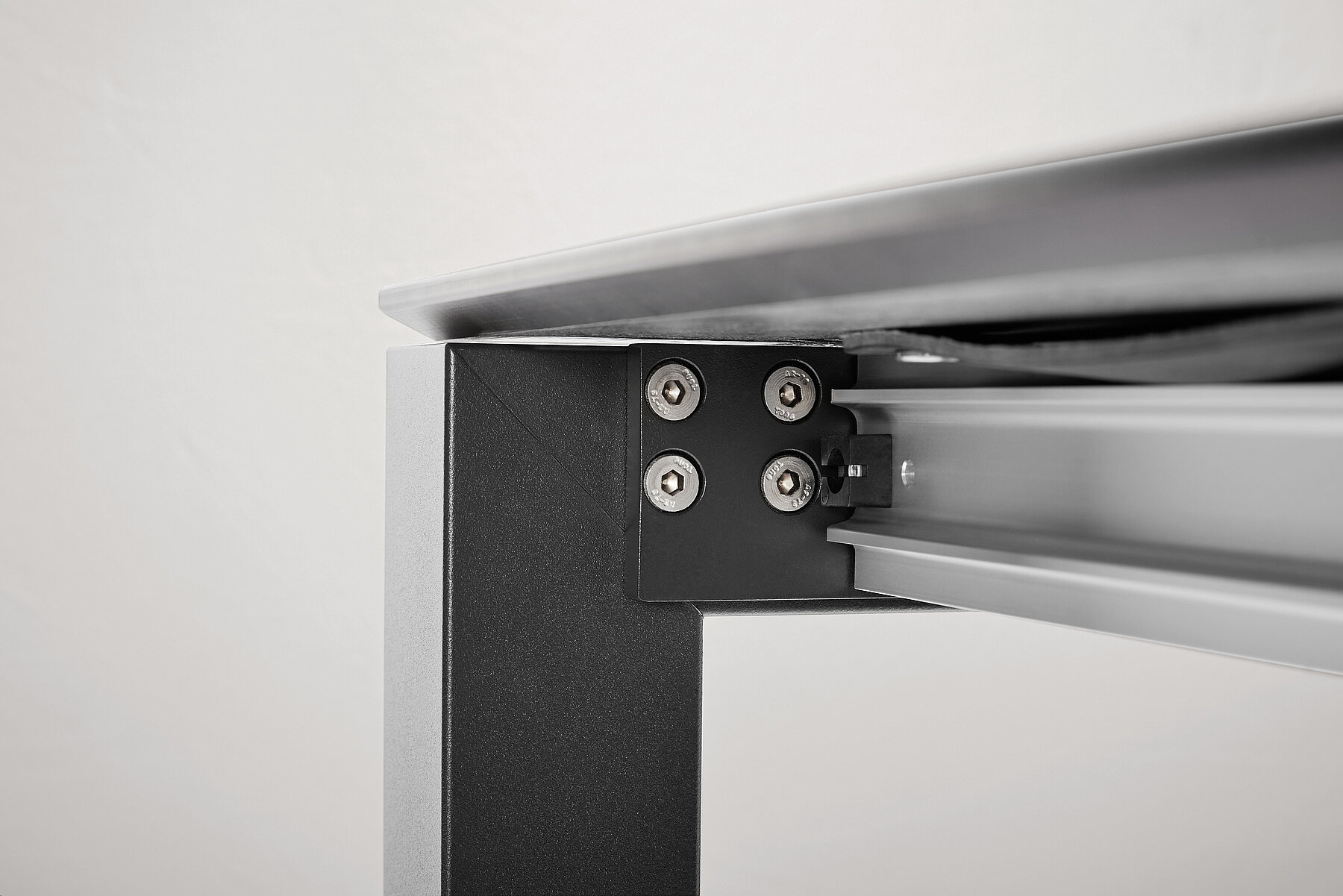

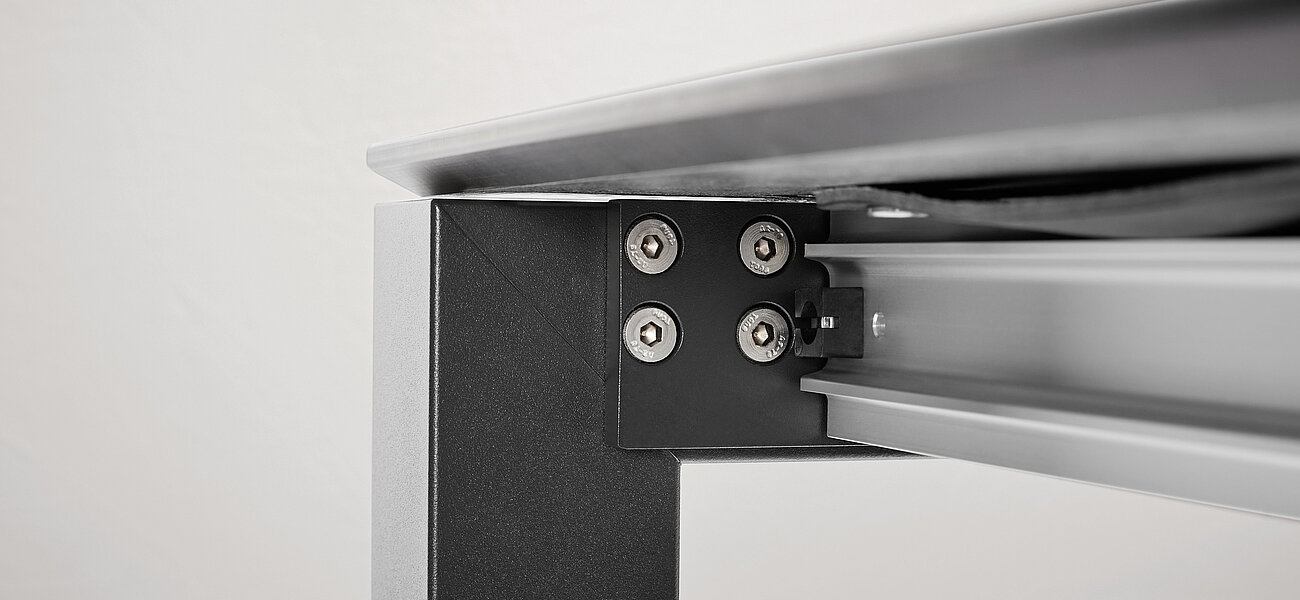

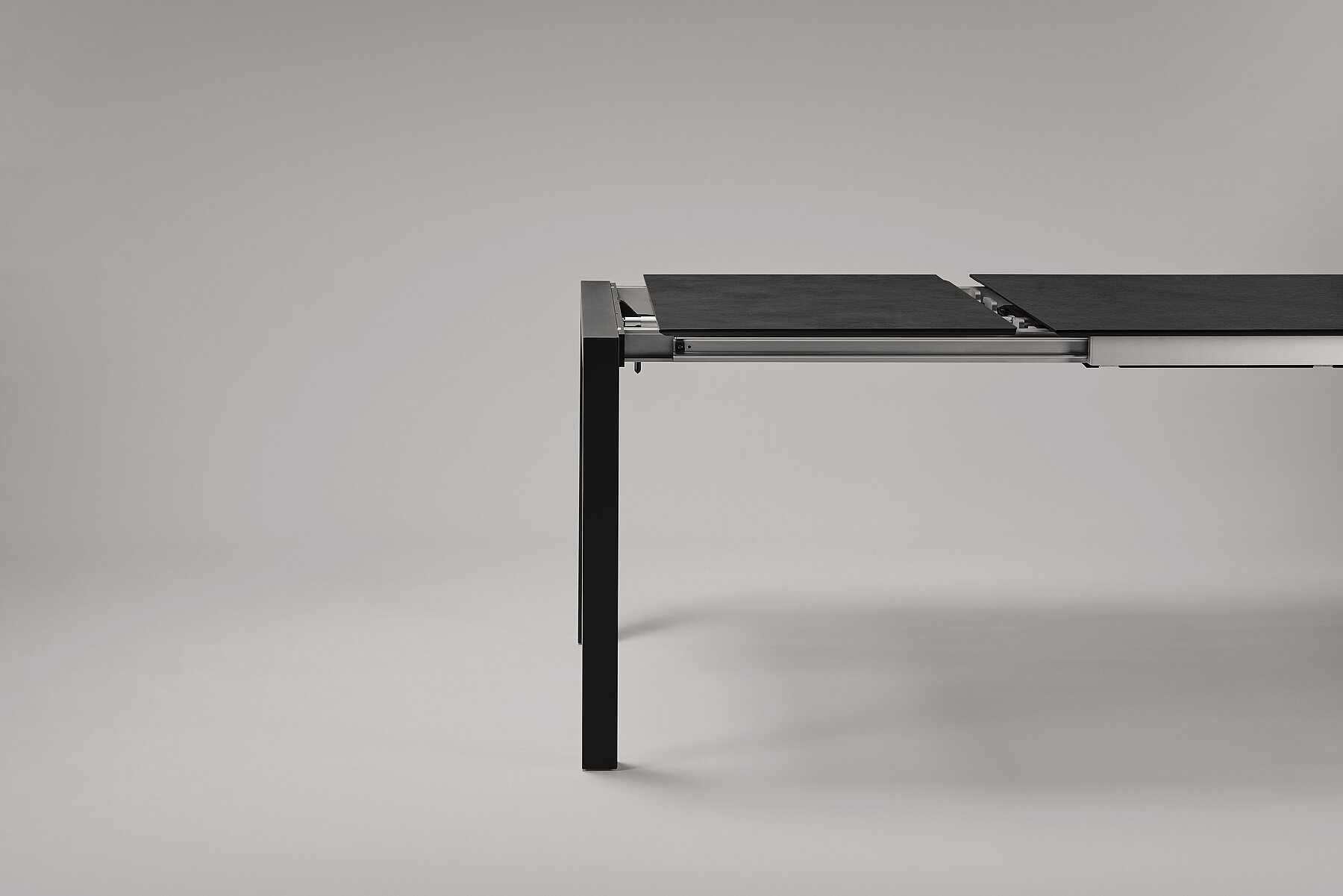

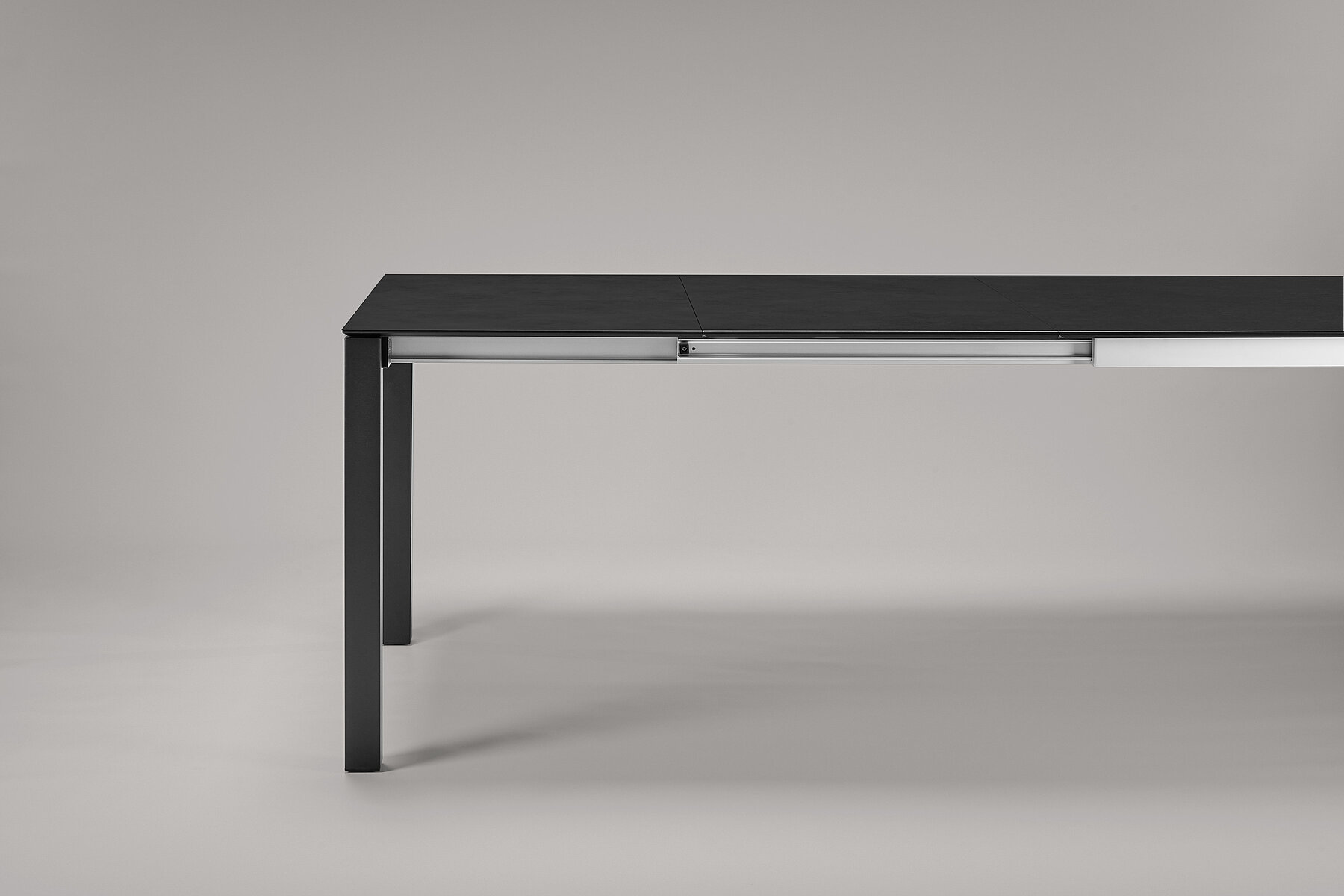

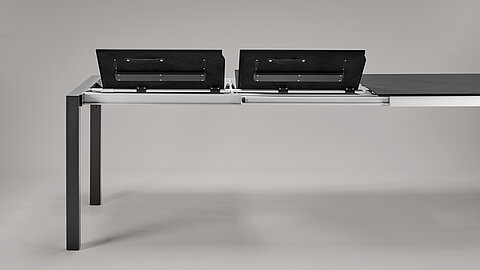

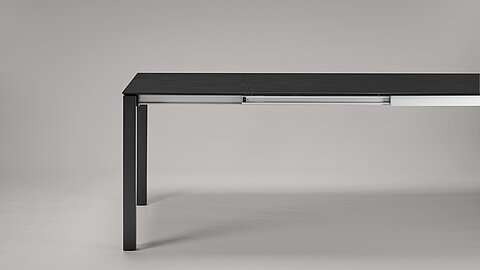

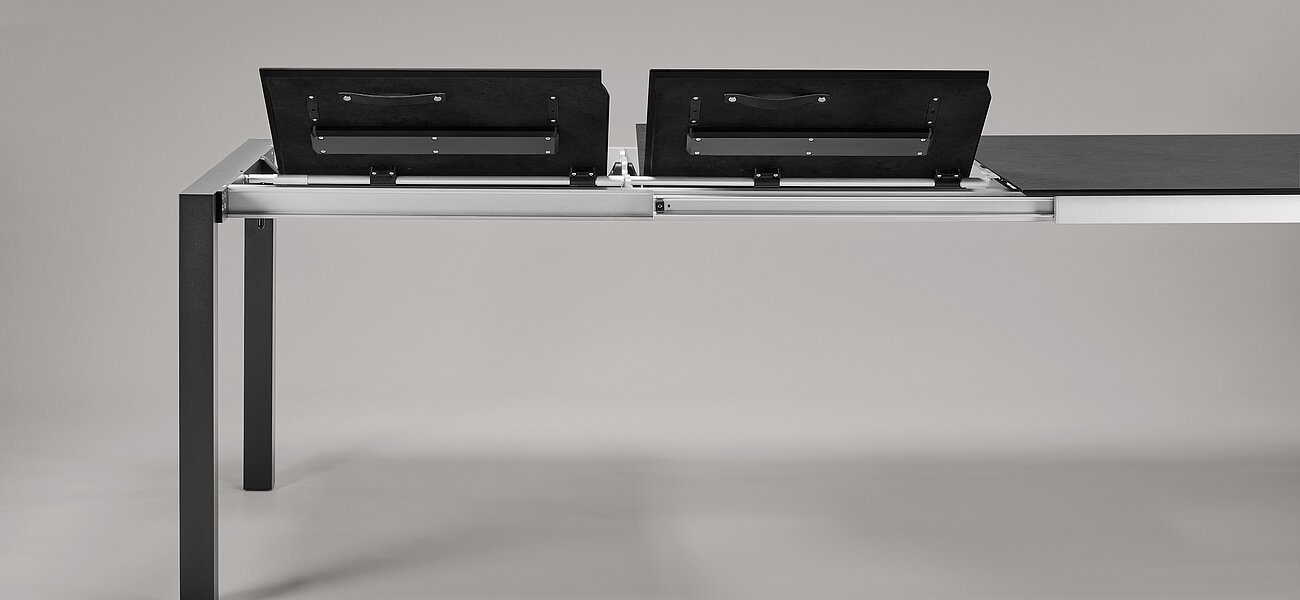

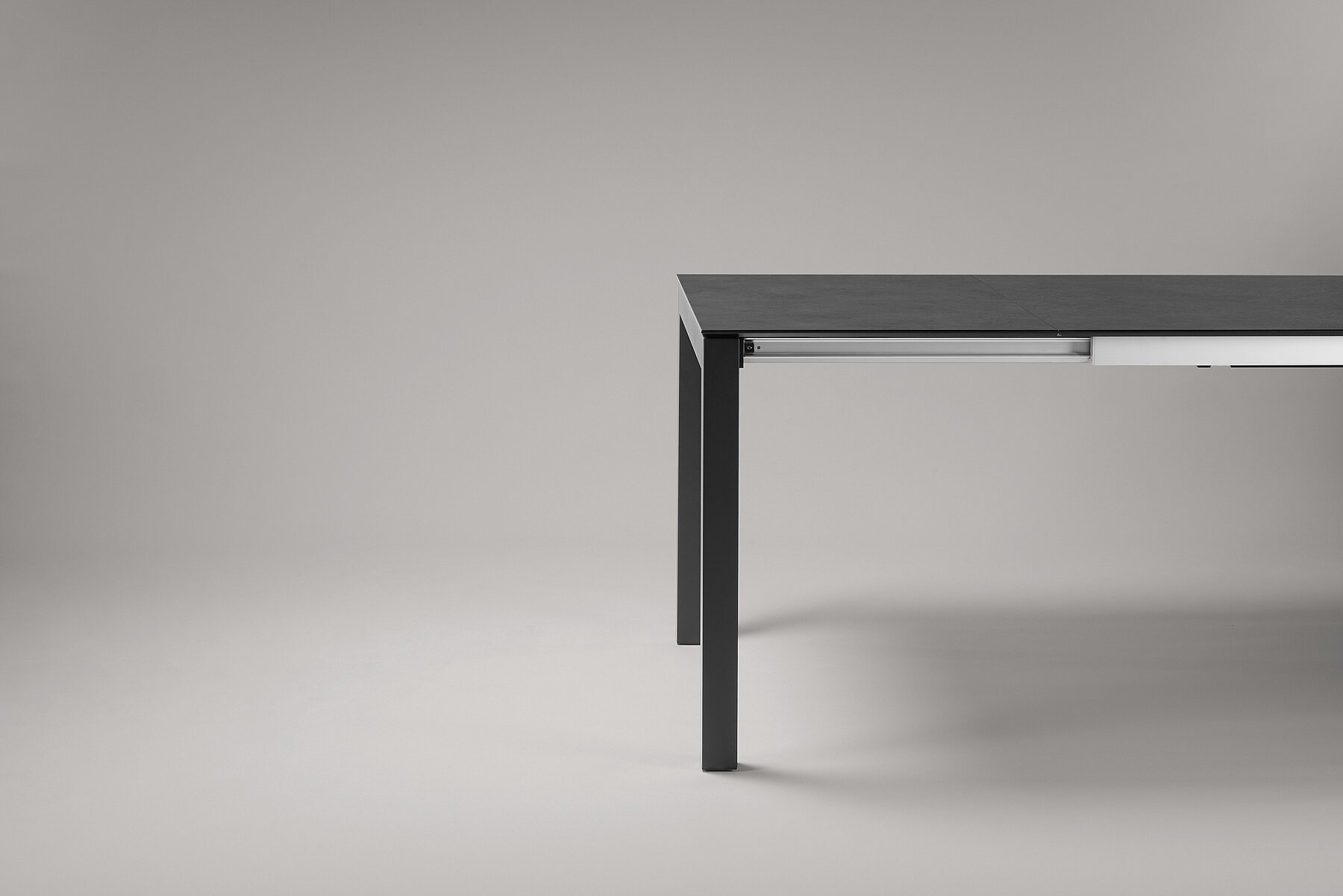

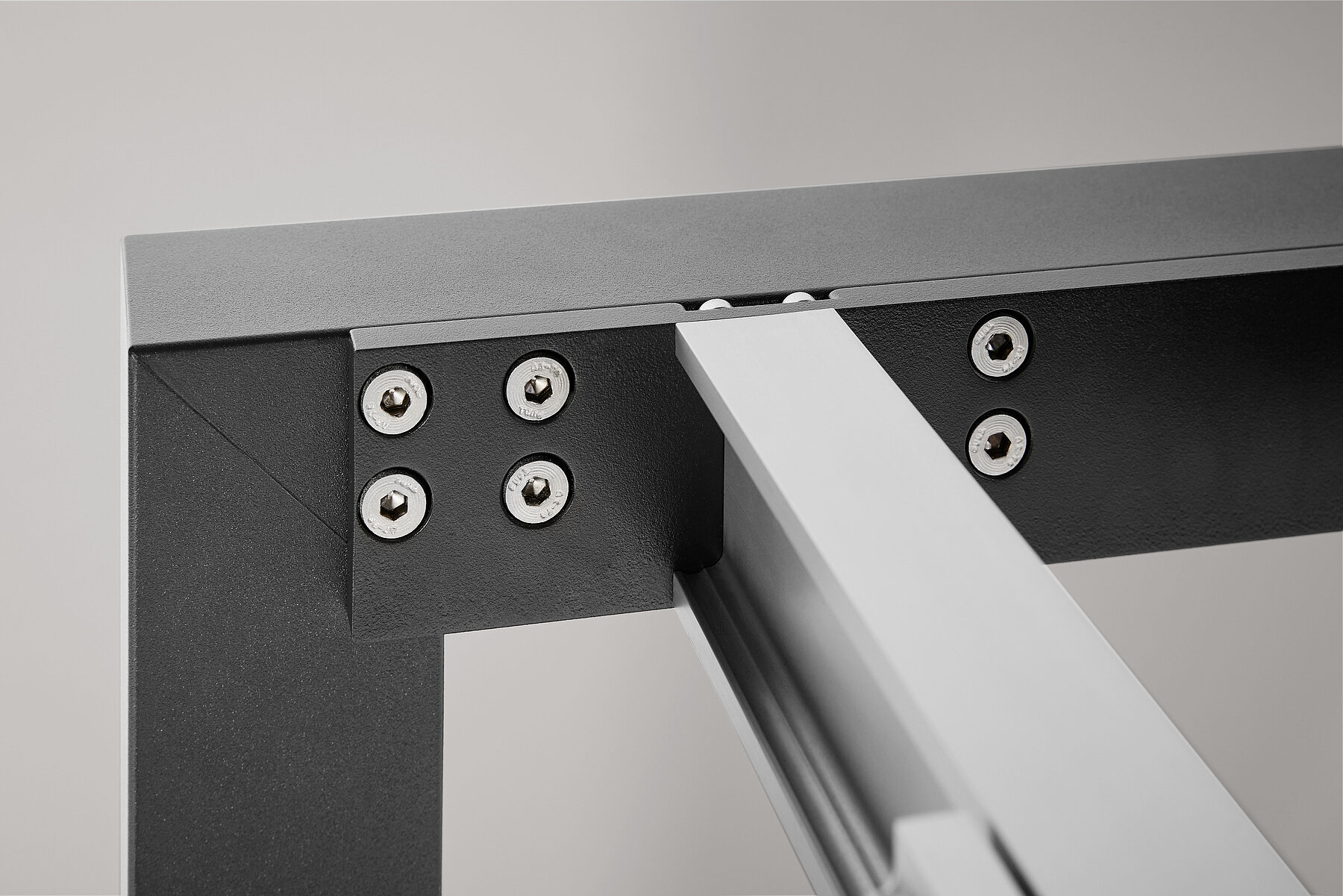

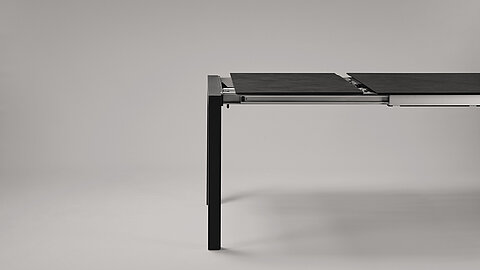

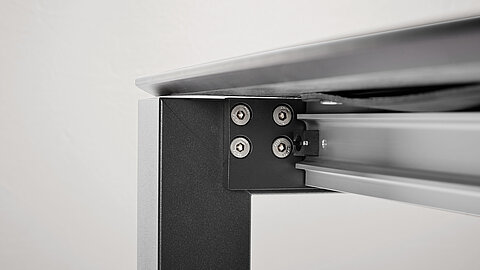

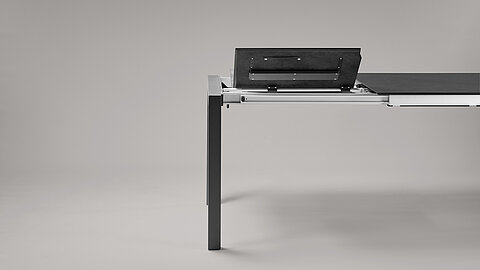

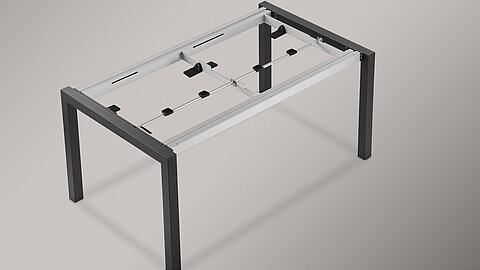

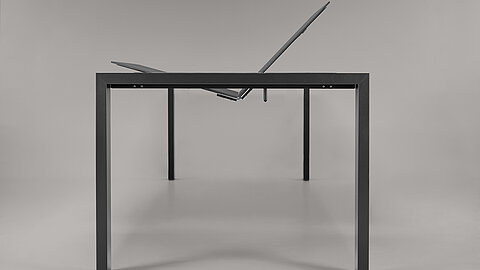

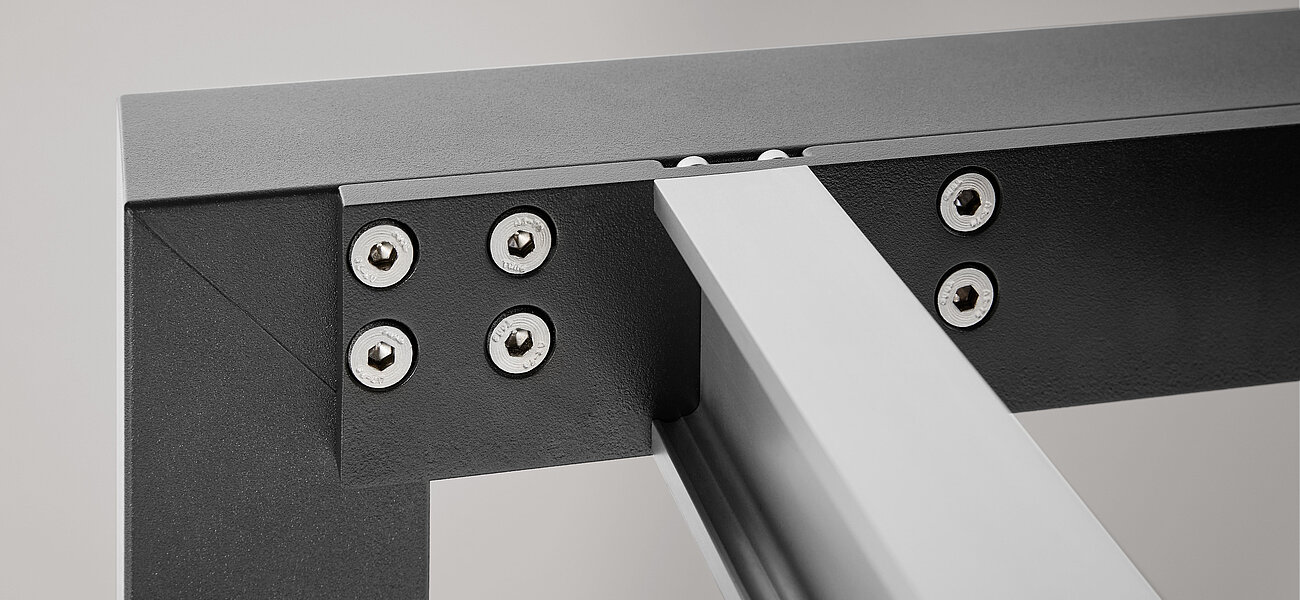

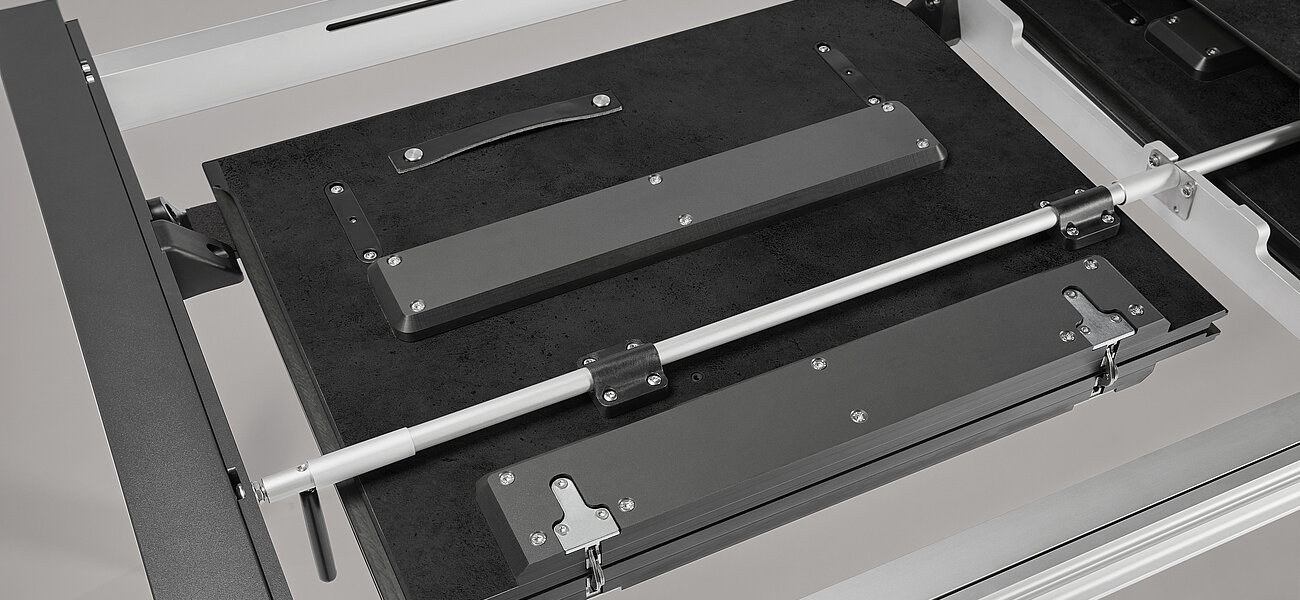

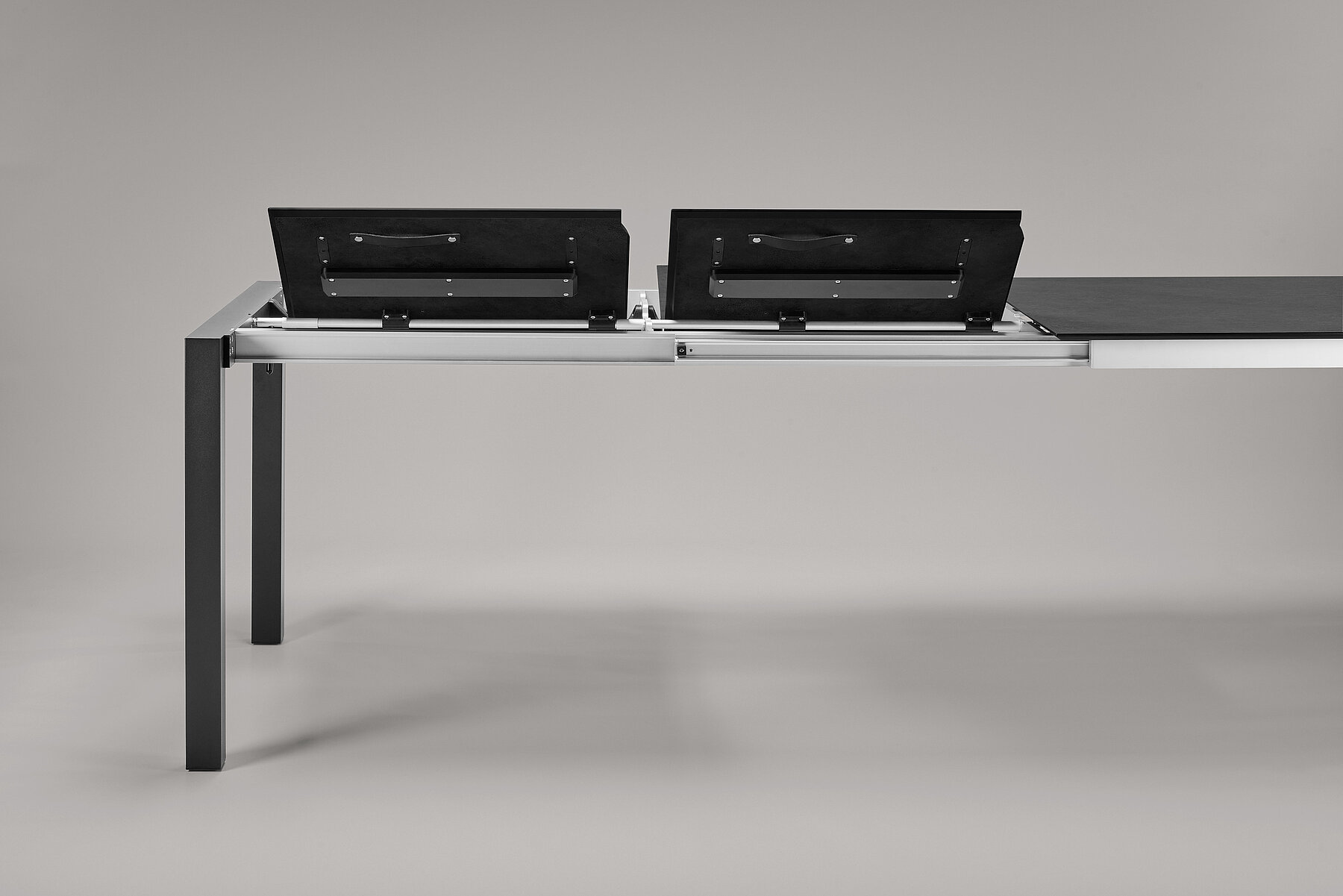

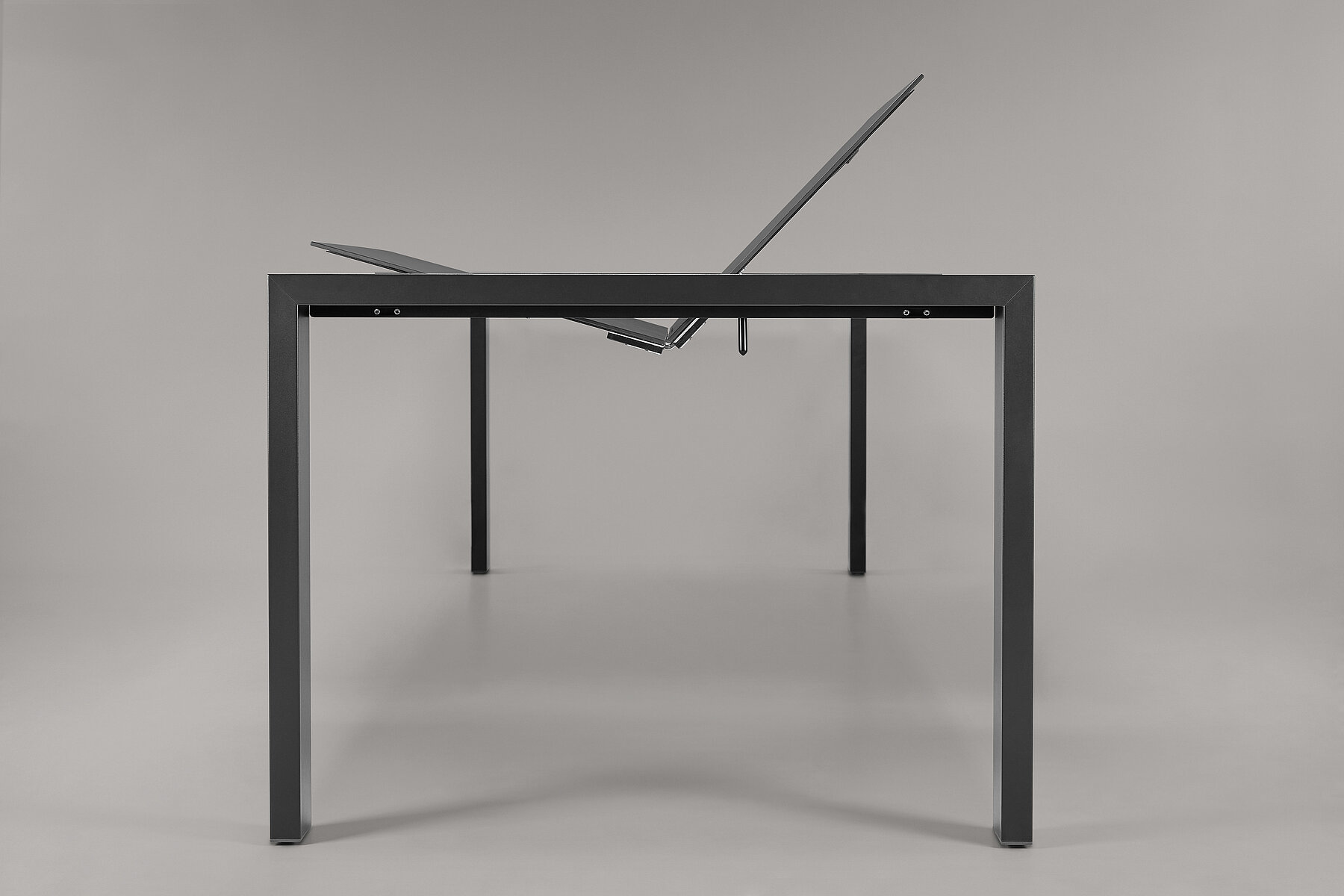

Product images
