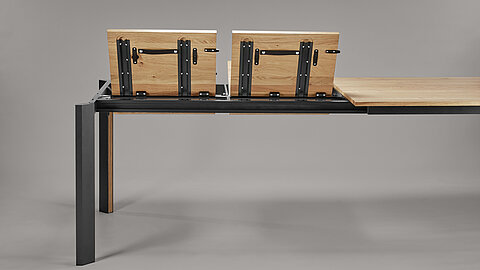

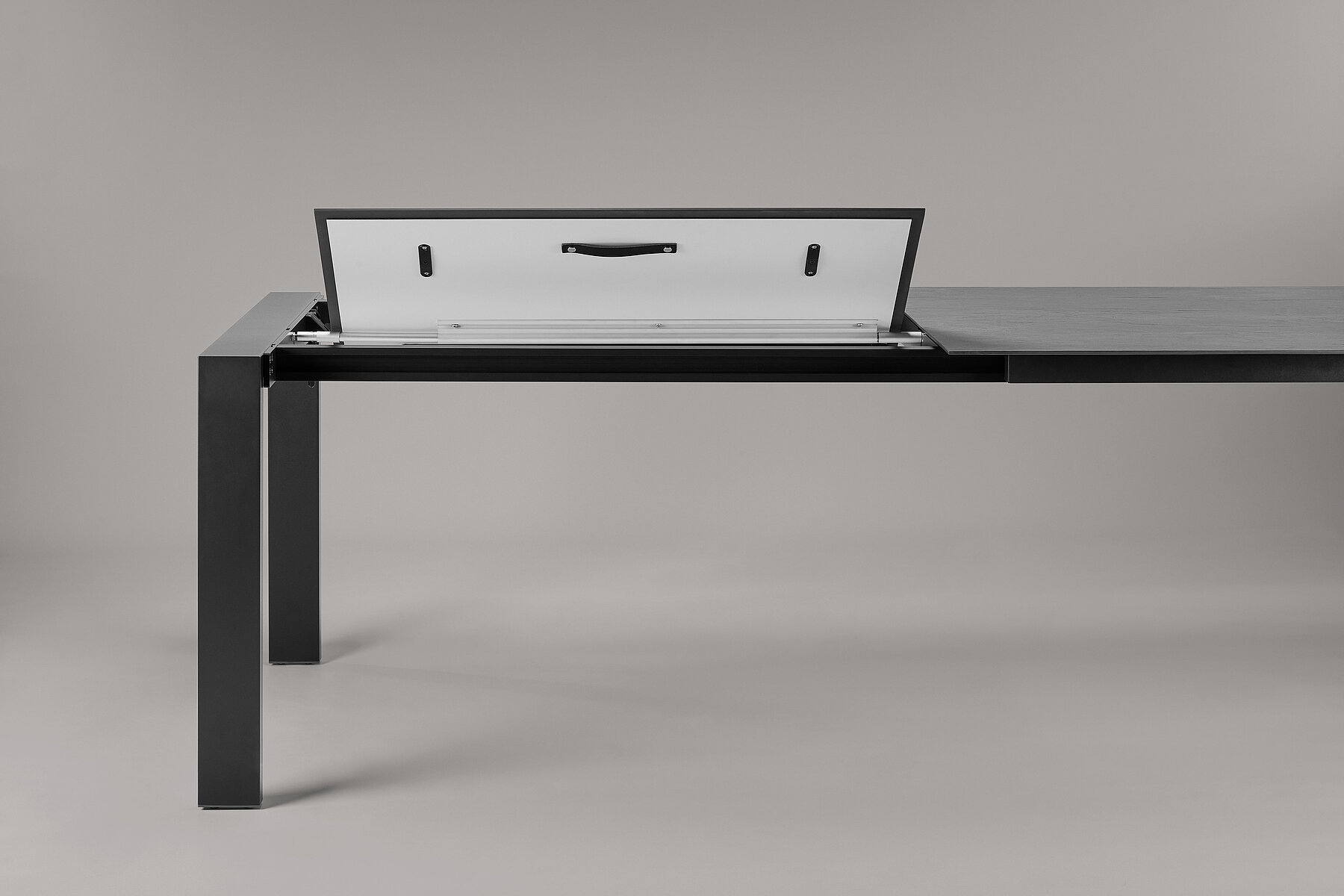

ALU FRONTSLIDE UNIVERSAL 55

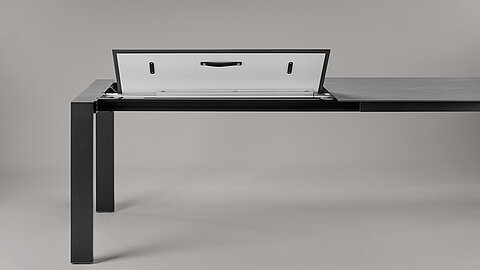

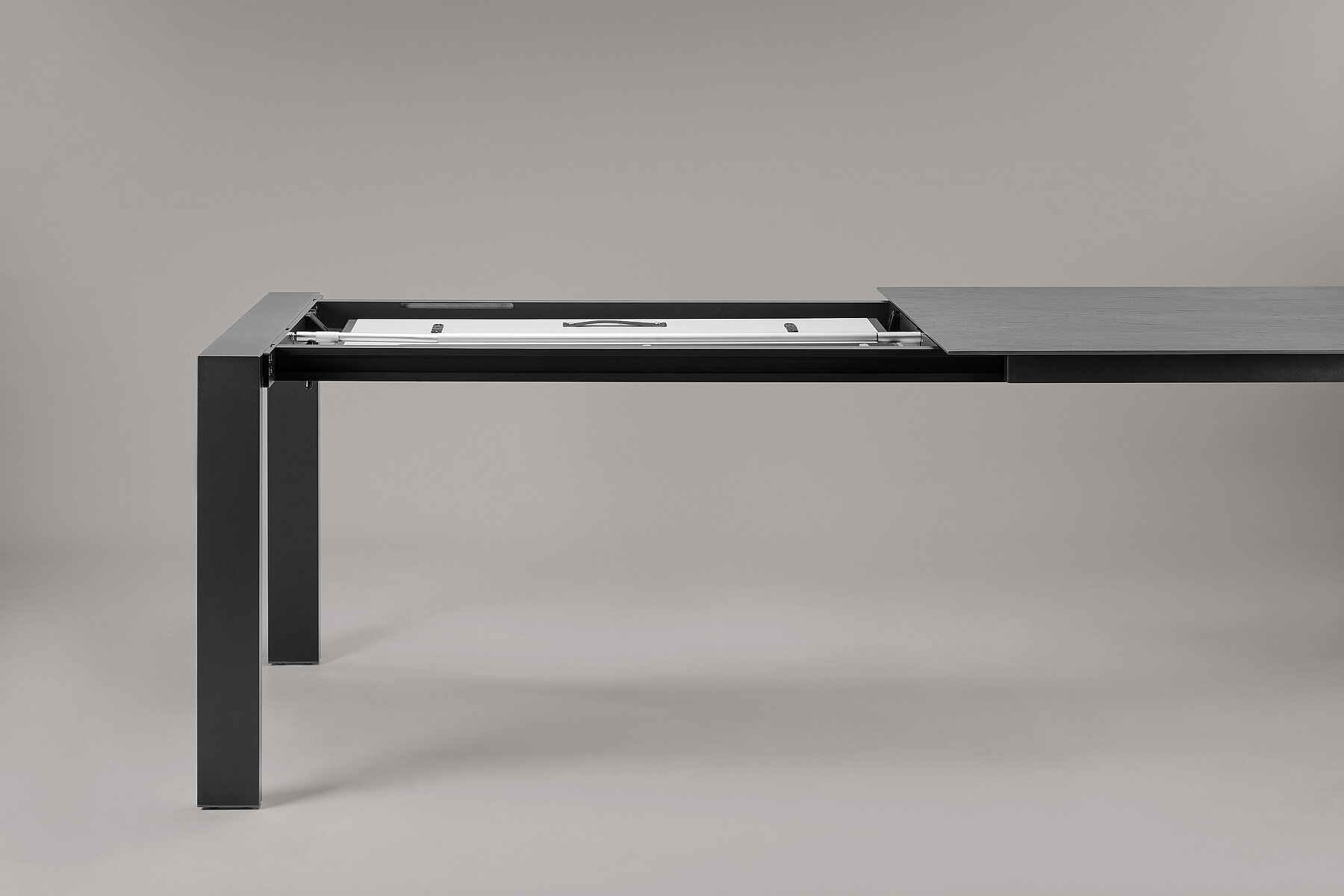

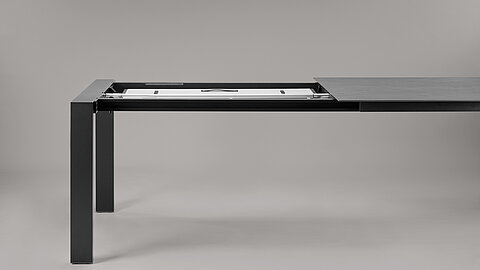

For tables with front end-extension

Benefits

Material

Aluminum – anodized or powder coated. Available in various colors. The precise profile geometry optimizes the handling and provides a high level of safety.

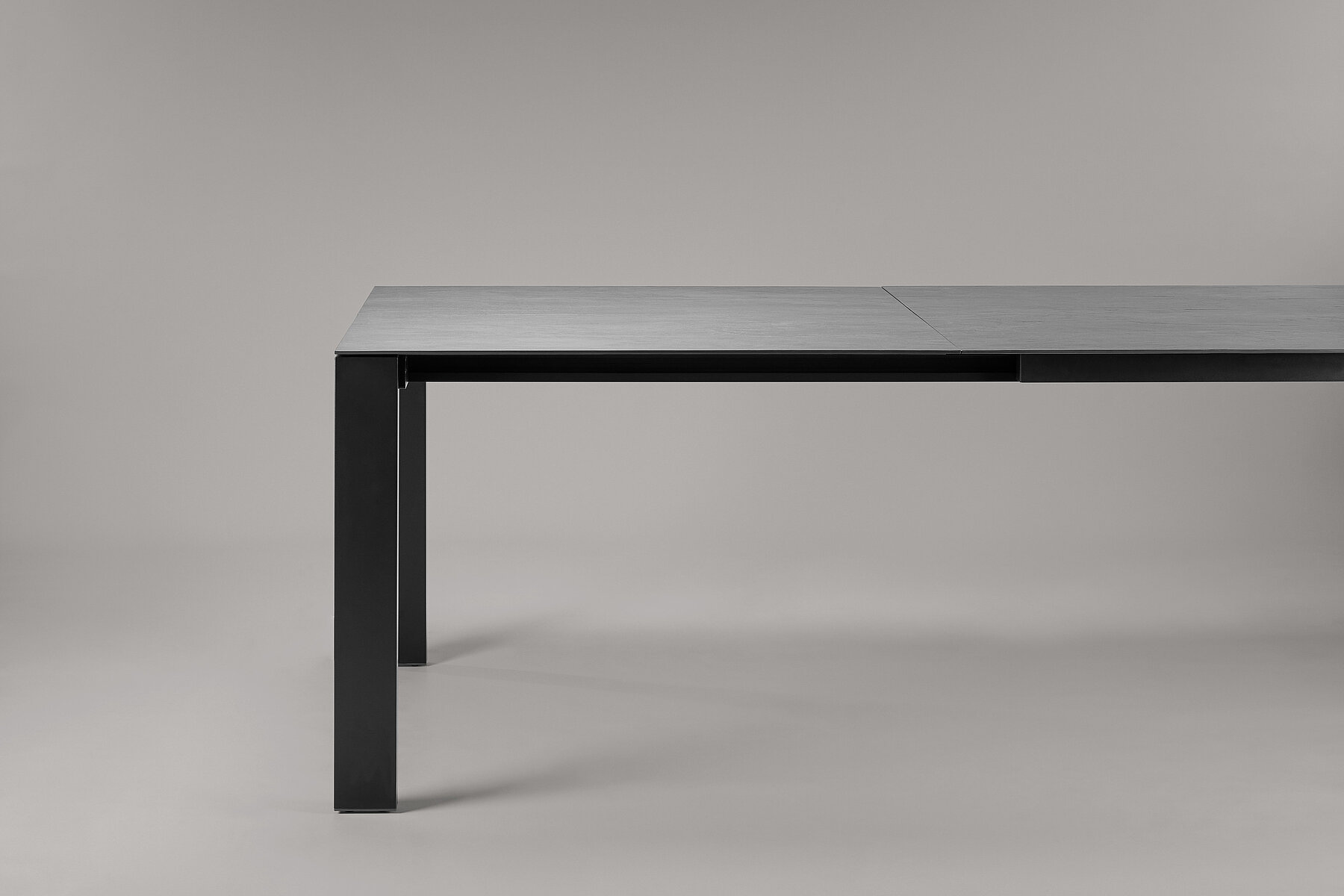

Attractive table design

Designed for tables with or without function. The low installation height permits a particularly attractive table design.

Load capacities

The ALU FRONTSLIDE UNIVERSAL 55 standard slides are designed for 115 kg under a uniformly applied load and an installation height of only about 59 mm. All specifications depend on the material thickness as well as the tensile and flexural strength.

State of the art

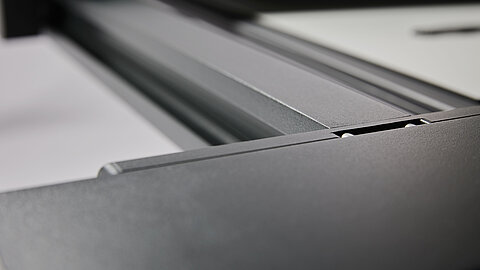

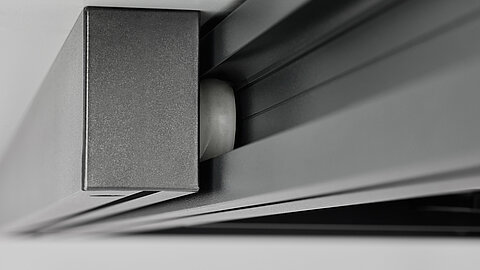

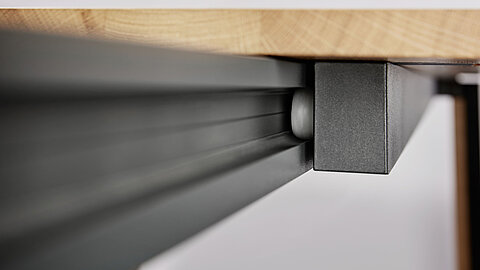

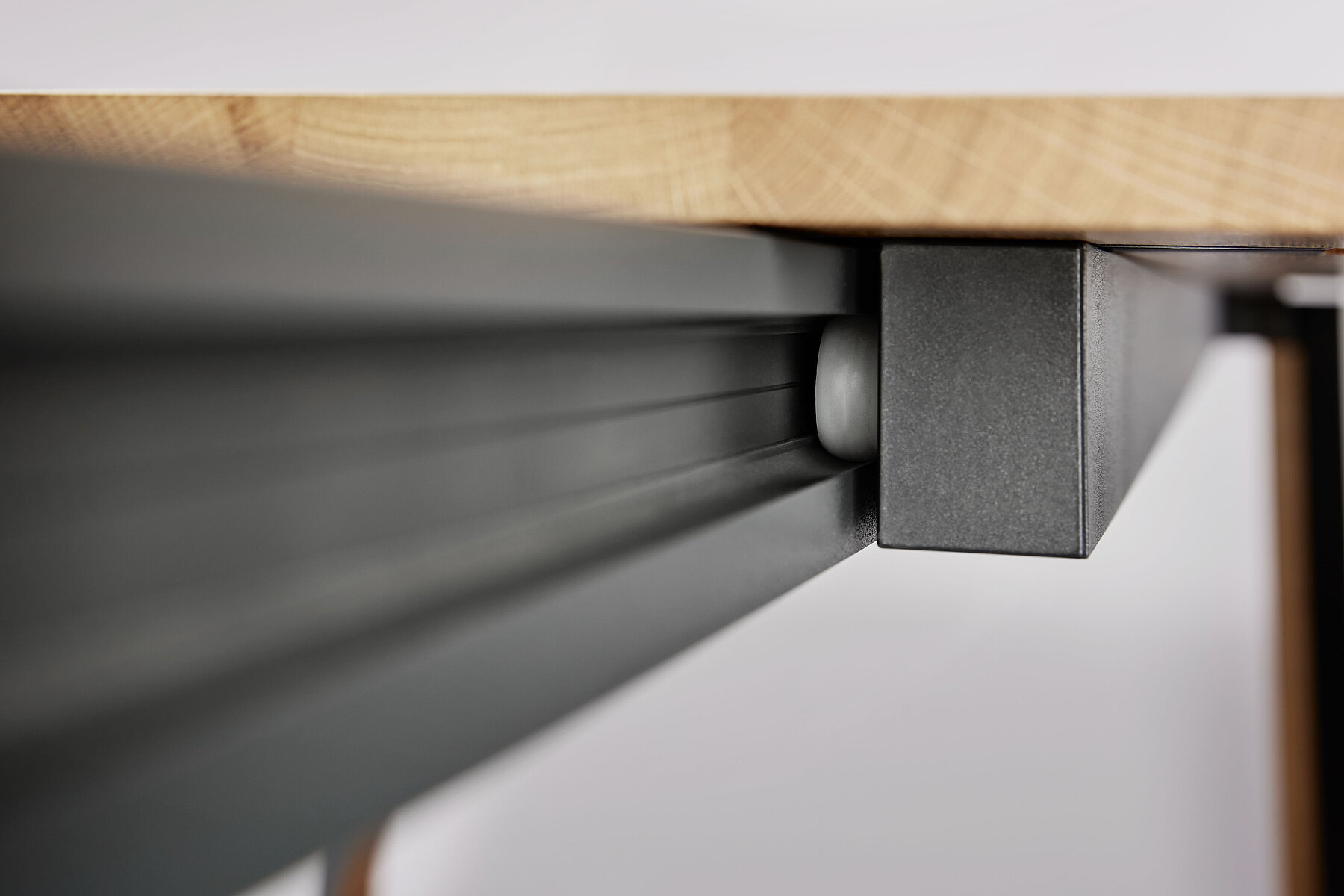

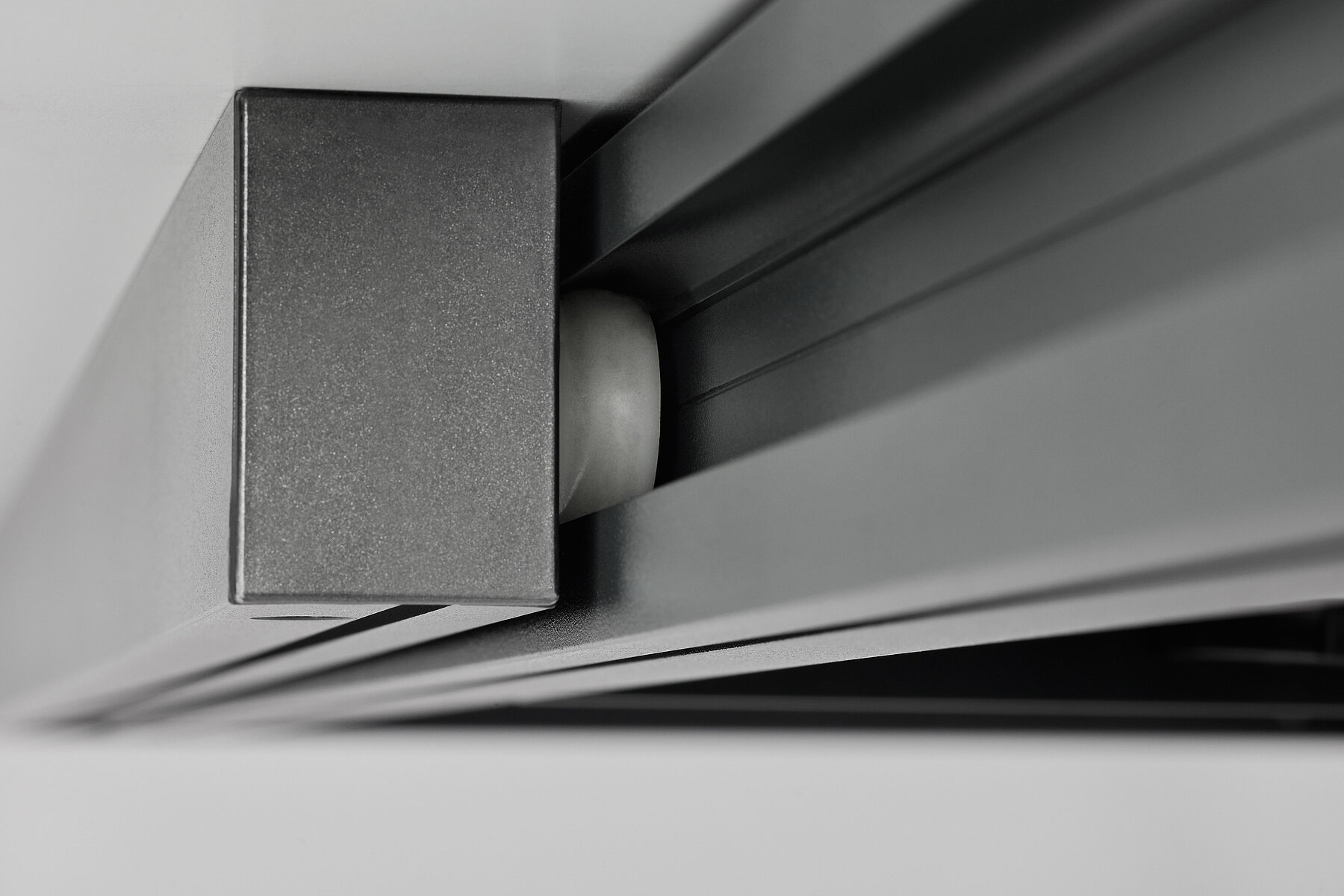

The ALU FRONTSLIDE UNIVERSAL 55 slide system is equipped with high-quality, ball-bearing rollers for particularly smooth, consistent and easy running. It offers you state-of-the-art technology and is particularly abrasion-resistant and impact-resistant.

Outdoor

Outdoor compatible

Brake & Accessories

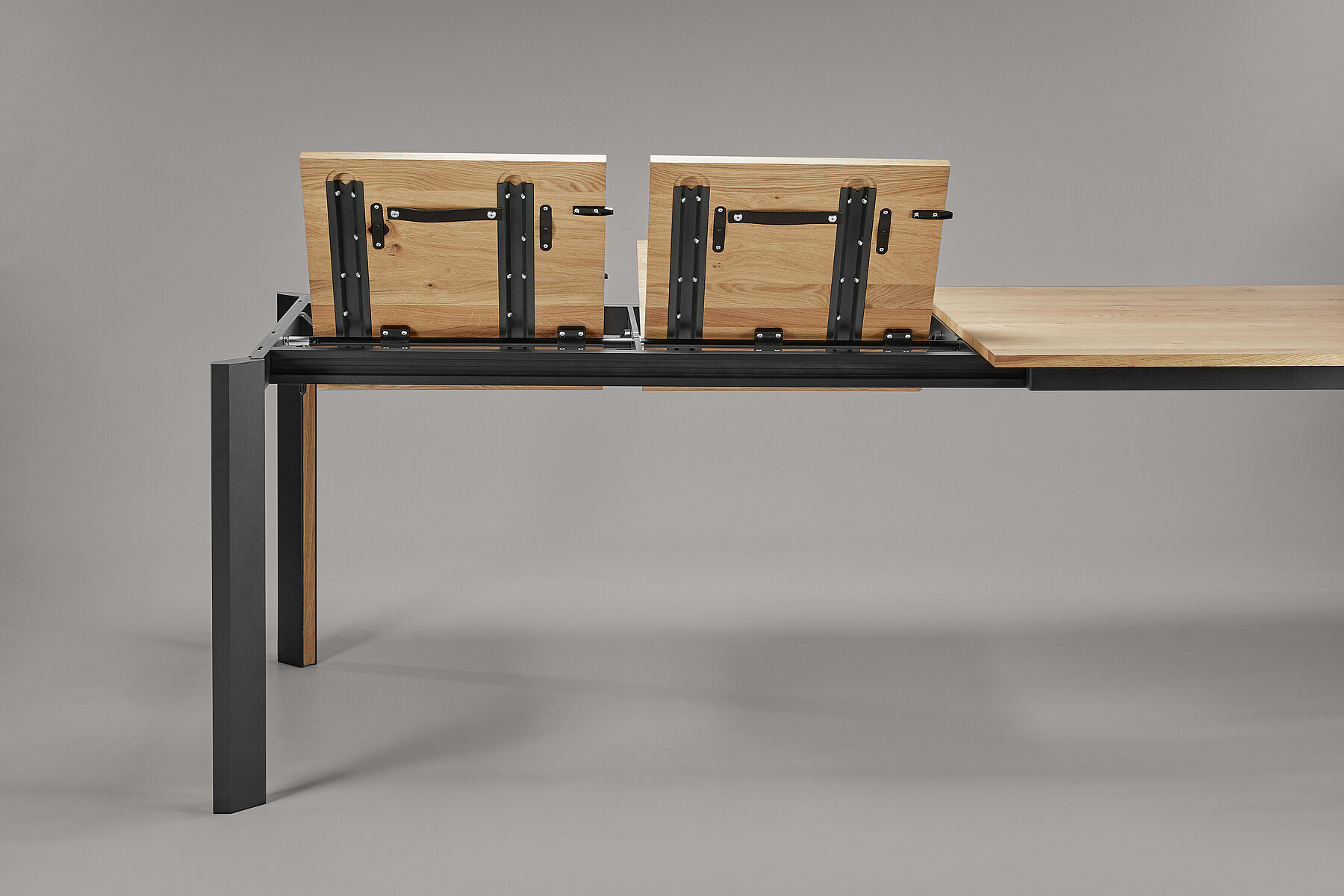

Optimize the ALU FRONTSLIDE UNIVERSAL 55 slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism, or, for wooden frames, with the FFM flat folding mechanism. Please contact us.

Combinable

The ALU FRONTSLIDE UNIVERSAL 55 slide system is suitable for all table leaf materials and can be combined with all attachment parts.

Installation height

about 59 mm

Recommended table length

1,200 – 2,400 mm, closed

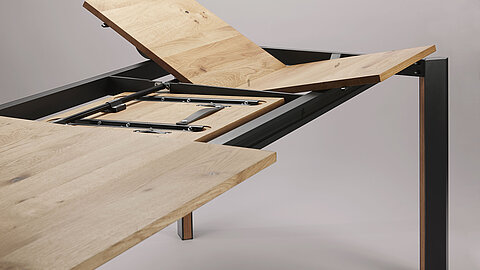

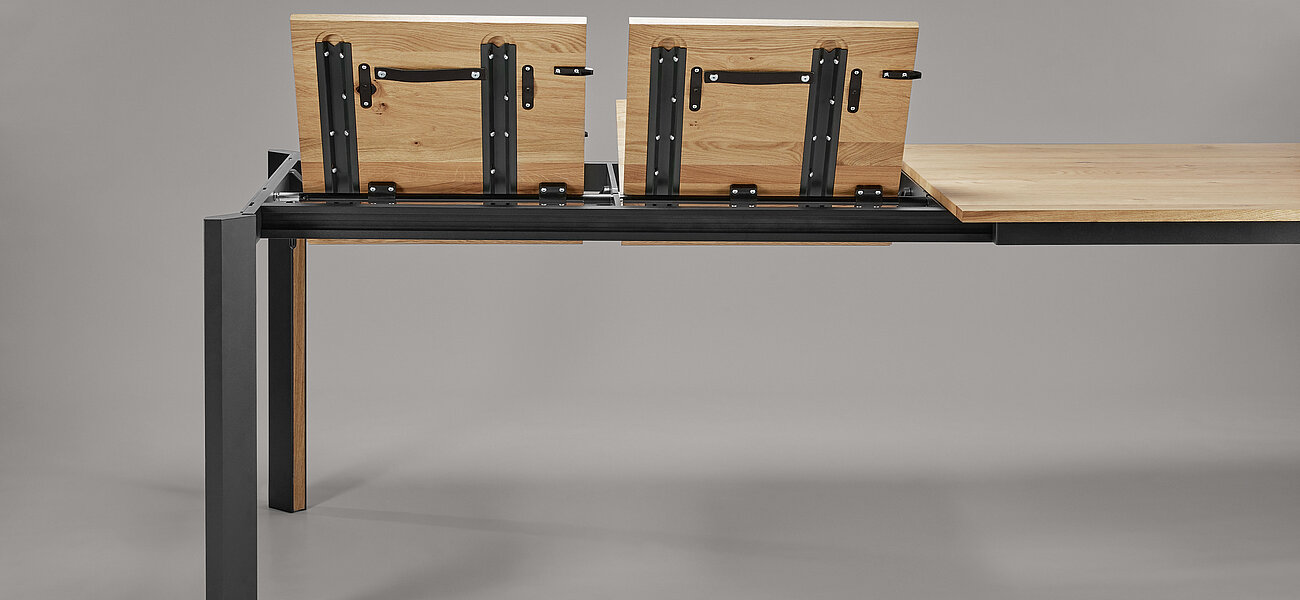

Insert sizes

1 x 500 mm / 1 x 800 mm / 2 x 500 mm / 1 x 1,000 mm

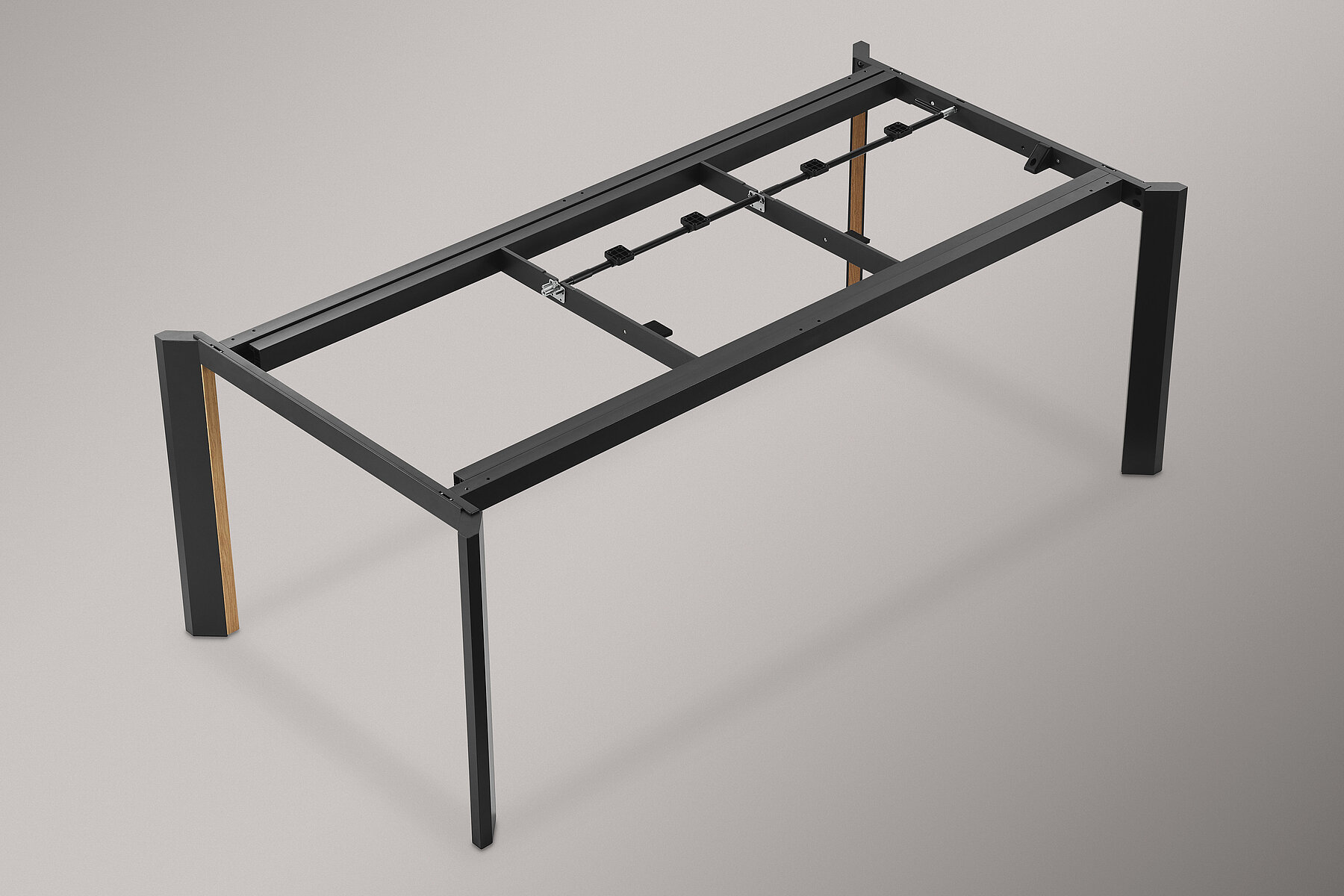

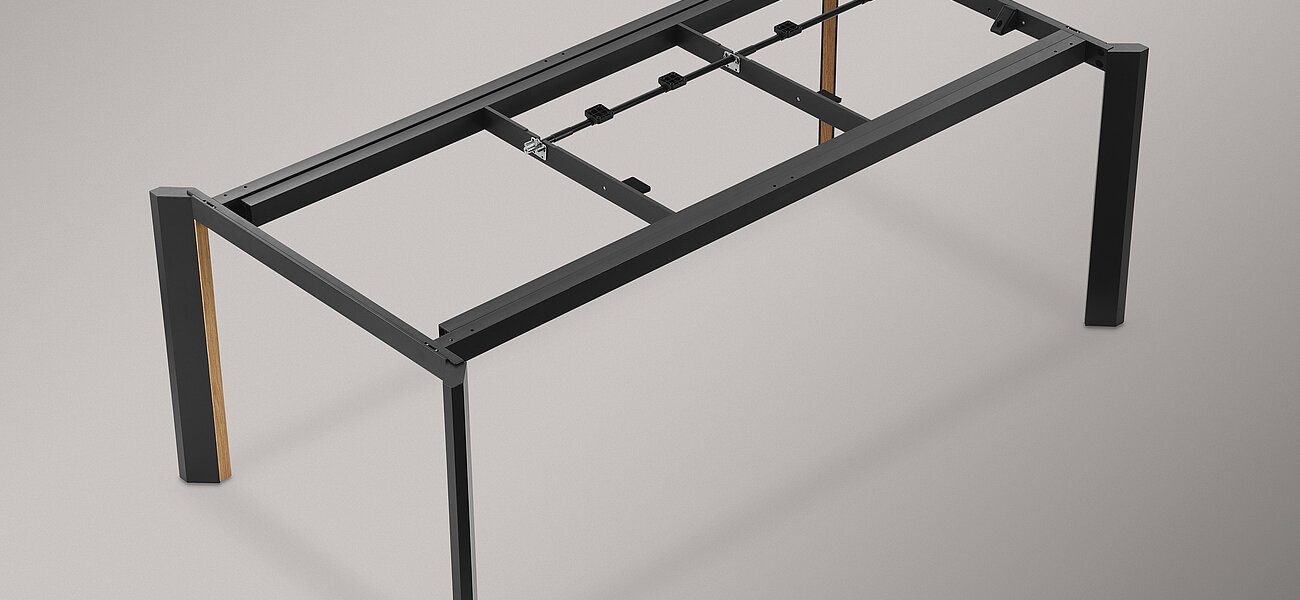

Profile and stability design

Develop your own frame and rack solution. For more information see here.

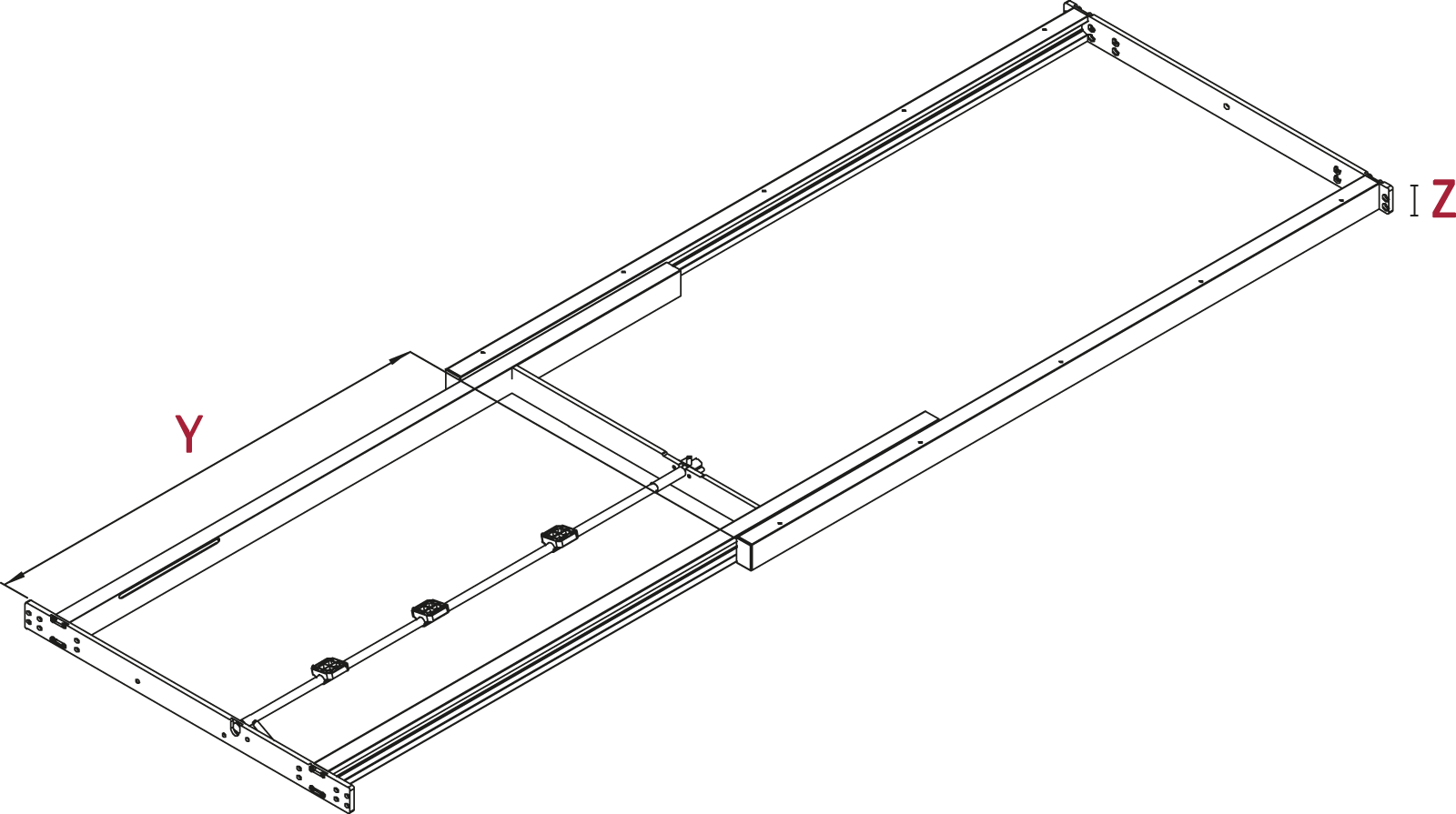

Technical drawings

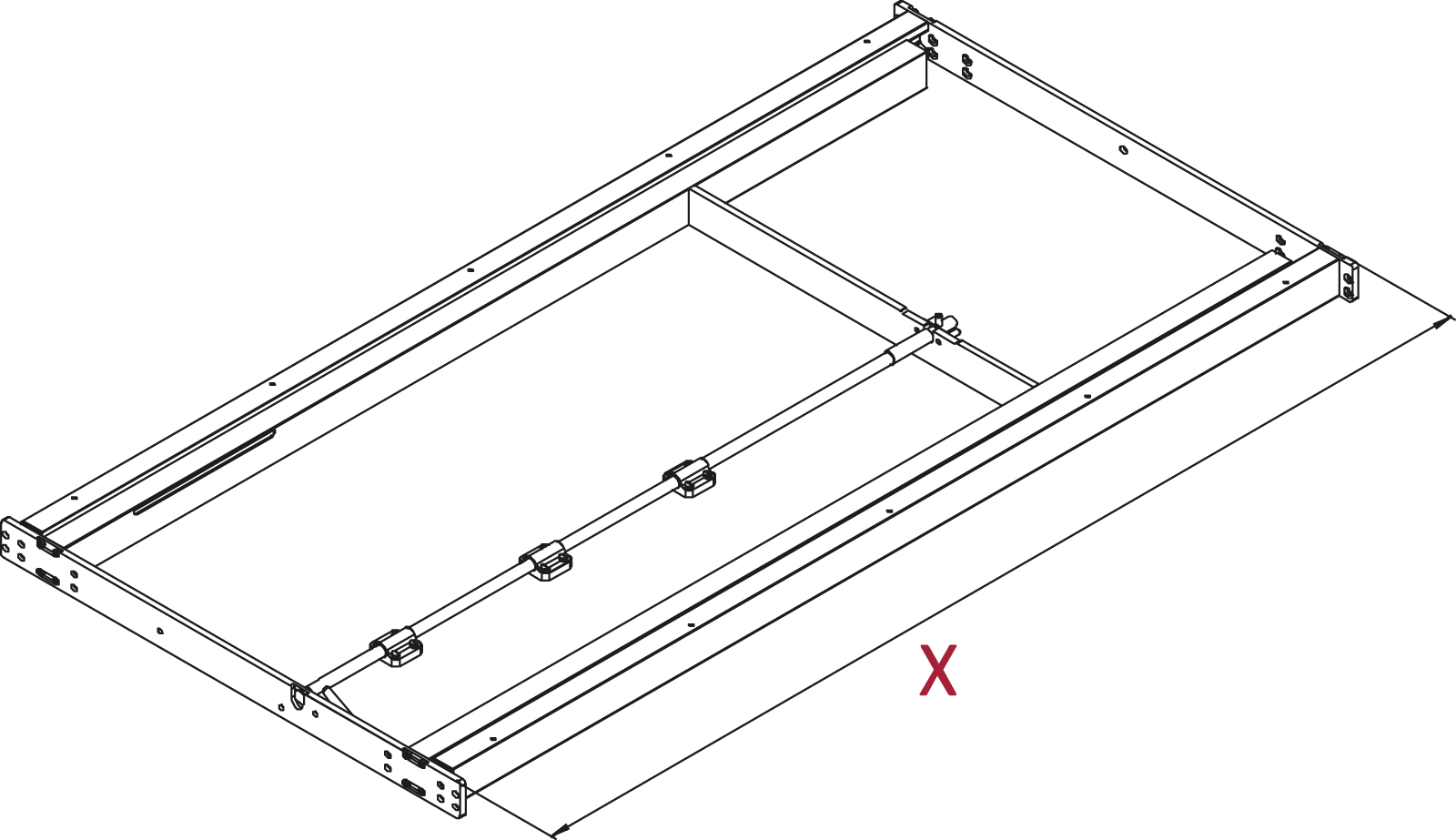

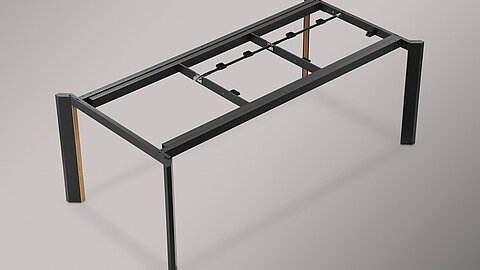

Frame construction | closed

Frame construction | open
