ALU FRONTSLIDE UNIVERSAL 55

For variable table systems and all table top materials

Benefits

Material

Aluminum – available mill-finished or in various anodized colors. The precise profile geometry optimizes the handling and provides a high level of safety.

Attractive table design

Designed for tables with or without function. The low installation height permits a particularly attractive table design.

Load capacities

The ALU 55 UNIVERSAL standard slides are designed for 115 kg under a uniformly applied load and with an installation height of only about 59 mm.

Slide

The ALU 55 UNIVERSAL LIGHT slide system is equipped with high-quality, ball-bearing rollers for particularly smooth, consistent and easy running. It offers you state-of-the-art technology and is particularly abrasion-resistant and impact-resistant.



Outdoor

Outdoor compatible: Also available in stainless steel in 55 mm height.

Brake & Accessories

Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the Screw brake, the FM/FM Stop folding mechanism or, for wooden frames, the FFM flat folding mechanism. The ALU 55 UNIVERSAL slide system is suitable for all table leaf materials and can be combined with all attachment parts.

Technical details

Type1Length2Way of travelInstallation heightInstallation widthLoad capacity
55 Installation height
 xyz
A5UF/1200.A5U1.200 mm800 mmca. 59 mm77 mm115 kg
A5UF/1400.A5U1.400 mm940 mmca. 59 mm77 mm115 kg
A5UF/1600.A5U1.600 mm1.060 mmca. 59 mm77 mm115 kg
A5UF/1800.A5U1.800 mm1.210 mmca. 59 mm77 mm115 kg
A5UF/2000.A5U2.000 mm1.210 mmca. 59 mm77 mm115 kg

1) A5UF = Alu 55 Universal Frontslide | A5UF-B = Alu 55 Universal Frontslide with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

Installation height 55

Extension lengths

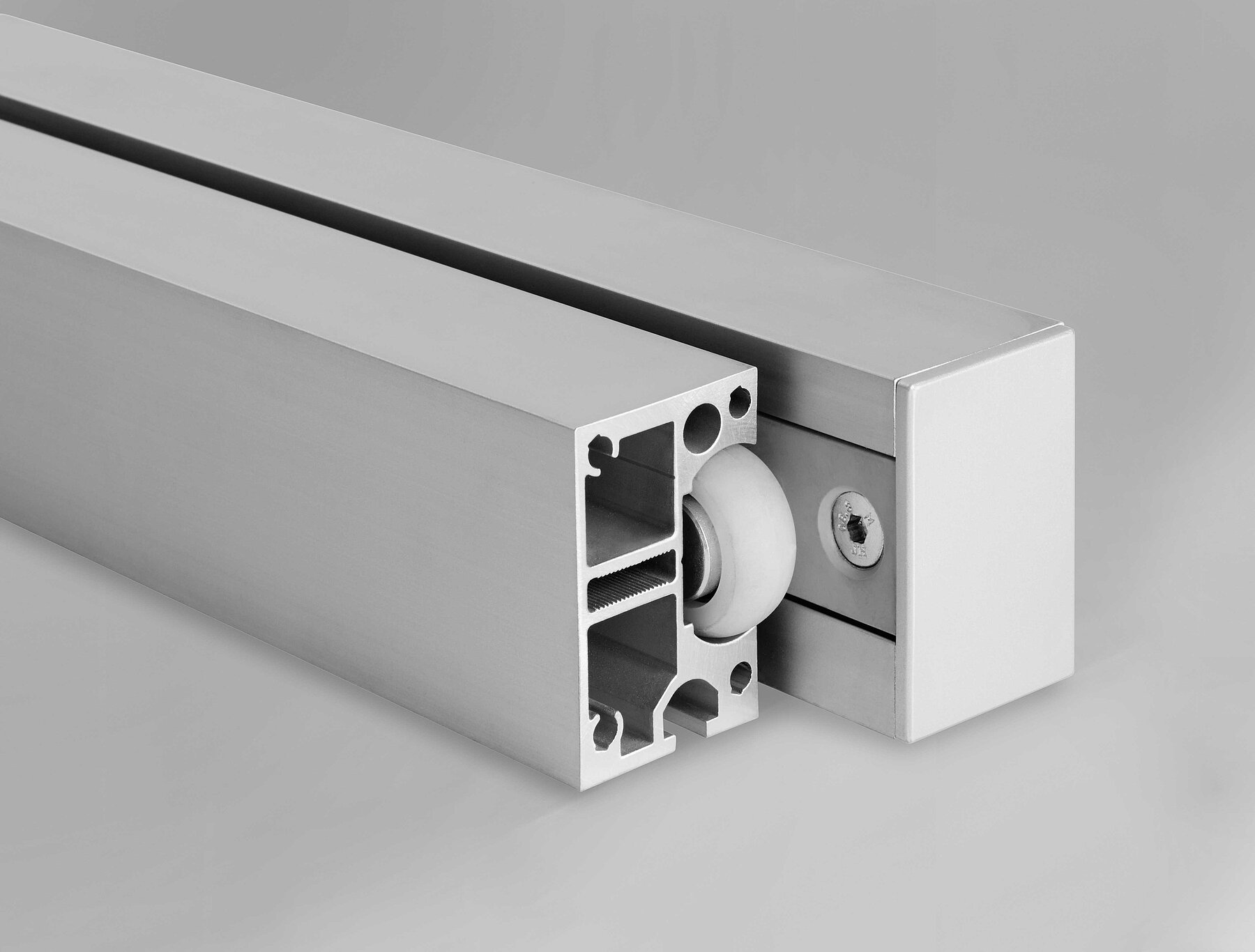

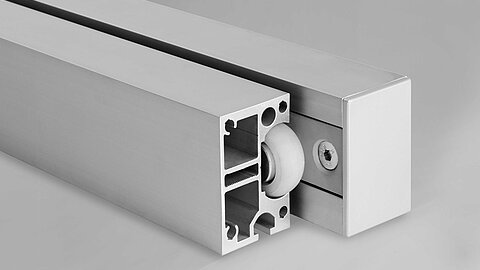

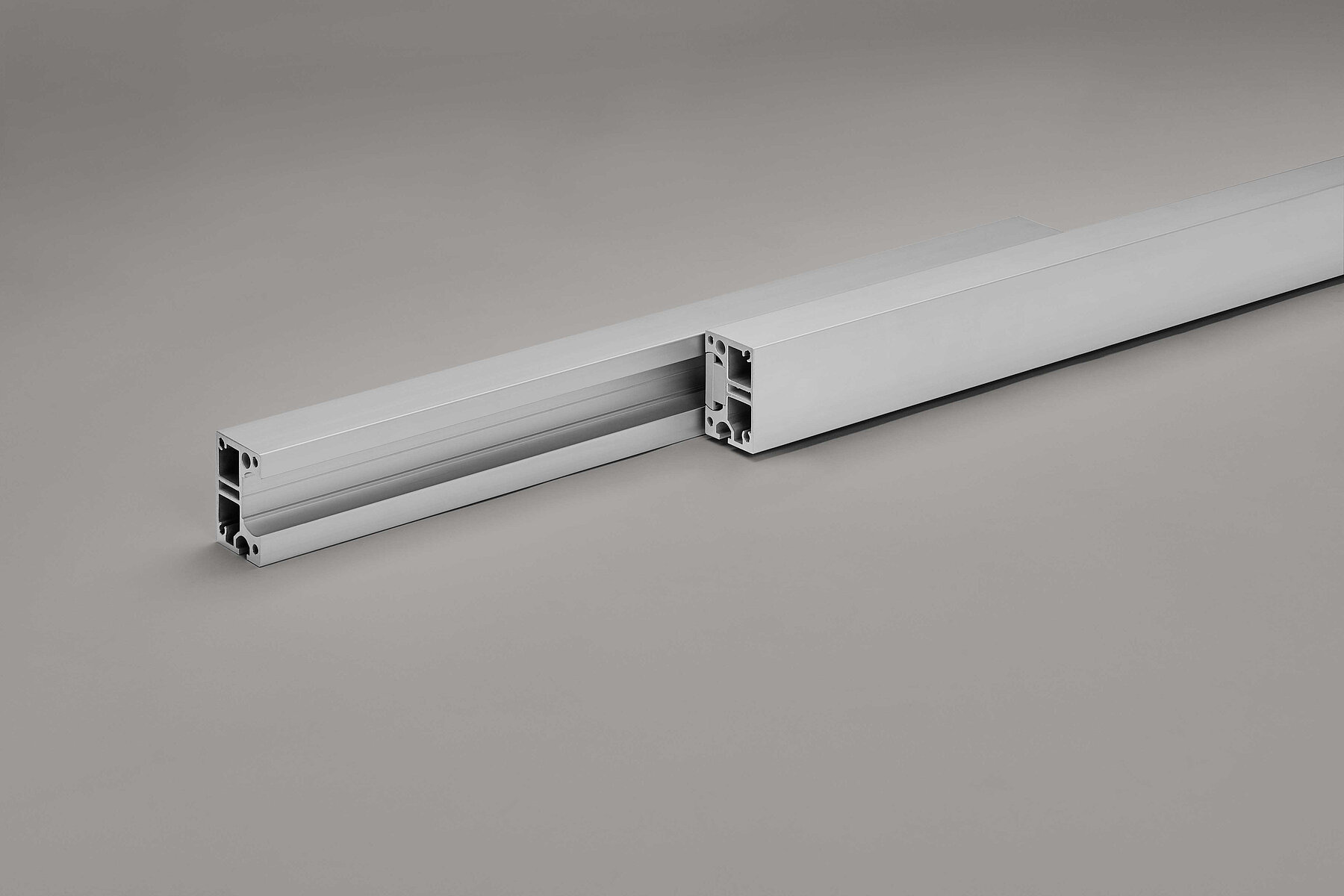

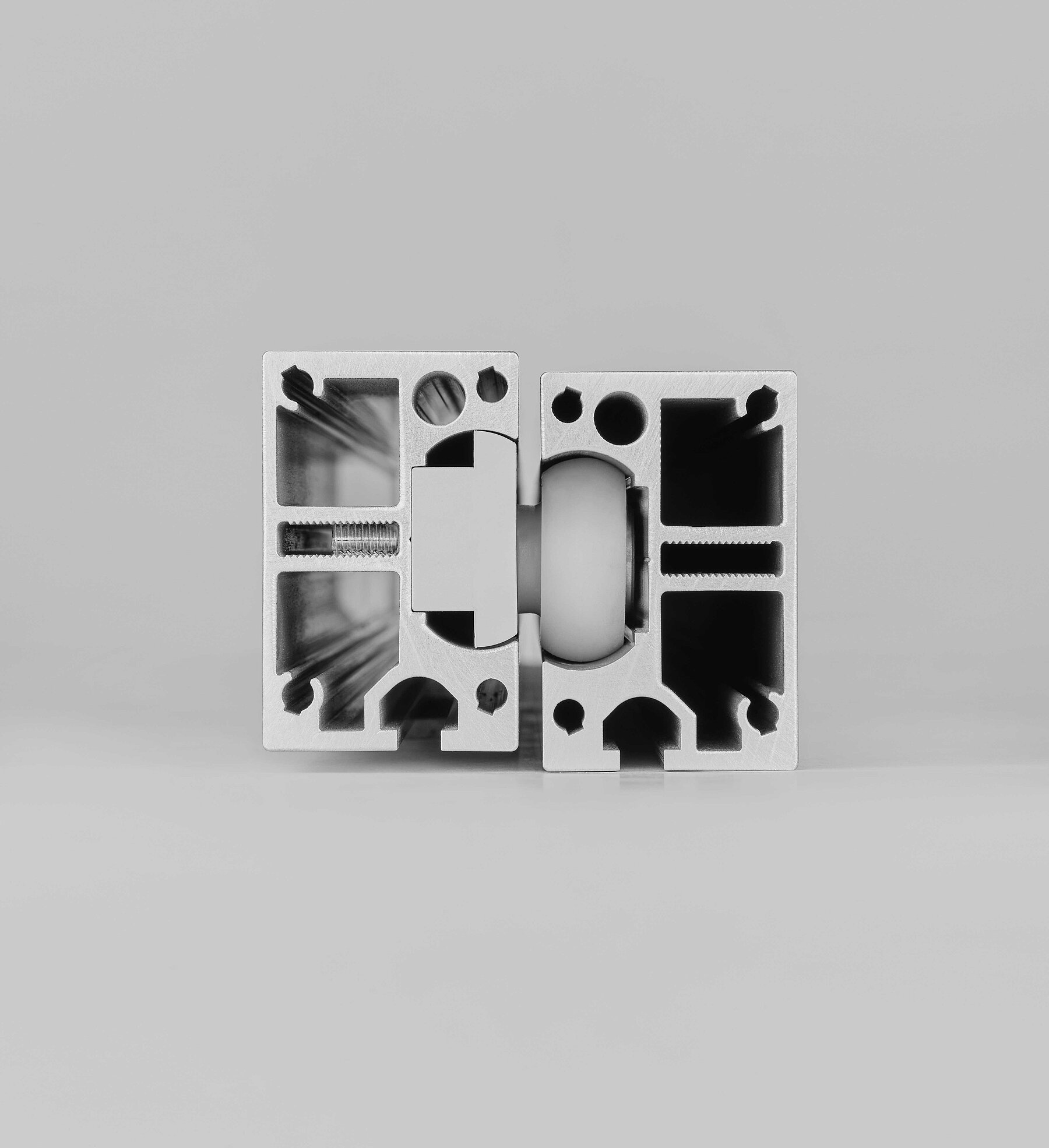

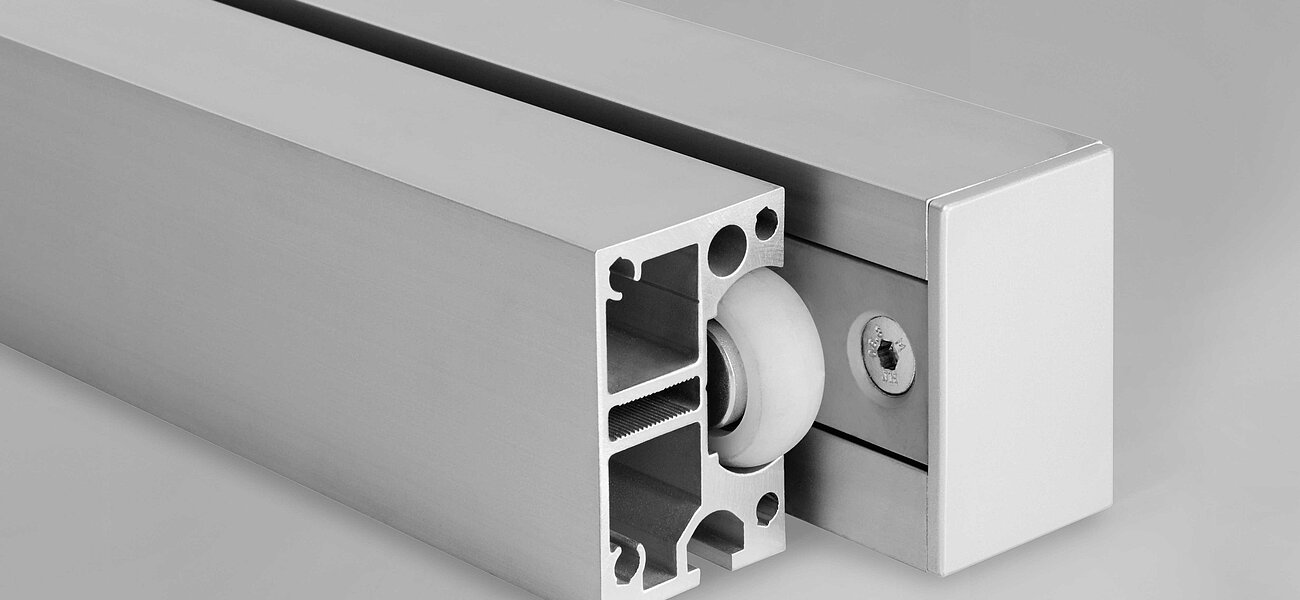

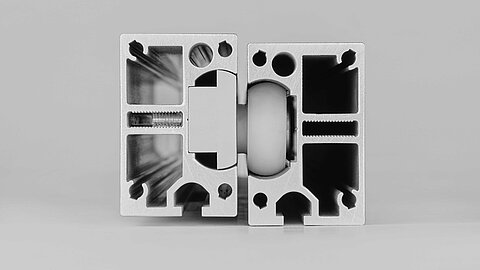

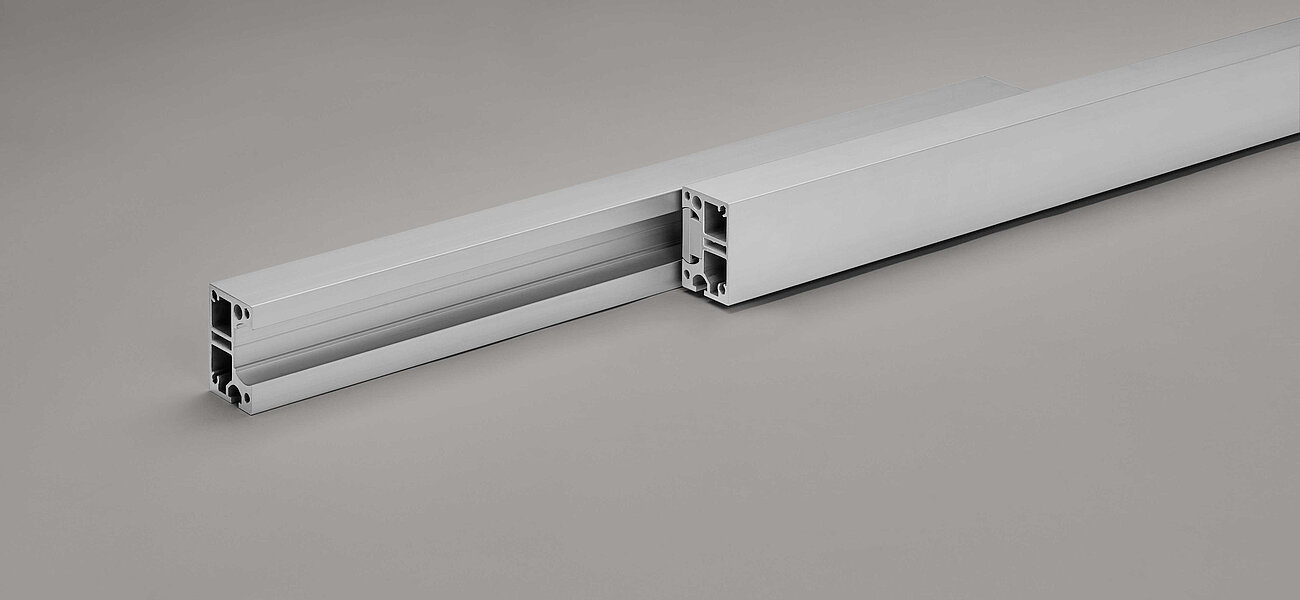

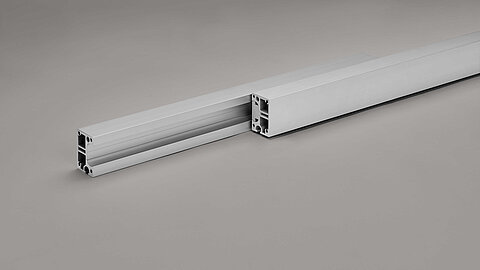

Product images
