ALU COMPACT 77

For tables with underframe or for substructure of split frame tables

Benefits

Material

Aluminum – the slide system is available as a raw or anodized version. Precise profile geometries optimize the handling and ensure a high level of safety.

Load capacities

The ALU 77 standard slides are dimensioned for 115 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Slide

Thanks to its innovative angular design, the KOMBI slide system allows for a height design that can be planned with centimeter precision.

Synchronous design

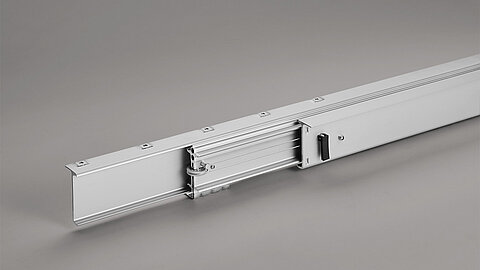

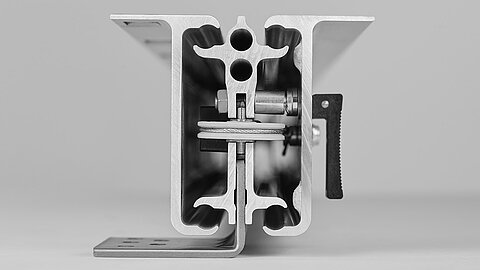

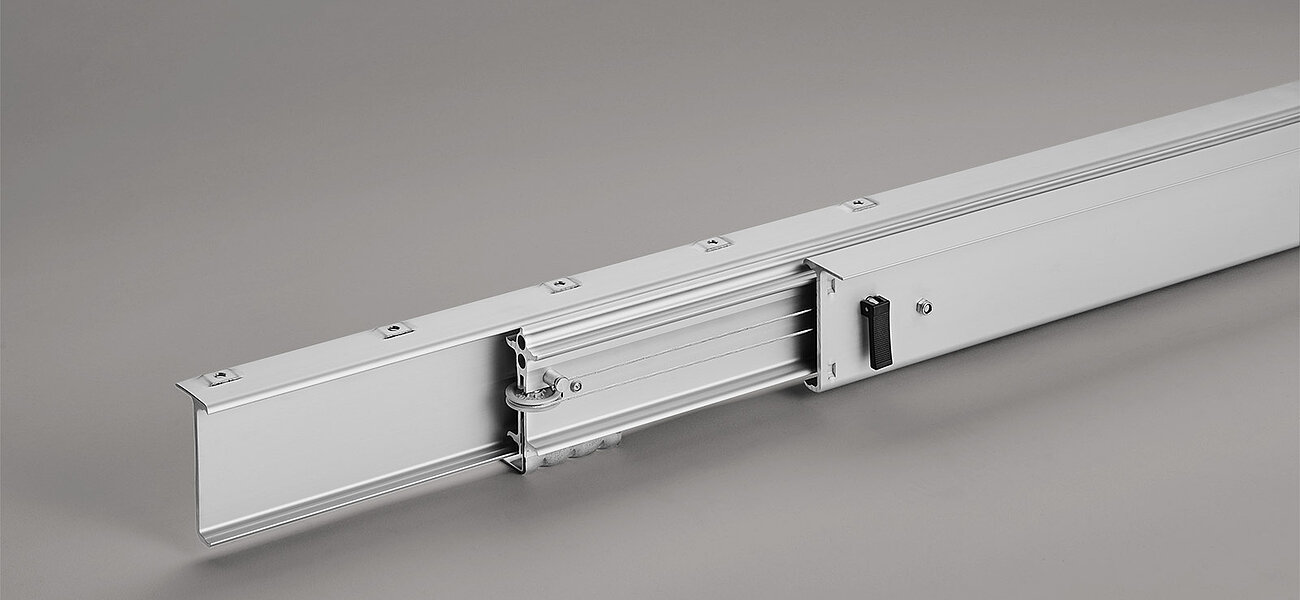

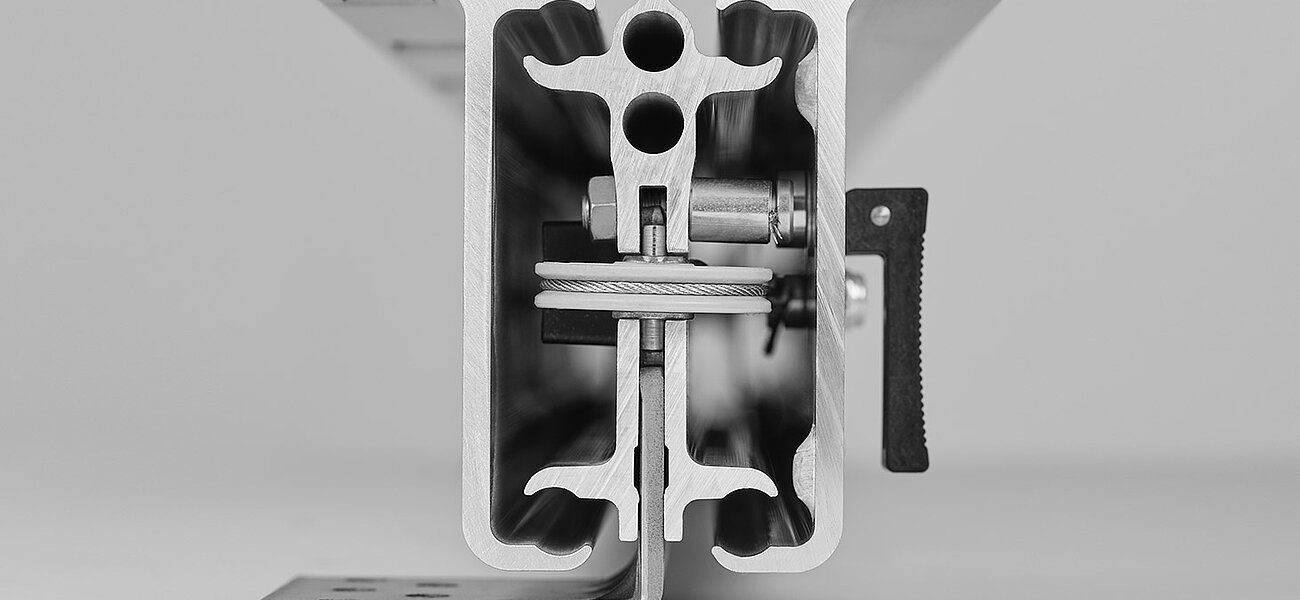

The ALU 77 slide system is available in a synchronous design, a synchronous design with rope brake, a synchronous design with comfort brake or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: Our KOMBI slide system can be combined with matching accessories, such as the FM Folding mechanism or, for wooden frames, the FFM flat folding mechanism. Please contact us.

Technical details

Type¹	Length²	table inserts	Installation height	Load capacity
77 Installation height
	x	y	z
A7/720.A7	720 mm	2 x 500 mm	82 – 104 mm	115 kg
A7/980.A7	980 mm	3 x 500 mm	82 – 104 mm	115 kg
A7/1200.A7	1.200 mm	4 x 500 mm	82 – 104 mm	115 kg
A7/1500.A7	1.500 mm	5 x 500 mm	82 – 104 mm	115 kg
A7/1800.A7	1.800 mm	6 x 500 mm	82 – 104 mm	115 kg

77 Classic Version
	x	y	z
A7/720.A7	720 mm	2 x 500 mm	82 – 104 mm	115 kg
A7/1500.A7	1500 mm	3 x 500 mm	82 – 104 mm	115 kg

1) A7 = Alu 77 | A7-S = synchronous | A7-SB = synchronous with brake | A7-SCB = synchronous with comfort brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.
