Alu Slider Compact 55

For tables with horizontal separation - slider function

Benefits

Material

Aluminium - All profiles are available in press-finished or in various anodized shades.
The rounded cutting edge and the precise profile geometry optimize handling and a high level of safety.
Material processing: anodized.



Load Capacities

The ALU 55 SLIDER COMPACT are designed for 90 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Flexible

The ALU SLIDER COMPACT 55 slide system is suitable for tables with a central leg unit and bracket leg.
The thread positions for connecting the substructure can be selected individually.



Brake & Accessories

Optimize the slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories, such as the FM/FM Stop folding mechanism, for wooden frames, e.g. with the FFM flat folding mechanism. Please contact us.



Installation height

ca. 58 mm



Recommended table length

1.300 – 1.900 mm, closed



Technical details

Type1Length2Way of travelInstallation heightLoad capacity
58 Installation height
 xyz

ACF55-S/1300.AC

1.300 mm1.170 mm58 mm90 kg

ACF55-S/1300.AC

1.600 mm1.340 mm58 mm90 kg

ACF55-S/1900.AC

1.900 mm1.600 mm58 mm90 kg

1) ACF55-S = Slider Compact | ACF55-SB = Synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

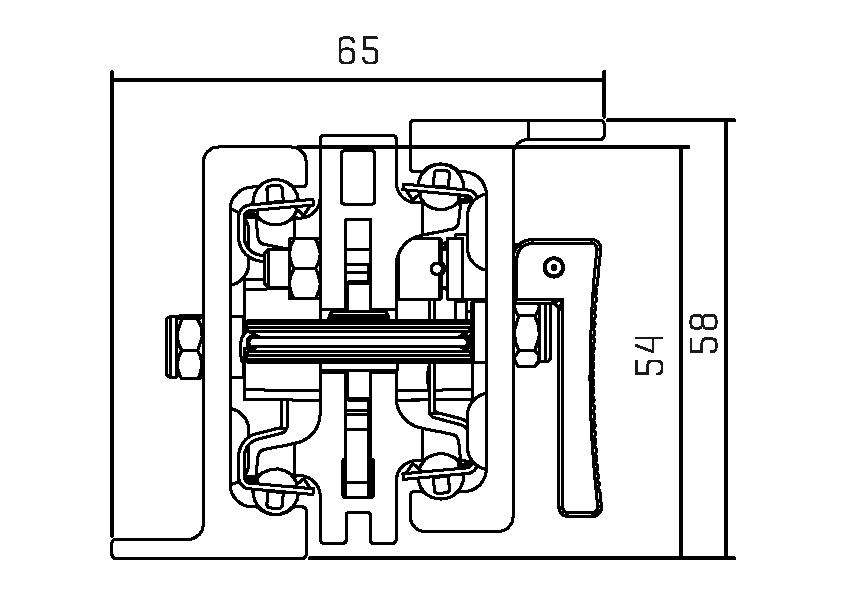

Installation height

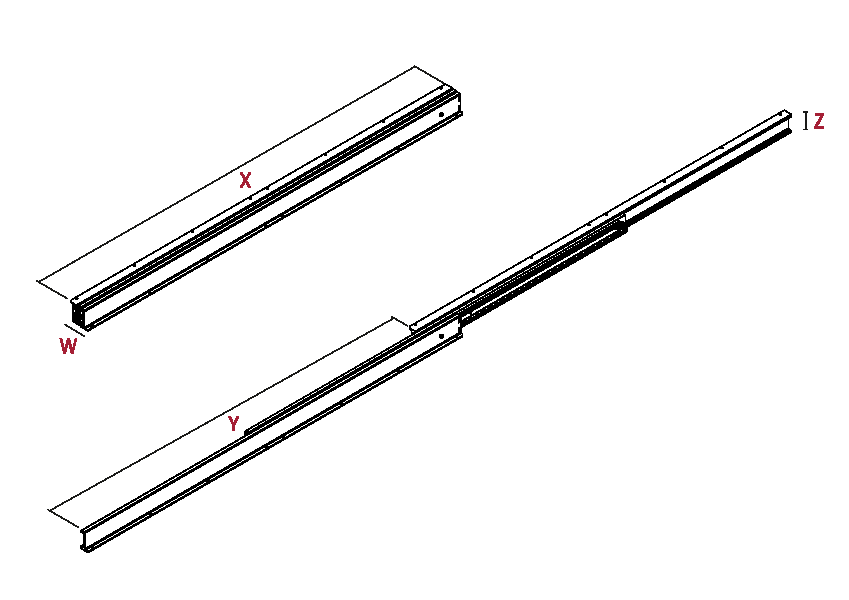

Way of travel

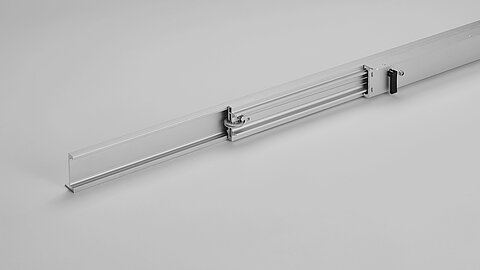

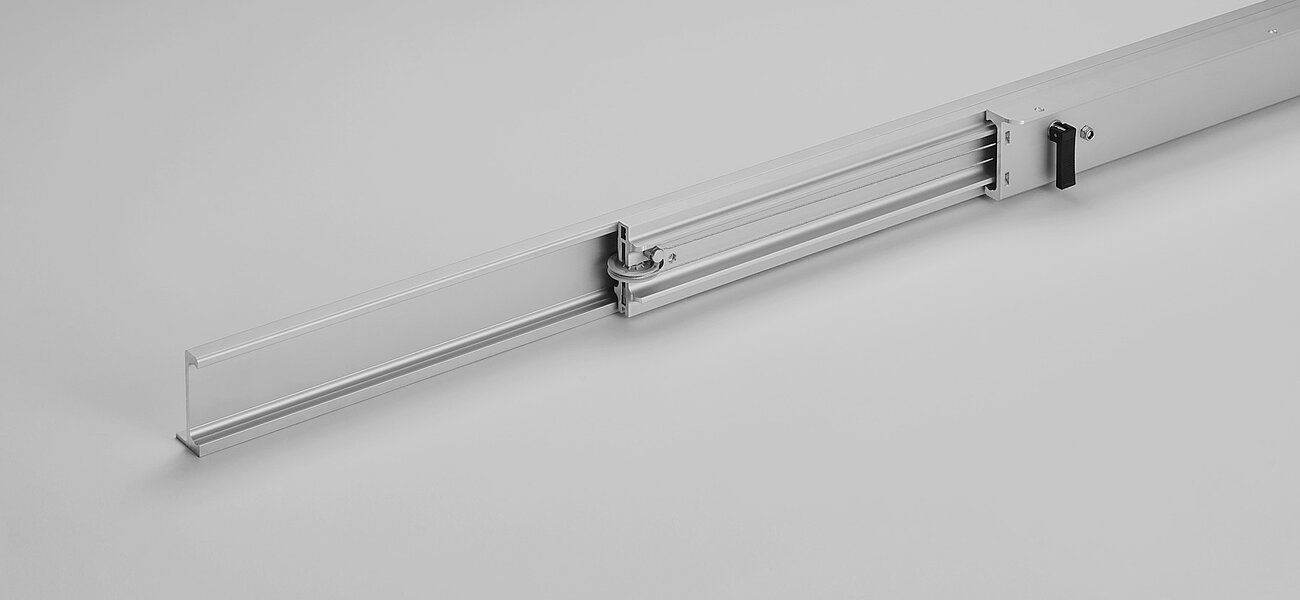

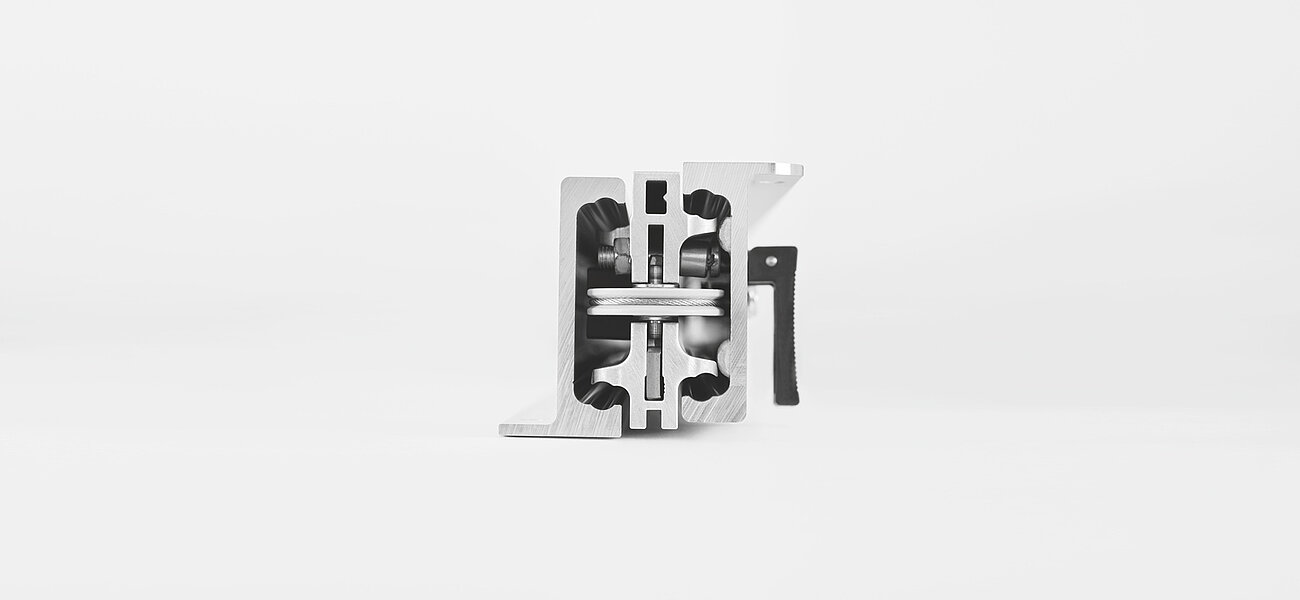

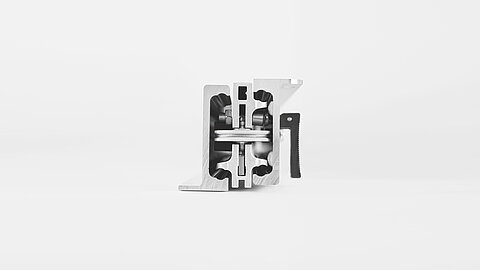

Product images
