ALU/STEEL BASIC ADVANCED 37

For closed frame construction

Benefits

Material

Steel and aluminum - the combination of outer steel profile and inner aluminum profile ensures a particularly high load capacity and a silent operation. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Consistently Equal Extension Lengths

The slide system BASIC ADVANCED provides consistently equal extension lengths, both in a closed and opened condition.

Load Capacities

The BASIC ADVANCED standard slides are dimensioned for 60 kg and 90 kg under uniformly applied loads. All specifications are always dependent on the material thickness and the tensile and flexural strength.



Synchronous Design

The BASIC ADVANCED slide system is also available in a synchronous design, synchronous design with rope brake, or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: Our BASIC ADVANCED slide system can be combined with the FM Folding mechanism or, for wooden frames, with the FFM flat folding mechanism. Please contact us.



Technical details

Type1Length2Table insertsInstallation heightLoad capacity
37 Installation height | Material 1,75 mm
 xyz
BA/600.3600 mm1 x 400 mm40 mm60 kg
BA/700.3700 mm1 x 500 mm40 mm60 kg

1) BA = Basic advanced | BA-S = synchronous | BA-SB = synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

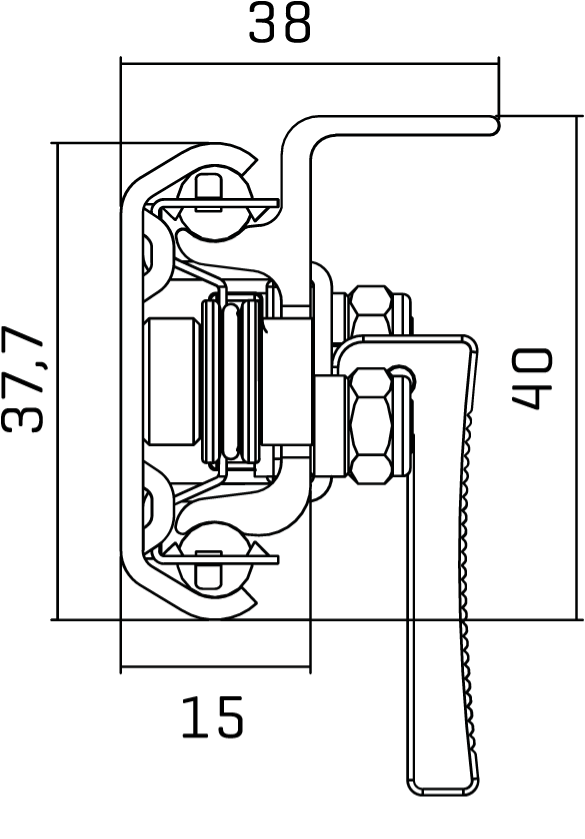

Installation height 37

Extension lengths
