ALU/STEEL KOMBI 77

For tables with underframe or for substructure of split frame tables

Benefits

Material

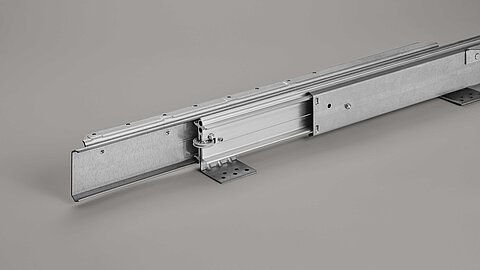

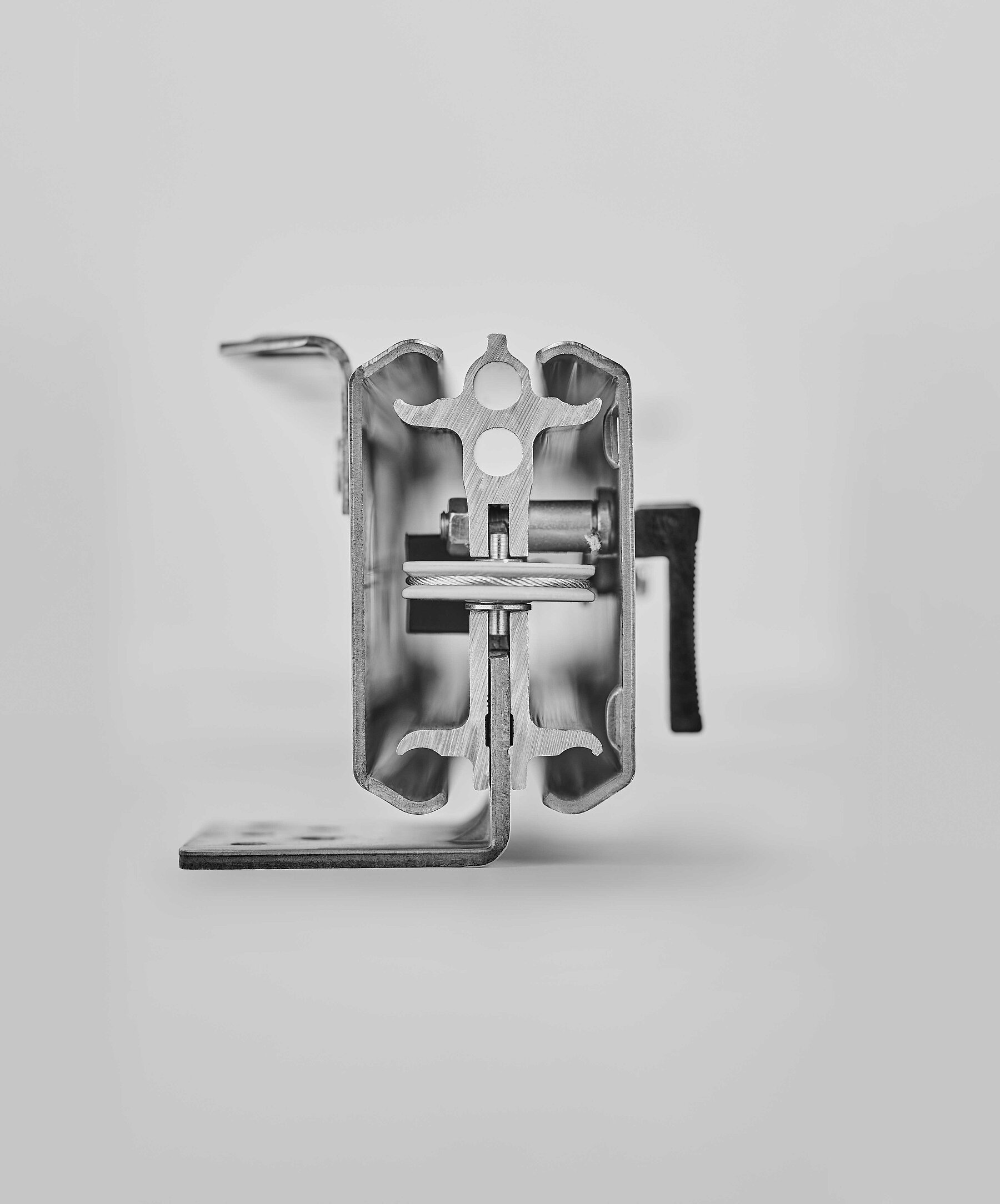

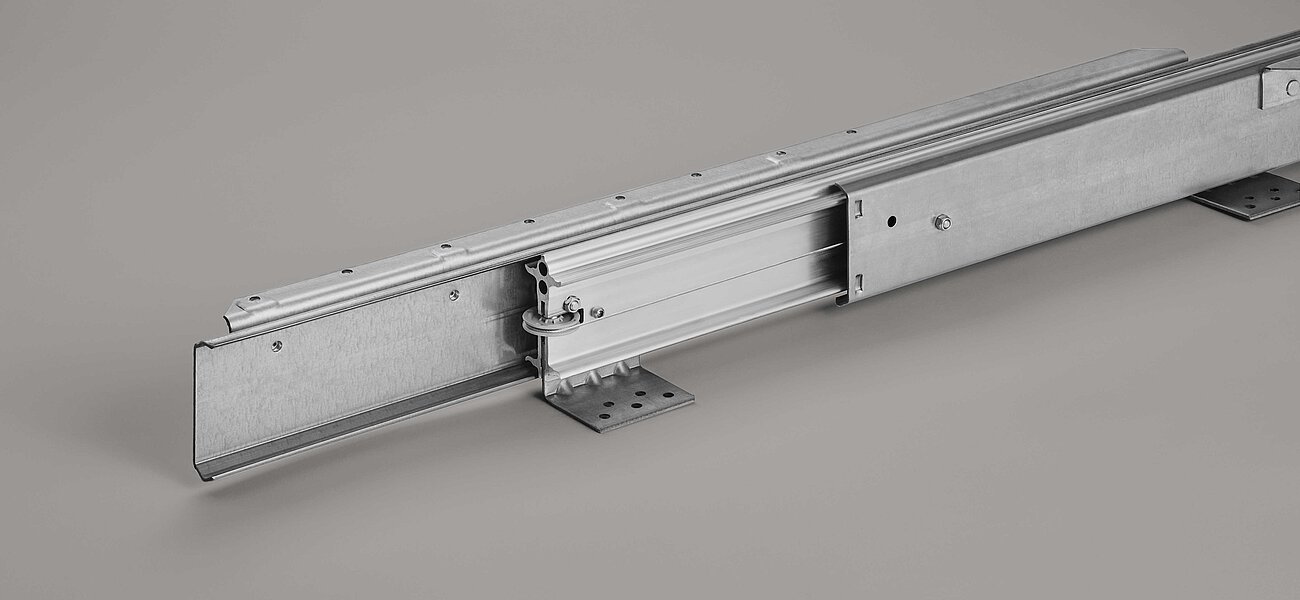

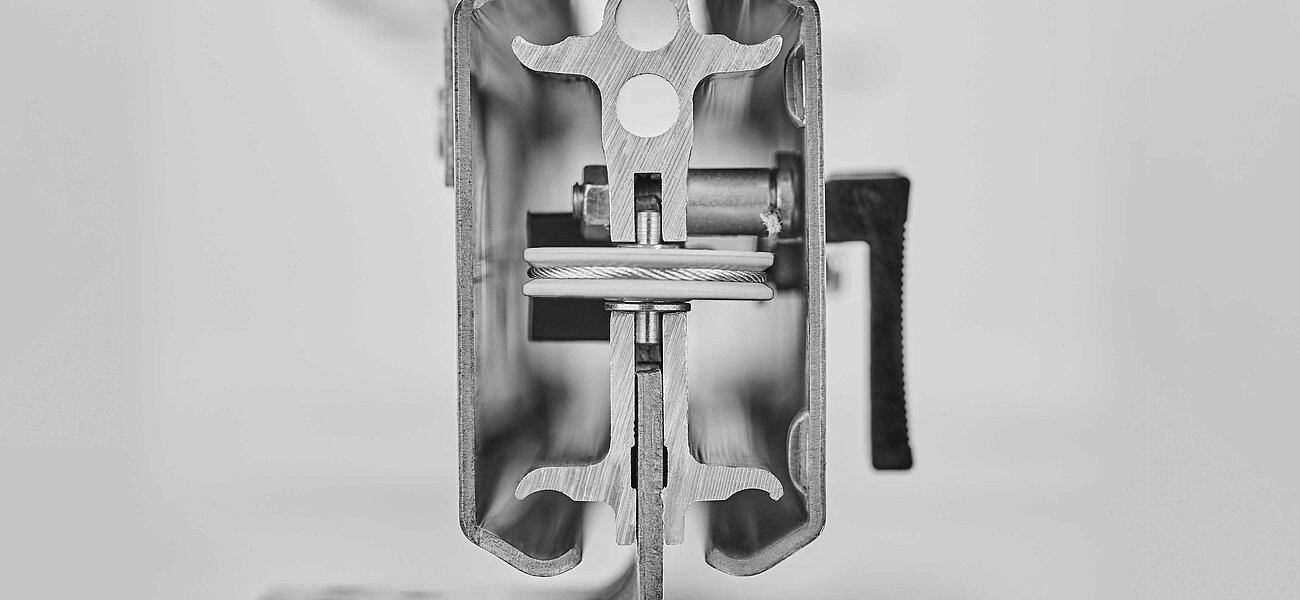

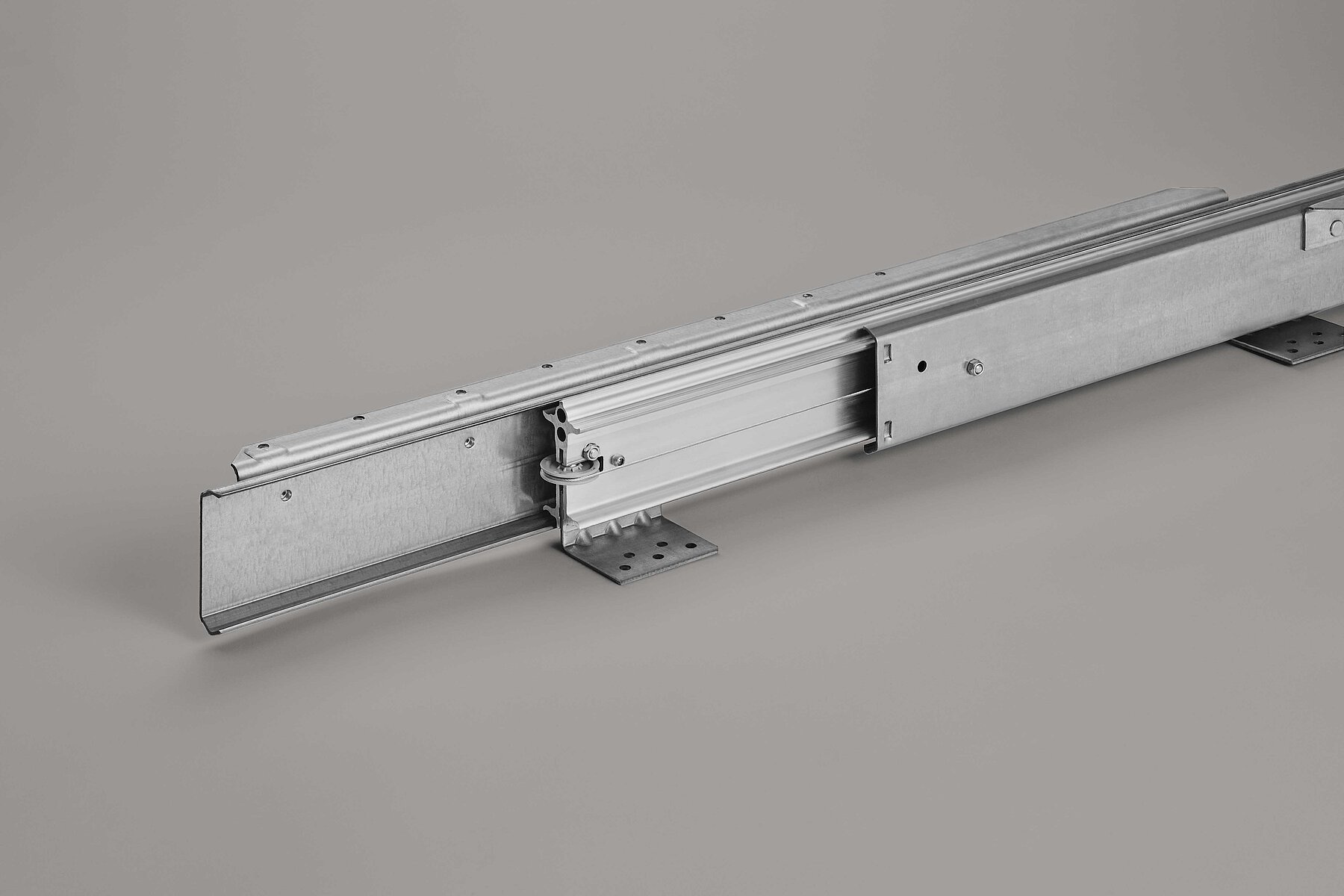

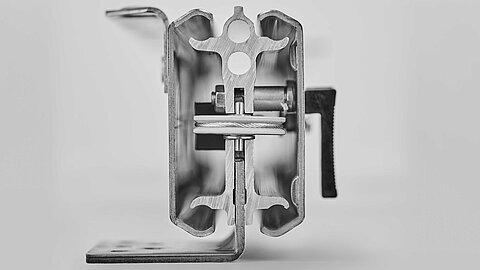

Steel and aluminum – the one-piece middle profile is made of aluminum, the outer profiles are made of high-quality steel. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.



Load capacities

The ALU/STEEL KOMBI 77 standard slides are dimensioned for 115 kg under a uniformly applied load. For further load requirements see Kombi 37 or Kombi 47. A deviating material request is possible for Alu 77. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Slide

Thanks to its innovative angular design, the height of the KOMBI slide system can be planned with centimeter precision.

Synchronous design

The KOMBI 47 slide system is available in a synchronous design, a synchronous design with rope brake, synchronous design with comfort brake, or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: Our KOMBI slide system can be combined with matching accessories, such as the FM Folding mechanism or, for wooden frames, the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2table insertsInstallation heightLoad capacity
77 Installation height | Material 2 mm
 xyz
K/720.7720 mm2 x 500 mm82 – 114 mm115 kg
K/980.7980 mm3 x 500 mm82 – 114 mm115 kg
K/1200.71.200 mm4 x 500 mm82 – 114 mm115 kg
K/1500.71.500 mm5 x 500 mm82 – 114 mm115 kg
K/1800.71.800 mm6 x 500 mm82 – 114 mm115 kg

1) K = Kombi | K-S = synchronous | K-SB = synchronous with brake | K-SCB = synchronous with comfort brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.



77 | Installation height

82 mm87 mm93 mm95 mm104 mm



Technical drawings

Different installation heights possible
