ALU/STEEL SLIDER 47

For tables with slider function

Benefits

Material

Steel and aluminum – steel is available in various powder coating colors, aluminum raw. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety. Material processing: steel powder coated, aluminum raw.

Load capacities

The SLIDER 47 standard slides are dimensioned for 90 kg under a uniformly applied load. All specifications always depend on the material thickness and the tensile and flexural strength.

Brake & Accessories

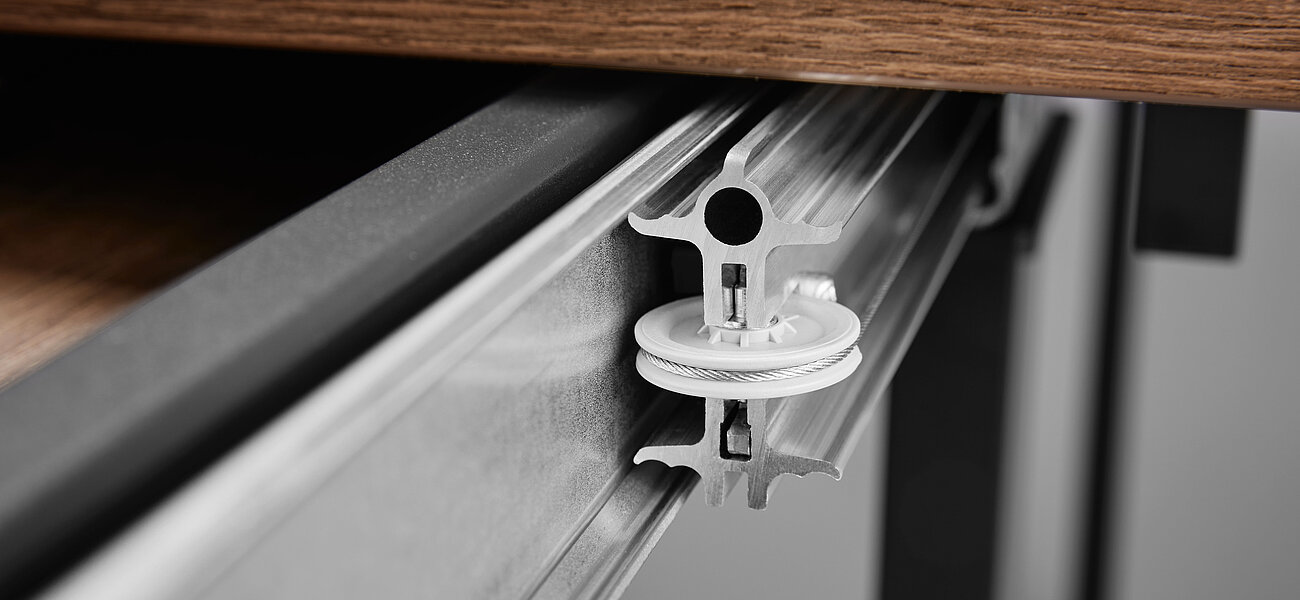

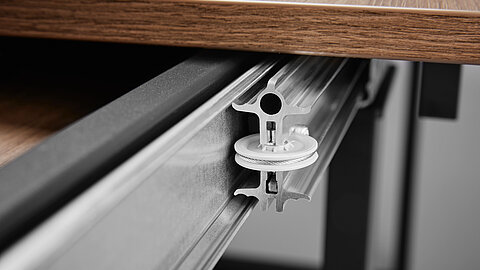

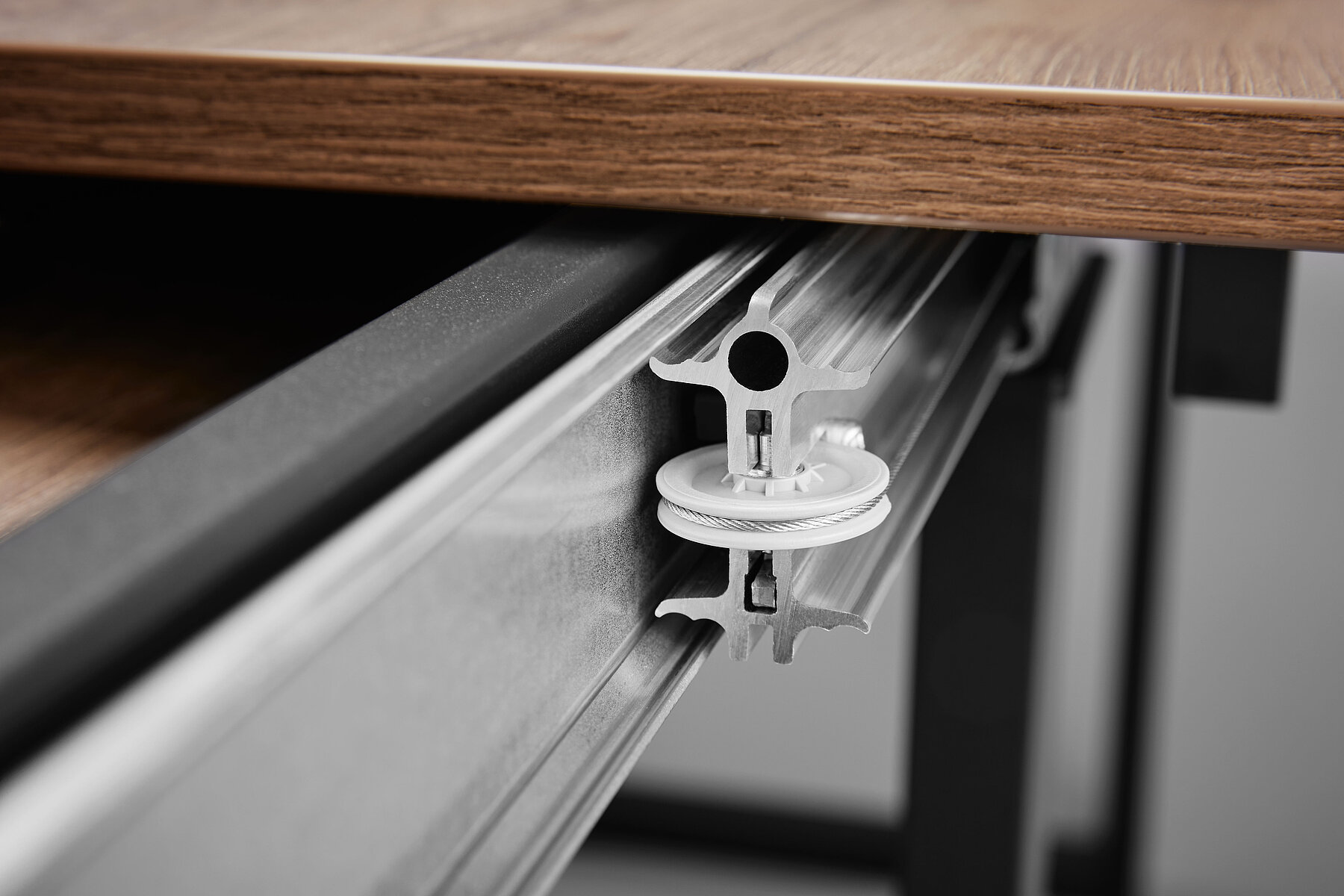

Optimize the SLIDER 47 slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with FFM flat folding mechanism. Please contact us.



Installation height

about 54 mm

Recommended table length

1,200 – 2,400 mm, closed

Insert sizes

1 x 500 mm / 1 x 800 mm / 2 x 500 mm / 1 x 1,000 mm

Profile and stability design

Develop your own frame and rack solution. For more information see here.

Technical drawings

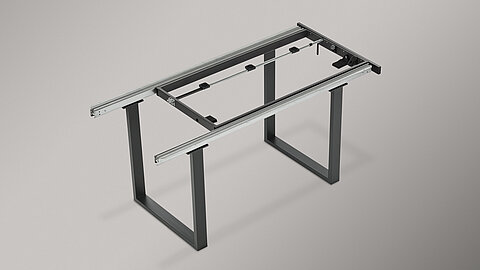

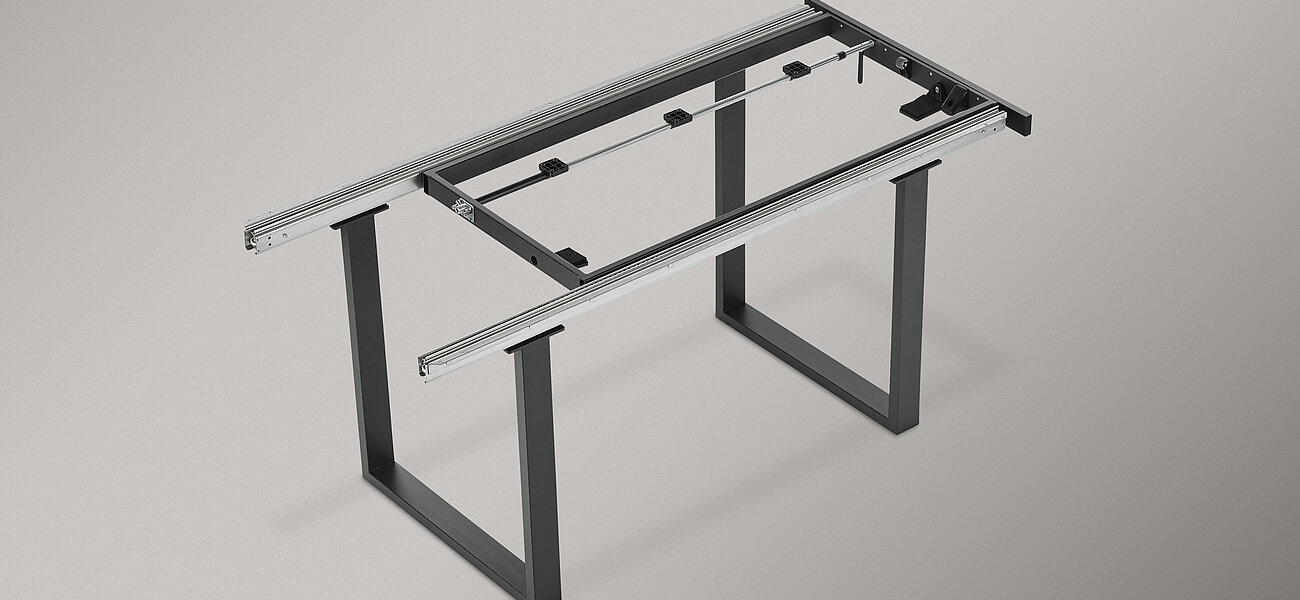

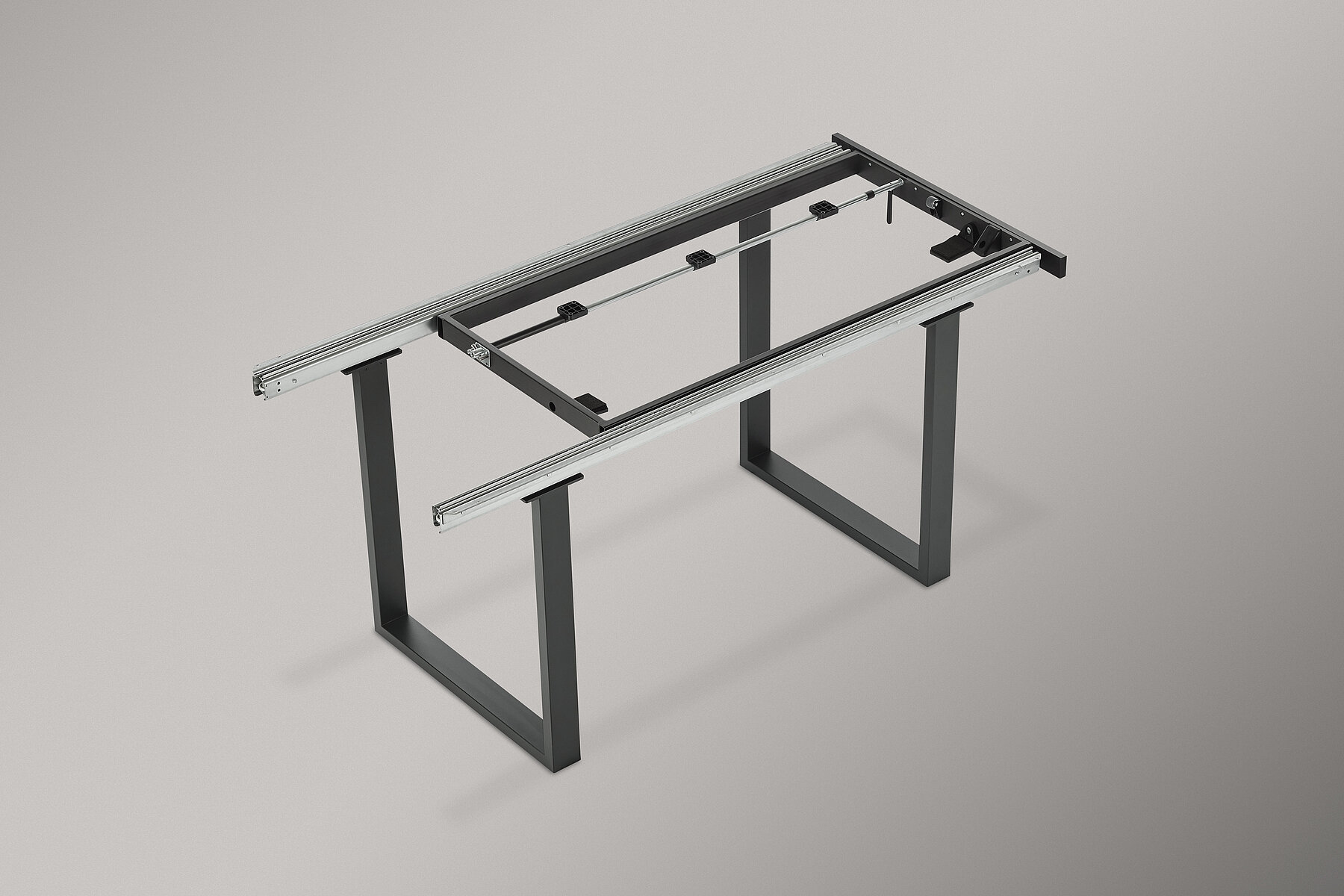

Frame construction | closed

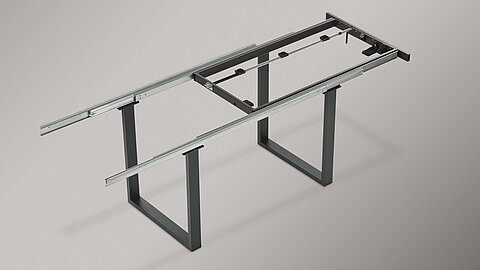

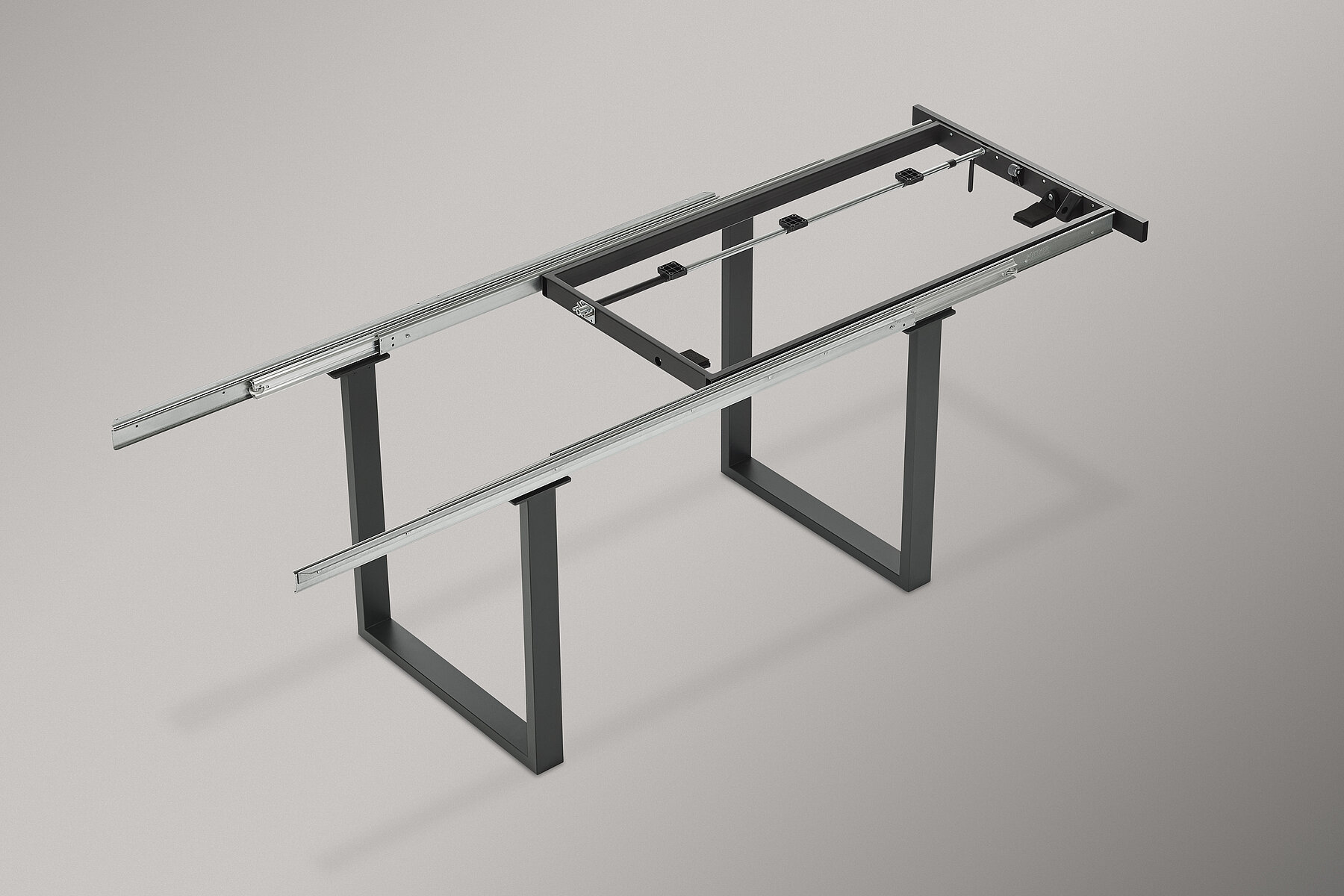

Frame construction | open

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

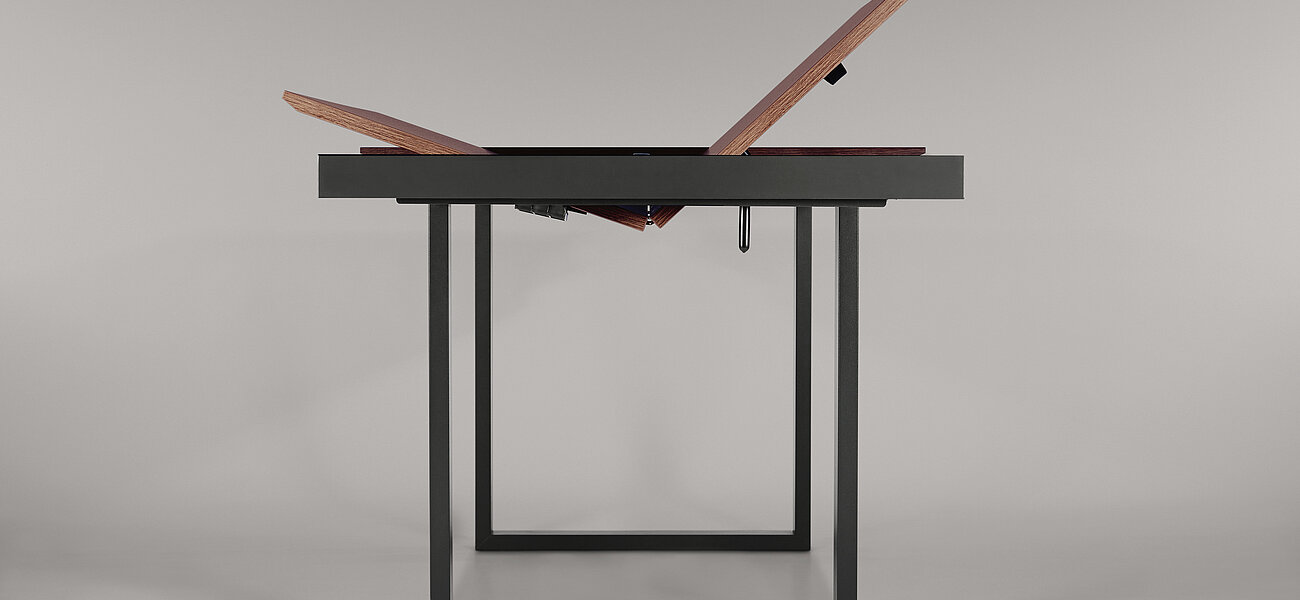

Product images
